SL-LCD-10A-NT-1 This item is no longer available.
10" LED Monitor 800 x 600 Resolution, 400 NITS Brightness, IP65 / NEMA4 Front Panel, Black
Industrial Display
- Screen Size (inches): 10"
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 4 : 3
- Native Display Resolution: 800 x 600
- Brightness (nits): 400
- Ports: VGA Port In, DVI-I In
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
Related Products
Check items to add to the cart or
- Display
- Screen Size (inches): 10
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 4 : 3
- Native Display Resolution: 800 x 600
- Brightness (nits): 400
- Screen Refresh Rate: 60Hz
- Display Area (H): 211.20mm
- Display Area (V): 158.40mm
- Aspect Ratio: 4 : 3
- DisplayColors: 256 K
- Contrast Ratio: 700:1
- Backlight: LED
- Viewing Angle(U) : 60
- Viewing Angle(D) : 60
- Viewing Angle(L) : 50
- Viewing Angle(R) : 50
- Connectivity
- VGA Port In: 1
- DVI-I In: 1
- Mounting Options
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

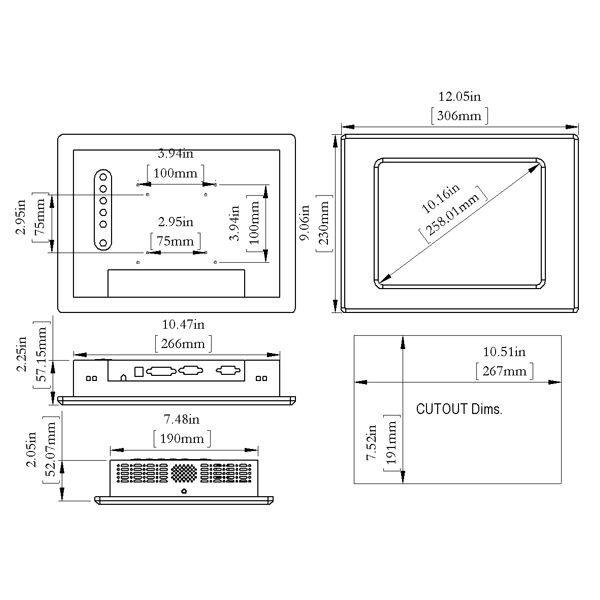

- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):
- Physical
- Width:
- Height:
- Depth:
- Depth (Inches): Click Available Downloads Tab
- Unboxed Weight: 5.3lbs
- Shipping Weight: 25lbs
- Environmental
- MTBF: 50000hours
- Maximum Operating Temperature: 70C
- High Humidity: 90%
- Low Humidity: 8%
- Storage Temp (High): 80C
- Storage Temp (Low): -30C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 8%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 8.3Watts
- Compliance of Component
- CE
- RoHS
- FCC
- Warranty
- Warranty: 1 year
- Other
- Features:
Industrial Display
- Screen Size: 10"
- Touch Type: None
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 800 x 600
- Brightness (nits): 400
