SL-LCD-10A-NT-2

10" LED Monitor 800 x 600 Resolution, 400 NITS Brightness, IP65 / NEMA4 Front Panel, Black

Industrial Display

Screen Size (inches): 10"
Front Panel Rating: IP65 / NEMA4
Aspect Ratio: 4 : 3
Native Display Resolution: 800 x 600
Brightness (nits): 400
Ports: VGA Port In, DVI-I In, HDMI In
Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

Display
Screen Size (inches): 10
Front Panel Rating: IP65 / NEMA4
Aspect Ratio: 4 : 3
Native Display Resolution: 800 x 600
Brightness (nits): 400
Screen Refresh Rate: 60Hz
Display Area (H): 211.20mm
Display Area (V): 158.40mm
Aspect Ratio: 4 : 3
DisplayColors: 256 K
Contrast Ratio: 700:1
Backlight: LED
Viewing Angle(U) : 60
Viewing Angle(D) : 60
Viewing Angle(L) : 50
Viewing Angle(R) : 50
Connectivity
VGA Port In: 1
DVI-I In: 1
HDMI In: 1
Mounting Options
Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

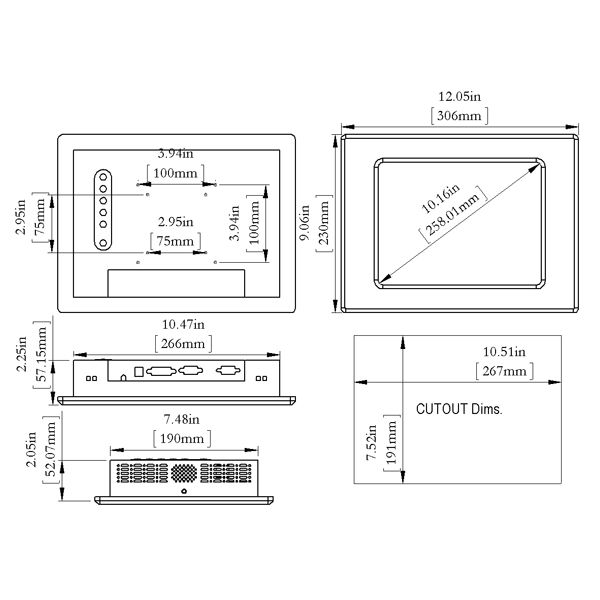

Suggested Cut-Out Dimension (Width): Click Available Downloads Tab
Suggested Cut-Out Dimension (Height): Click Available Downloads Tab
Physical
Width: Click Available Downloads Tab
Height: Click Available Downloads Tab
Depth: Click Available Downloads Tab
Depth (Inches): Click Available Downloads Tab
Unboxed Weight: 5.3lbs
Shipping Weight: 25lbs
Environmental
MTBF: 50000hours
Maximum Operating Temperature: 70C
High Humidity: 90%
Low Humidity: 8%
Storage Temp (High): 80C
Storage Temp (Low): -30C
Storage Humidity (High): 90%
Storage Humidity (Low): 8%
Power
Power Supply: AC 100~240V/12V DC
Power Consumption (on): 8.3Watts
Compliance of Component
CE
RoHS
FCC
Warranty
Warranty: 1 year
Other
Features:
Industrial Display
- Screen Size: 10"
- Touch Type: None
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 800 x 600
- Brightness (nits): 400
