SL-LCD-10A-RTOUCH-WV

Name: SL-LCD-10A-RTOUCH-WV
SKU: SL-LCD-10A-RTOUCH-WV
Price: 495.00 USD

10" LED Monitor with 5-Wire Resistive Touch Screen - 800 x 600 Resolution, 400 NITS Brightness, IP65 Front Panel, Black

Wide Voltage Input (9-36VDC)

Industrial Display

Screen Size (inches): 10"
Touch Type: 5-Wire Resistive
Front Panel Rating: IP65
Aspect Ratio: 4 : 3
Native Display Resolution: 800 x 600
Brightness (nits): 400
Ports: HDMI In, Display Port In
Mounting Options: VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately

Display
Screen Size (inches): 10
Touch Type: 5-Wire Resistive
Front Panel Rating: IP65
Aspect Ratio: 4 : 3
Native Display Resolution: 800 x 600
Brightness (nits): 400
Screen Refresh Rate: 60Hz
Display Area (H): 211.20mm
Display Area (V): 158.40mm
Aspect Ratio: 4 : 3
DisplayColors: 256 K
Contrast Ratio: 700:1
Backlight: LED
Viewing Angle(U) : 60
Viewing Angle(D) : 60
Viewing Angle(L) : 50
Viewing Angle(R) : 50
Connectivity
HDMI In: 1
Display Port In: 1
Touchscreen Interface USB Port (Front): 1
Mounting Options
Mounting Options: VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately

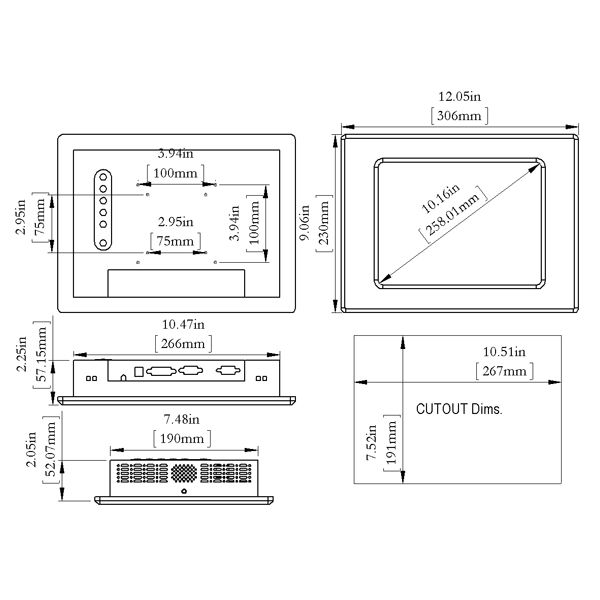

Suggested Cut-Out Dimension (Width):
Suggested Cut-Out Dimension (Height):
Physical
Width:
Height:
Depth:
Depth (Inches): Click Available Downloads Tab
Unboxed Weight: 6lbs
Shipping Weight: 25lbs
Environmental
MTBF: 50000hours
Maximum Operating Temperature: 80C
High Humidity: 90%
Low Humidity: 8%
Storage Temp (High): 80C
Storage Temp (Low): -30C
Storage Humidity (High): 90%
Storage Humidity (Low): 8%
Power
Power Supply: AC 100~240V/12V DC
Power Consumption (on): 8.3Watts
Compliance of Component
CE
CCC
Warranty
Warranty: 1 year
Other
Built-in Chassis Power Supply: Wide Voltage Input (9-36VDC)
Features:
Industrial Display
- Screen Size: 10"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65
- Native Display Resolution: 800 x 600
- Brightness (nits): 400
- Wide Voltage Input (9-36VDC)
