SL-LCD-10AW-PCAPTOUCH-WV

10" LED Monitor with Multi-Touch Projected Capacitive Touch Screen - 1280 x 800 Resolution, 400 NITS Brightness, IP65 / NEMA4 Front Panel, Black

Industrial Display

Screen Size (inches): 10"
Touch Type: Multi-Touch Projected Capacitive
Front Panel Rating: IP65 / NEMA4
Aspect Ratio: 16 : 9
Native Display Resolution: 1280 x 800
Brightness (nits): 400

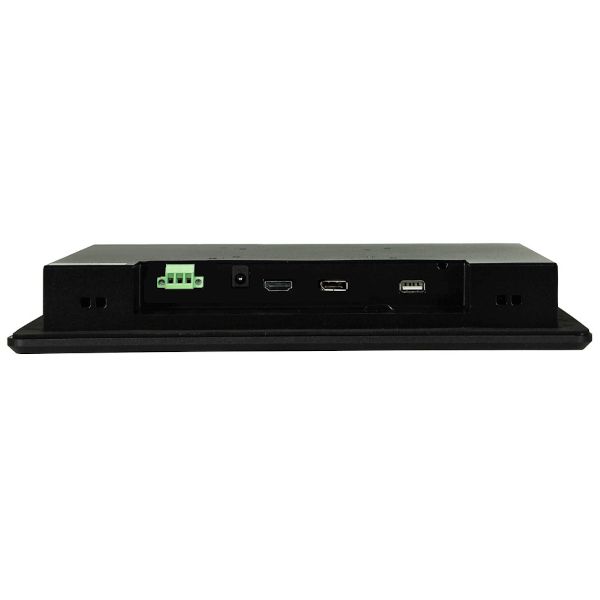

Ports: HDMI In, Display Port In
Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

Display
Screen Size (inches): 10
Touch Type: Multi-Touch Projected Capacitive
Front Panel Rating: IP65 / NEMA4
Aspect Ratio: 16 : 9
Native Display Resolution: 1280 x 800
Brightness (nits): 400
Screen Refresh Rate: 60Hz
Display Area (H): 216.96mm
Display Area (V): 135.60mm
Aspect Ratio: 16 : 9
DisplayColors: 16.2 M
Contrast Ratio: 800:1
Backlight: LED
Viewing Angle(U) : 80
Viewing Angle(D) : 80
Viewing Angle(L) : 80
Viewing Angle(R) : 80
Connectivity
HDMI In: 1
Display Port In: 1
Touchscreen Interface USB Port (Front): 1
Mounting Options
Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
Suggested Cut-Out Dimension (Width):
Suggested Cut-Out Dimension (Height):
Physical
Width:
Height:
Depth:
Depth (Inches): Click Available Downloads Tab
Unboxed Weight: 6lbs
Shipping Weight: 25lbs
Environmental
MTBF: 30000hours
Maximum Operating Temperature: 50C
High Humidity: 90%
Low Humidity: 8%
Storage Temp (High): 60C
Storage Temp (Low): -20C
Storage Humidity (High): 90%
Storage Humidity (Low): 8%
Power
Power Supply: AC 100~240V/12V DC
Compliance of Component
CE
CCC
Warranty
Warranty: 1 year
Other
Built-in Chassis Power Supply: Wide Voltage Input (9-36VDC)
Features:
Industrial Display
- Screen Size: 10"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 1280 x 800
- Brightness (nits): 300
- Wide Voltage Input (9-36VDC)
