SL-LCD-12-NoTouch-SSB

12.1" TFT, Active Matrix (CCFL) Monitor 800 x 600 Resolution, 450 NITS Brightness, IP66 Front Panel, Stainless Steel

Industrial Display

Screen Size (inches): 12.1"
Front Panel Rating: IP66
Aspect Ratio: 4 : 3
Native Display Resolution: 800 x 600
Brightness (nits): 450
Ports: VGA Port In, DVI-D In
Mounting Options: VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately

Display
Screen Size (inches): 12.1
Front Panel Rating: IP66
Aspect Ratio: 4 : 3
Native Display Resolution: 800 x 600
Brightness (nits): 450
Display Area (H): 246mm
Display Area (V): 184.50mm
Aspect Ratio: 4 : 3
DisplayColors: 16.7 M
Contrast Ratio: 1500:1
Backlight: TFT, Active Matrix (CCFL)
Viewing Angle(U) : 178°
Viewing Angle(D) : 178°
Viewing Angle(L) : 178°
Viewing Angle(R) : 178°
Connectivity
VGA Port In: 1
DVI-D In: 1
Mounting Options
Mounting Options: VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately

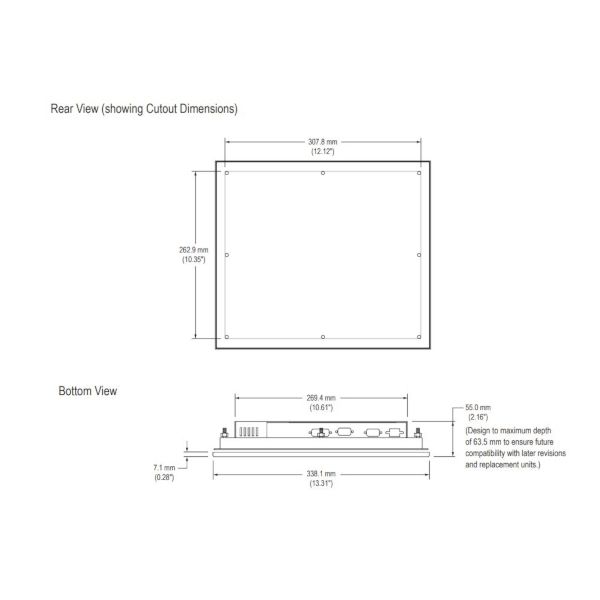

Suggested Cut-Out Dimension (Width): 307.80mm
Suggested Cut-Out Dimension (Height): 262.90mm
Physical

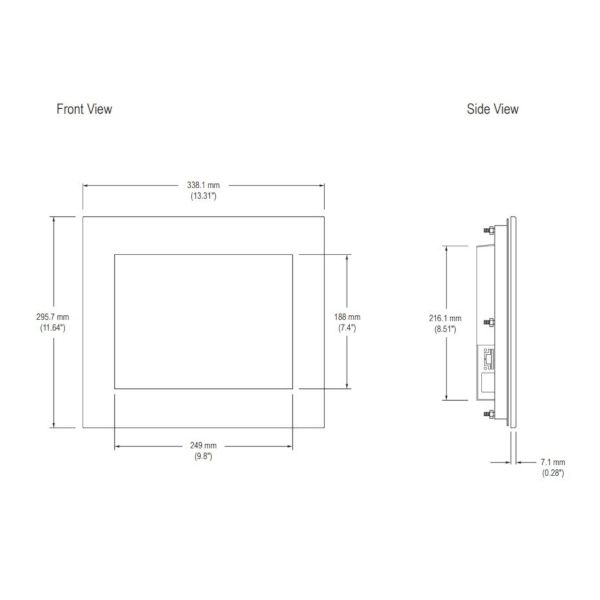

Width: 338.10mm
Height: 295.70mm
Depth: 54.10mm
Depth (Inches): 2.15
Unboxed Weight: 9lbs
Shipping Weight: 15lbs
Environmental
MTBF: 60000hours
Maximum Operating Temperature: 50C
High Humidity: 90%
Low Humidity: 20%
Storage Temp (High): 80C
Storage Temp (Low): -20C
Storage Humidity (High): 90%
Storage Humidity (Low): 20%
Power
Power Supply: Accepts 100-240 VAC, 50/60 Hz directly
Power Consumption (on): 15Watts
Compliance of Component
UL
CE
FCC
Warranty
Warranty: 1 year
Other
Features:
Industrial Display
- Screen Size: 12.1"
- Touch Type: None
- Front Panel Rating: IP66
- Bezel Material: Stainless Steel
- Native Display Resolution: 800 x 600
- Brightness (nits): 450
