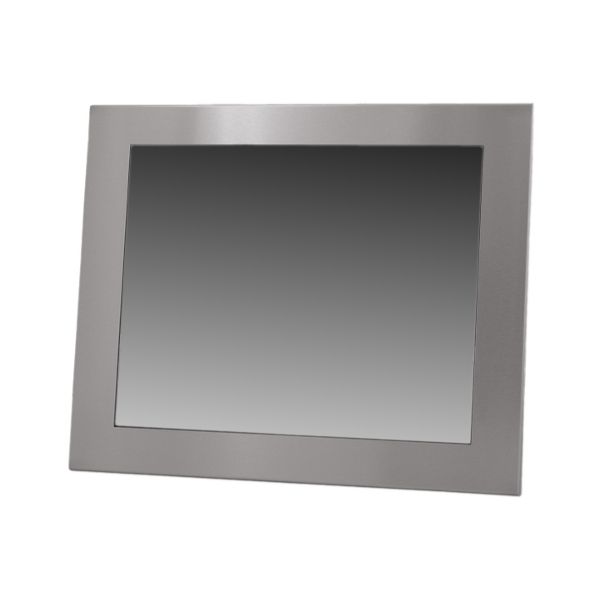

SL-LCD-12-RTouch-SSB
12.1" TFT, Active Matrix (CCFL) Monitor with 5-Wire Resistive Touch Screen - 800 x 600 Resolution, 450 NITS Brightness, IP66 Front Panel, Stainless Steel
Hazardous Location: UL Listed for Class I, II, III, Division 2, Groups A, B, C, D, F, G; T-Code T4A
Industrial Display
- Screen Size (inches): 12.1"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP66
- Aspect Ratio: 4 : 3
- Native Display Resolution: 800 x 600
- Brightness (nits): 450

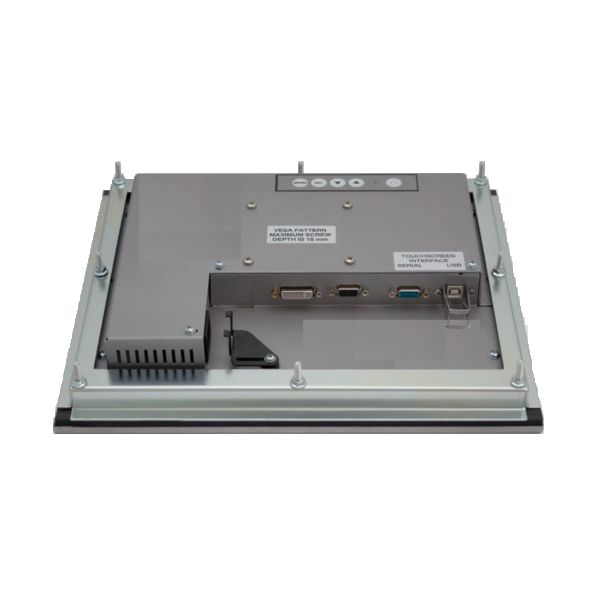

- Ports: VGA Port In, DVI-D In
- Mounting Options: VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
Related Products
Check items to add to the cart or
- Display
- Screen Size (inches): 12.1
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP66
- Aspect Ratio: 4 : 3
- Native Display Resolution: 800 x 600
- Brightness (nits): 450
- Display Area (H): 246mm
- Display Area (V): 184.50mm
- Aspect Ratio: 4 : 3
- DisplayColors: 16.7 M
- Contrast Ratio: 1500:1
- Backlight: TFT, Active Matrix (CCFL)
- Viewing Angle(U) : 178°
- Viewing Angle(D) : 178°
- Viewing Angle(L) : 178°
- Viewing Angle(R) : 178°
- Connectivity
- VGA Port In: 1
- DVI-D In: 1
- Mounting Options
- Mounting Options: VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately

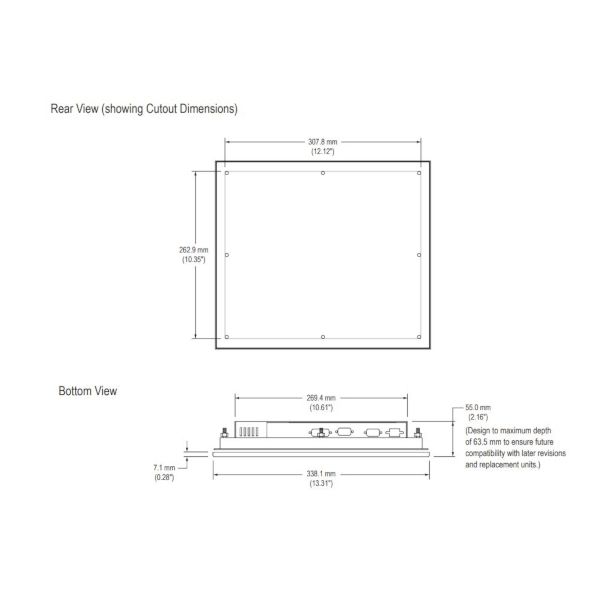

- Suggested Cut-Out Dimension (Width): 307.80mm
- Suggested Cut-Out Dimension (Height): 262.90mm

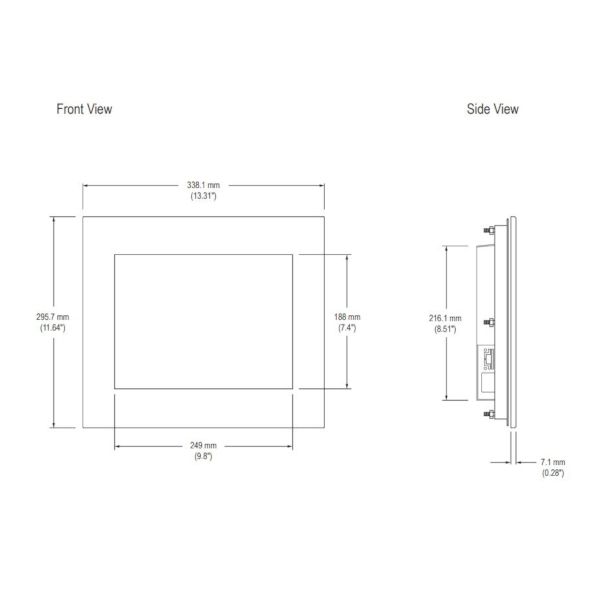

- Physical
- Width: 338.10mm
- Height: 295.70mm
- Depth: 54.10mm
- Depth (Inches): 2.15
- Unboxed Weight: 9lbs
- Shipping Weight: 15lbs
- Environmental
- MTBF: 60000hours
- Maximum Operating Temperature: 50C
- High Humidity: 90%
- Low Humidity: 20%
- Storage Temp (High): 80C
- Storage Temp (Low): -20C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 20%
- Power
- Power Supply: Accepts 100-240 VAC, 50/60 Hz directly
- Power Consumption (on): 15Watts
- Compliance of Component
- UL
- CE
- FCC
- Warranty
- Warranty: 1 year
- Other
- Features:
Industrial Display
- Screen Size: 12.1"
- Touch Type: 5-wire single-touch resistive system with mouse emulation
- Front Panel Rating: IP66
- Bezel Material: Stainless Steel
- Native Display Resolution: 800 x 600
- Brightness (nits): 450
- Hazardous Location: UL Listed for Class I, II, III, Division 2, Groups A, B, C, D, F, G; T-Code T4A
