SL-LCD-15A-NT-2

15" LED Monitor 1024 x 768 Resolution, 400 NITS Brightness, IP65 / NEMA4 Front Panel, Black

Industrial Display

Screen Size (inches): 15"
Front Panel Rating: IP65 / NEMA4
Aspect Ratio: 4 : 3
Native Display Resolution: 1024 x 768
Brightness (nits): 400
Ports: VGA Port In, DVI-I In, HDMI In
Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately

Display
Screen Size (inches): 15
Front Panel Rating: IP65 / NEMA4
Aspect Ratio: 4 : 3
Native Display Resolution: 1024 x 768
Brightness (nits): 400
Screen Refresh Rate: 60Hz
Display Area (H): 304.13mm
Display Area (V): 228.10mm
Aspect Ratio: 4 : 3
DisplayColors: 16.2 M
Contrast Ratio: 700:1
Backlight: LED
Viewing Angle(U) : 80
Viewing Angle(D) : 80
Viewing Angle(L) : 70
Viewing Angle(R) : 80
Connectivity
VGA Port In: 1
DVI-I In: 1
HDMI In: 1
Mounting Options
Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately

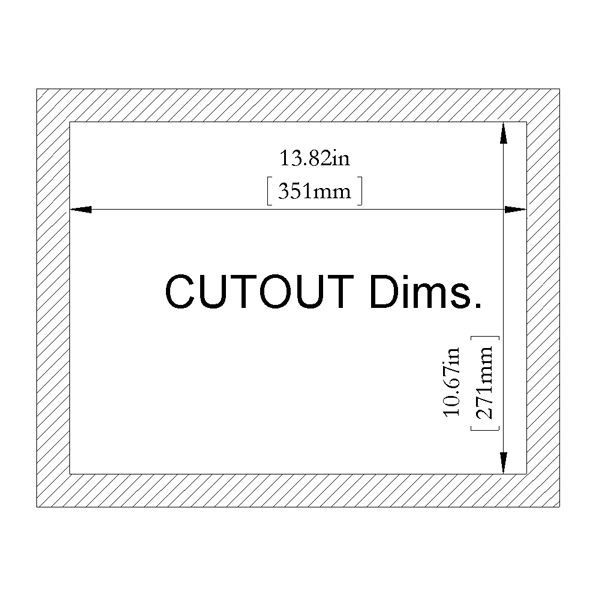

Suggested Cut-Out Dimension (Width): Click Available Downloads Tab
Suggested Cut-Out Dimension (Height): Click Available Downloads Tab

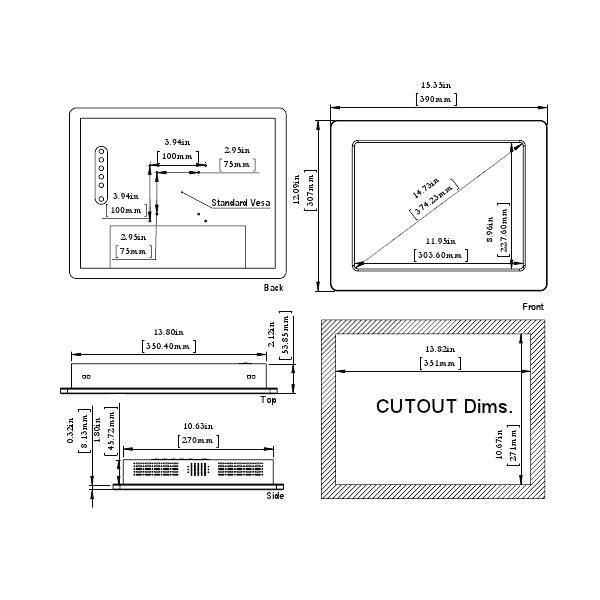

Physical
Width: Click Available Downloads Tab
Height: Click Available Downloads Tab
Depth: Click Available Downloads Tab
Depth (Inches): Click Available Downloads Tab
Unboxed Weight: 10lbs
Shipping Weight: 30lbs
Environmental
MTBF: 50000hours
Maximum Operating Temperature: 50C
High Humidity: 90%
Low Humidity: 8%
Storage Temp (High): 80C
Storage Temp (Low): -30C
Storage Humidity (High): 90%
Storage Humidity (Low): 8%
Power
Power Supply: AC 100~240V/12V DC
Power Consumption (on): 12Watts
Compliance of Component
CE
RoHS
FCC
CB
TCO
CCC
Warranty
Warranty: 1 year
Other
Features:
Industrial Display
- Screen Size: 15"
- Touch Type: None
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 1024 x 768
- Brightness (nits): 450
