SL-LCD-19.5-RTouch-SSB-WIDE-DC2

19.5" Panel Mount Industrial Monitor, HazLoc Rated, NEMA 4X, IP65/IP66, Stainless Steel Bezel, Single-Touch Analog Resistive Touch Screen, AC and DC input. 1.5 m (5 ft.) VGA video and AC power, and 1.8 m (6 ft.) USB touch cables included.

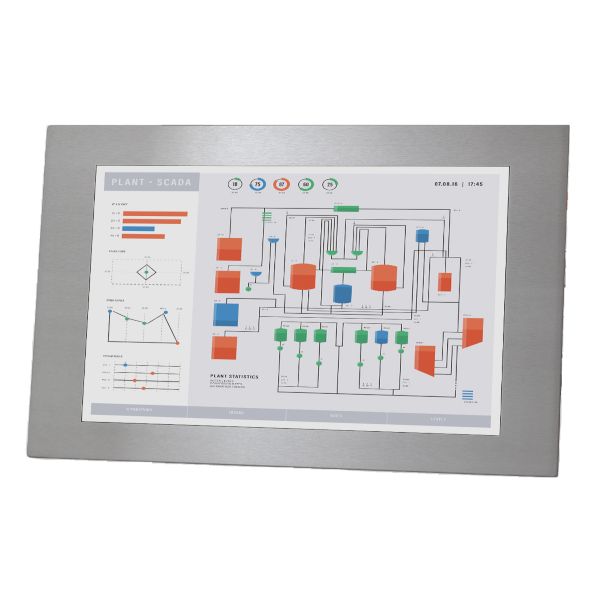

main product photo

Industrial Display

  • Screen Size: 19.5"
  • Touch Type: 5-wire single-touch resistive system with mouse emulation
  • Front Panel Rating: IP66/IP66
  • Bezel Material: Stainless Steel
  • Native Display Resolution: 1920 x 1080
  • Brightness (nits): 250
Related Products
Check items to add to the cart or
  • Display
    • Thin-film Transistor (TFT) Active Matrix Liquid Crystal
    • Size - 19.5″ diagonal (widescreen)
    • Image Size (W x H) - 434.88 mm x 238.68 mm (17.1″ x 9.4″)
    • Native Resolution - HD 1080p (1920 x 1080, 16:9 aspect ratio)
    • Plug and Play - DDC1/2B compatible
    • Minimum Resolution - VGA (640 x 480)
    • Pixel Pitch - 0.2265 mm x 0.221 mm
    • Number of Colors - 16.7 million
    • Brightness (white) – 250 nits (cd/m2) max
    • Viewing Angle (Hori/Vert), typical - 178° / 178°
    • Contrast Ratio (typical) - 3000:1
    • Backlight - LED; 50,000 hour brightness half-life
  • Video
    • Input Connectors - DVI-D, DisplayPort
    • Input Signal Formats - RGB Analog video, 0.7/1.0 Vp-p, 75 Ohms; Compatible sync modes: Separate H/V sync, Composite synce, Sync on Green, DVI, Displayport 1.1
    • Horizontal Scan - 24-82 kHz
    • Vertical Scan - 50-75 Hz
    • Supported Video Standards - HD 1080p – 1920 x 1080 @ 60 Hz (native); 1680 x 1050 @ 60 Hz; 1600 x 1200 @ 60 Hz; 1440 x 900 @ 60, 75 Hz; 1280 x 1024 @ 60, 75 Hz; 1024 x 768 @ 60, 70, 72, 75 Hz; 800 x 600 @ 56, 60, 75 Hz; 720 x 480 @ 60 Hz; 640 x 480 @ 50, 75 Hz; see user manual for a full list of resolution and timing compatibility
    • Response Rate (typical) - 25 ms
  • Electrical
    • DC Power Input - 10.8 to 26.4 VDC, 2.3 to 0.9 A, Class 2 or SELV/LPS
    • AC Power Input - 100 to 240 VAC, 0.6/0.3A, 60/50Hz; AC power cable included
    • Power Consumption (typical) - 27 W
    • Power Consumption (standby mode) - < 2 W
  • Environmental
    • Panel Rating (with proper installation) - IP65/IP66
    • Temperature - 0° to 50°C (32° to 122°F)
    • Storage Temperature – -20° to 60°C (-4° to 140°F)
    • Humidity - 20% to 90% non-condensing
    • Operating Shock - 15 g, 6 msec, half-sine
    • Operating Vibration (sine) - 1.0 g, swept sine 9-500 Hz
    • Transport Vibration (random) - 0.1g² / Hz, 10-200 Hz; 0.03g² / Hz, 200-2000 Hz
    • Altitude - Operating: up to 10,000 feet; Non-operating: up to 40,000 feet
  • Functional

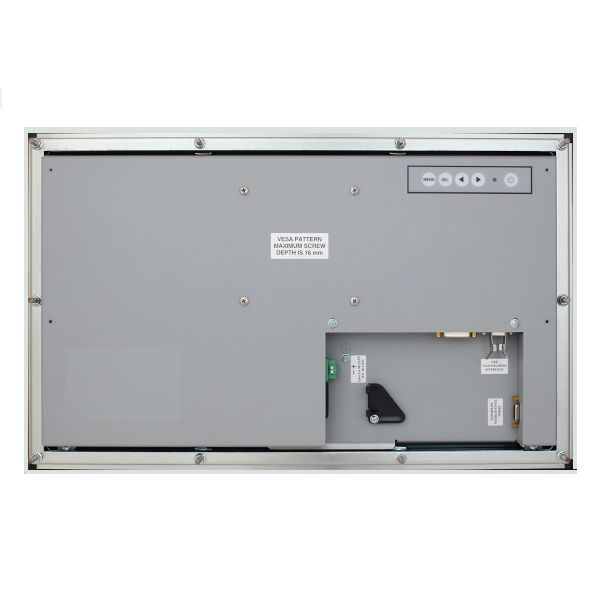

    • Panel Controls (rear access) - Menu, SEL, Left, Right, Power
    • OSD (On Screen Display) Controls - Contrast, Brightness, Sharpness, Color, Timing, Auto setup, H total, V position, H position, Phase, Inputs, OSD, Info, Reset to factory defaults, Source scan, Advanced Setup
  • Physical
  • NOTE: These specs are for the touchscreen only! Computer attached may alter these measurements
    • Enclosure Type – panel mount; rear collar compresses gasket against panel; held by 10 M5 studs
    • Maximum Panel Thickness – 7.9 mm (5/16″)
    • Bezel Material – stainless steel faceplate
    • VESA Mount Holes – standard 100 mm VESA mounting holes, M4 threads (hardware included)
    • Maximum Depth Behind Panel – 46.3 mm (1.82″)
    • Front Bezel Outside Dimensions (W x H x D) – 530.0 mm x 332.5 mm x 8.8 mm (20.87″ x 13.09″ x 0.35″) (not including gasket)
    • Cutout Dimensions (W x H) – 497.8 mm x 298.5 mm (19.60″ x 11.75″); +/- 0.5 mm (0.020″)
    • Net Weight – 5.83 kg (12.85 lbs.)
    • Shipping Weight – 8.16 kg (18 lbs.)
  • Touch Screen option
    • 5-wire single-touch resistive sensor. Pressure sensitive for use with any stylus or glove. Polyester cover sheet with anti-glare acrylic hard-coat. Single-touch gestures supported.
    • USB or RS-232 interface to computer (both connections are included on touch screen monitors)
  • Compliances and Certifications
