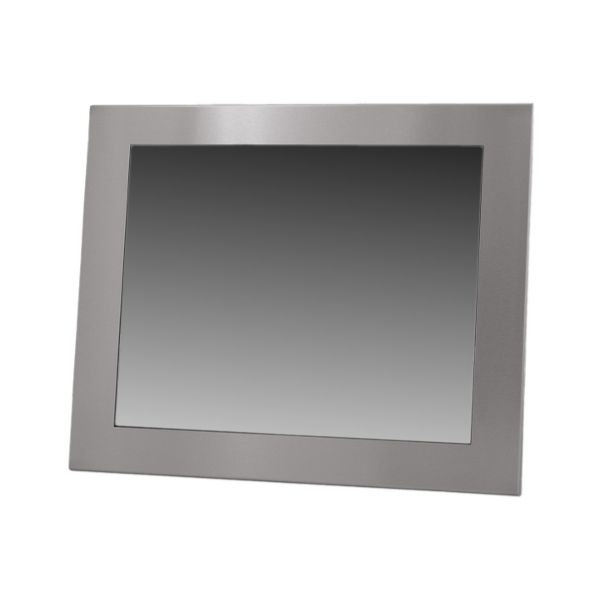

SL-LCD-19-RTouch-SSB-DC
19" TFT, Active Matrix (CCFL) Monitor with 5-Wire Resistive Touch Screen - 1280 x 1024 Resolution, 250 NITS Brightness, IP65 / NEMA4 Front Panel, Stainless Steel
Hazardous Location: UL Listed for Class I, II, III, Division 2, Groups A, B, C, D, F, G; T-Code T4A
Industrial Display
- Screen Size (inches): 19"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 5 : 4
- Native Display Resolution: 1280 x 1024
- Brightness (nits): 250
- Ports: VGA Port In, DVI-D In
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
Related Products
Check items to add to the cart or
- Display
- Screen Size (inches): 19
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 5 : 4
- Native Display Resolution: 1280 x 1024
- Brightness (nits): 250
- Display Area (H): 376mm
- Display Area (V): 301mm
- Aspect Ratio: 5 : 4
- DisplayColors: 16.7 M
- Contrast Ratio: 1000:1
- Backlight: TFT, Active Matrix (CCFL)
- Viewing Angle(U) : 80
- Viewing Angle(D) : 80
- Viewing Angle(L) : 85
- Viewing Angle(R) : 85
- Connectivity
- VGA Port In: 1
- DVI-D In: 1
- Mounting Options
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

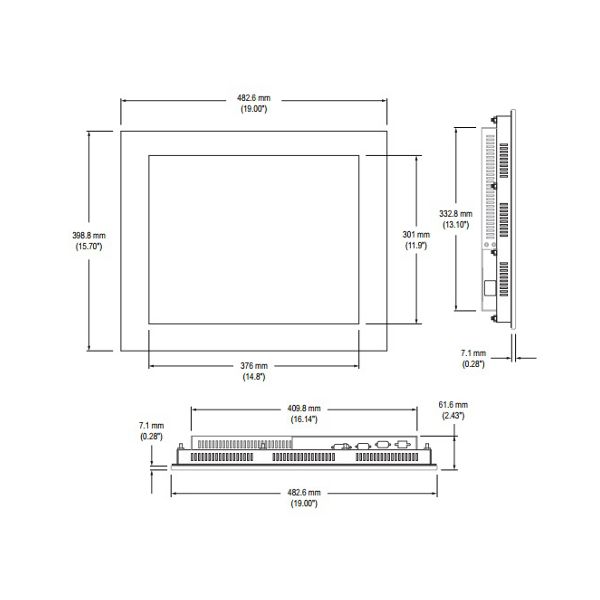

- Suggested Cut-Out Dimension (Width): 453.40mm
- Suggested Cut-Out Dimension (Height): 366.80mm
- Physical
- Width: 482.60mm
- Height: 398.80mm
- Depth: 54.50mm
- Depth (Inches): 2.2
- Unboxed Weight: 18lbs
- Shipping Weight: 35lbs
- Environmental
- MTBF: 40000hours
- Maximum Operating Temperature: 50C
- High Humidity: 90%
- Low Humidity: 20%
- Storage Temp (High): 60C
- Storage Temp (Low): -20C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 20%
- Power

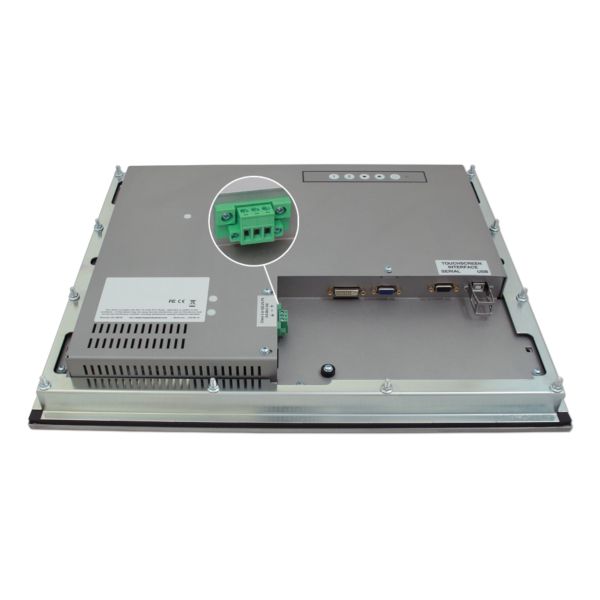

- Power Supply: 9.6 ~ 36.6 VDC
- Power Consumption (on): 16Watts
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Warranty
- Warranty: 1 year
- Other
- Features:
Industrial Display
- Screen Size: 19"
- Touch Type: 5-wire single-touch resistive system with mouse emulation
- Front Panel Rating: IP66
- Bezel Material: Stainless Steel
- Native Display Resolution: 1280 x 1024
- Brightness (nits): 250
- Hazardous Location: UL Listed for Class I, II, III, Division 2, Groups A, B, C, D, F, G; T-Code T4A
