SL-LCD-22A-RTOUCH-SUN-1
22" LED Monitor with 5-Wire Resistive Touch Screen - 1680 x 1050 Resolution, 1000 NITS Brightness, IP65 / NEMA4 Front Panel, Black
Special Order Item, Delivery approximately 16 weeks
Lead Time: 12 Weeks
Industrial Display
- Screen Size (inches): 22"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 16 : 10
- Native Display Resolution: 1680 x 1050
- Brightness (nits): 1000

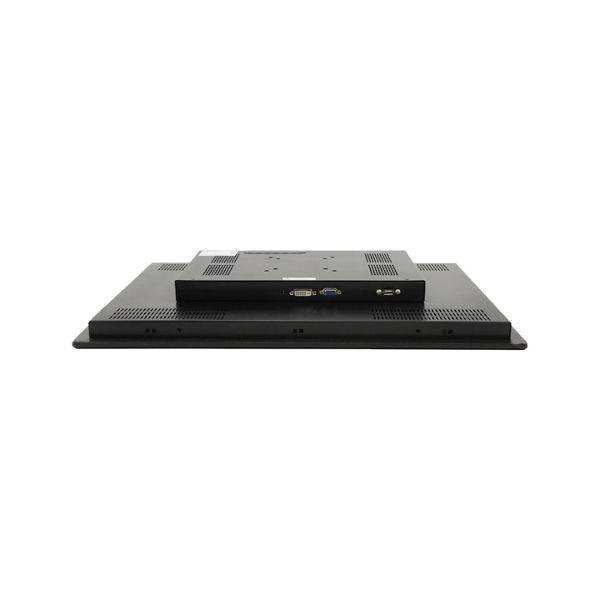

- Ports: VGA Port In, DVI-I In
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
Related Products
Check items to add to the cart or
- Display
- Screen Size (inches): 22
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 16 : 10
- Native Display Resolution: 1680 x 1050
- Brightness (nits): 1000
- Screen Refresh Rate: 60Hz
- Display Area (H): 473.76mm
- Display Area (V): 296.10mm
- Aspect Ratio: 16 : 10
- DisplayColors: 16.7 M
- Contrast Ratio: 1000:1
- Backlight: LED
- Viewing Angle(U) : 80
- Viewing Angle(D) : 80
- Viewing Angle(L) : 85
- Viewing Angle(R) : 85
- Connectivity
- VGA Port In: 1
- DVI-I In: 1
- Touchscreen Interface USB Port (Front): 1
- Mounting Options
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately

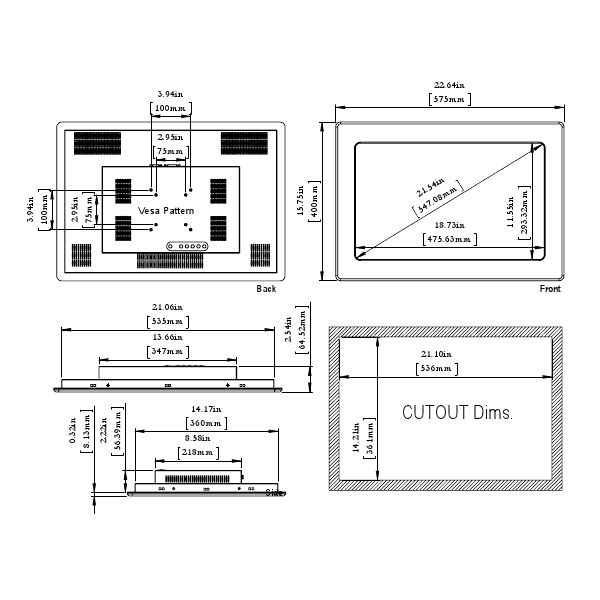

- Suggested Cut-Out Dimension (Width): Click Available Downloads Tab
- Suggested Cut-Out Dimension (Height): Click Available Downloads Tab
- Physical
- Width: Click Available Downloads Tab
- Height: Click Available Downloads Tab
- Depth: Click Available Downloads Tab
- Depth (Inches): Click Available Downloads Tab
- Unboxed Weight: 20lbs
- Shipping Weight: 45lbs
- Environmental
- MTBF: 30000hours
- Maximum Operating Temperature: 50C
- High Humidity: 90%
- Low Humidity: 8%
- Storage Temp (High): 60C
- Storage Temp (Low): -10C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 8%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 31Watts
- Compliance of Component
- CE
- RoHS
- FCC
- Warranty
- Warranty: 1 year
- Other
- Features:
Lead Time: 12 Weeks
Industrial Display
- Screen Size: 22"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 1680 x 1050
- Brightness (nits): 1000
Windows 10 Windows 8.1 Windows 8 Windows Embedded 8 Embedded 8.1 Industry Embedded 8.1 Pro Embedded 8 Standard Windows 7 Windows Embedded 7 Embedded Enterprise 7 Embedded Standard 7 Embedded POSReady 7 Windows XP Windows Embedded POSReady 2009 Windows 2000
