SL-RMPD-17-HD-HDMI-1 This item is no longer available.

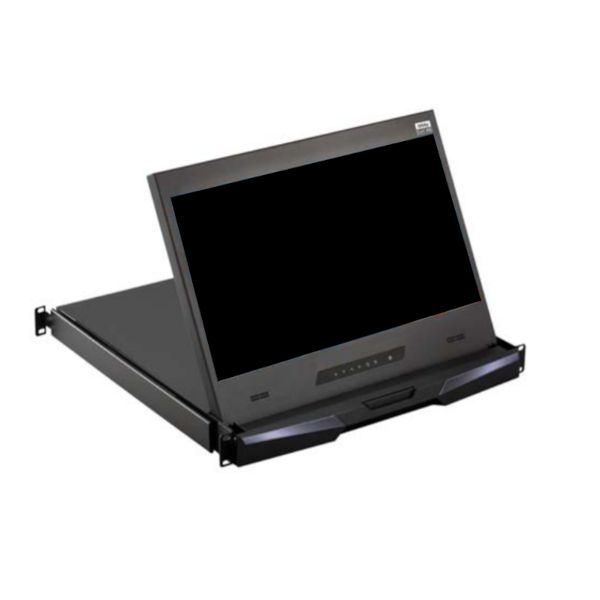

1U 17" full-HD LCD drawer ..- 17.3" widescreen LCD..- max resolution 1920 x 1080..- HDMI-1.4 + VGA + DVI-D
- 1U 17" LCD display drawer
- 1920 x 1080 native resolution / 16.7M colors ( 8-bit )
- HDMI-1.4 + VGA + DVI-D
- Short depth design of 480mm
- One Man installation design
- Enhanced aesthetics with molded front panel and two point lock
LCD Panel
- Panel Size ( diagonal ) 17.3-inch
- Display pixel ( dots x lines ) 1920 x 1080
- Brightness ( typ. ) 300
- Contrast Ratio ( typ. ) 1000:1
- Color 16.7 M, 8-bit
- Viewing Angle ( L/R/U/D ) 85/85/85/85
- Response Time ( ms ) 20
- Dot pitch ( mm ) 0.1989
- Display Area ( mm ) 381.888H x 214.812V
- Surface treatment Anti-glare, Hard-coating
- Surface hardness 3H
- Backlight Type LED
- MTBF ( hrs ) 15,000
Video Connectivity
- DVI DVI-D, single link
- VGA Analog 0.7Vp-p
- HDMI 1.4
Power
- Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
- Screen ON Max. 14W
- Power saving mode Max. 2W
- Power button OFF Max. 1W
Regulatory
- EMC FCC & CE
- Safety CE / LVD & UKCA
- Environmental RoHS3 & REACH /WEEE
Environmental Conditions
Operating
- Temperature 0 to 55°C degree
- Humidity 10~90%, non-condensing
- Altitude 16,000 ft
Storage / Non-operating
- Temperature -20 to 60°C degree
- Humidity 5~90%, non-condensing
- Altitude 40,000 ft
- Shock 10G acceleration (11ms duration)
- Vibration 10~300Hz 0.5G random vibration

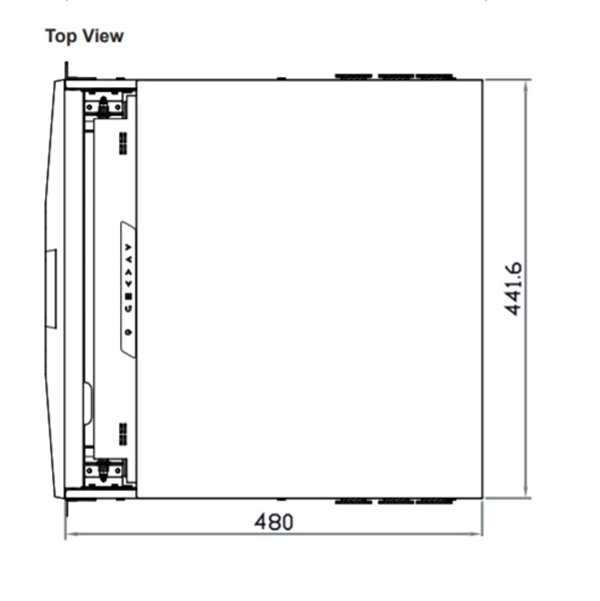

Physical Specification
Product ( W x D x H )
- 442 x 480 x 44 mm 17.4 x 18.9 x 1.73 inch
Packing ( W x D x H )
- 588 x 758 x 120 mm 23.1 x 29.8 x 4.7 inch
Net Weight 11 kgs / 24.2 lbs
Gross Weight 15 kgs / 33 lbs
