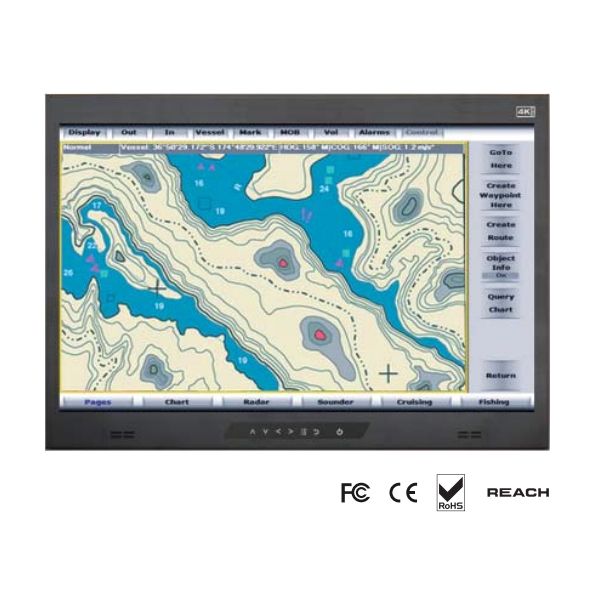

SL-RMPD-RP-K923

LCD Panel

Native Resolution                                             3840 x 2160

Panel Size ( diagonal )                                     23.8-inch TFT color LCD

 Brightness ( cd/m² )                                       310

Contrast Ratio ( typ. )                                     1000:1

Colors                                                                   1.07 Billion, 10-bit

Viewing Angle ( L/R/U/D )                             89/89/89/89

Response Time ( ms )                                      25

Dot pitch ( mm )                                               0.13725

Display Area ( mm )                                         527.04H x 296.46V

Surface treatment                                           Anti-glare

Surface hardness                                              3H

Backlight Type                                                   LED

MTBF ( hrs )                                                        30,000



Video

Digital Display port

DisplayPort                                                         1.2 / HDCP 1.3

HDMI                                                                    HDMI 1.4 / HDCP 1.4

HDMI                                                                    HDMI 2.0 / HDCP 2.2



Audio

Audio Output

Connector                                                           3.5mm stereo jack

Resistance / Power level 30kΩ / 2.8V

Speaker

Dual Stereo Speaker 2W x 2



Power

Power Supply

Range                                                                    Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption

Screen ON Max. 29W Power saving mode Max. 9W Power button OFF Max. 2W



Compliance

EMC FCC & CE certified

Safety CE / LVD certified

Environment RoHS2 & REACH compliant



Environmental Conditions

Operating Temperature                                0 to 55°C degree

Humidity                                                              20~90%, non-condensing

Altitude                                                                16,000 ft

Storage / Non-operating

Temperature                                                     -20 to 60°C degree

Humidity                                                              5~90%, non-condensing

Altitude                                                                40,000 ft

Shock                                                                    10G acceleration (11ms duration)

Vibration                                                             5~500Hz 1G RMS random



Physical Specification

Product ( W x D x H )                                       480 x 48 x 266 mm, 18.9 x 1.9 x 10.5 inch

Packing ( W x D x H )                                       529 x 124 x 451 mm, 20.8 x 4.9 x 17.8 inch

Net Weight                                                         4.2 kg / 9.2 lb

Gross Weight                                                     6.2 kg / 13.6 lb



Applicable Format

Display Port Input

PC Signal

3840 x 2160 x 60Hz

1920 x 1080 x 60Hz

1600 x 1200 x 60Hz

1360 x 768 x 60Hz

1280 x 1024 x 60 / 75Hz

1280 x 768 x 60Hz

1024 x 768 x 60 / 70 / 75Hz

800 x 600 x 60 / 72 / 75Hz

720 x 400 x 70Hz

640 x 480 x 60 / 72 / 75Hz

Audio Signal 2ch Linear PCM

HDMI Input

HDMI 2.0 3840 x 2160 x 60Hz

HDMI 2.0 / 1.4

3840 x 2160 x 30Hz

1920 x 1080 x 50 / 60Hz ( 1080p )

1920 x 1080 x 25 / 30Hz ( 1080i )

1280 x 720 x 50 / 60Hz ( 720p )

720 x 480 x 50 / 60Hz ( 576p / 480p )

Audio Signal 2ch Linear PCM
