SL-RMKB-17-RKP2417F-U801b

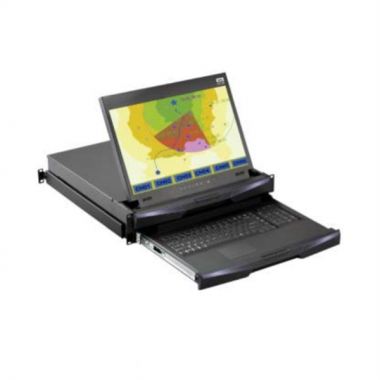

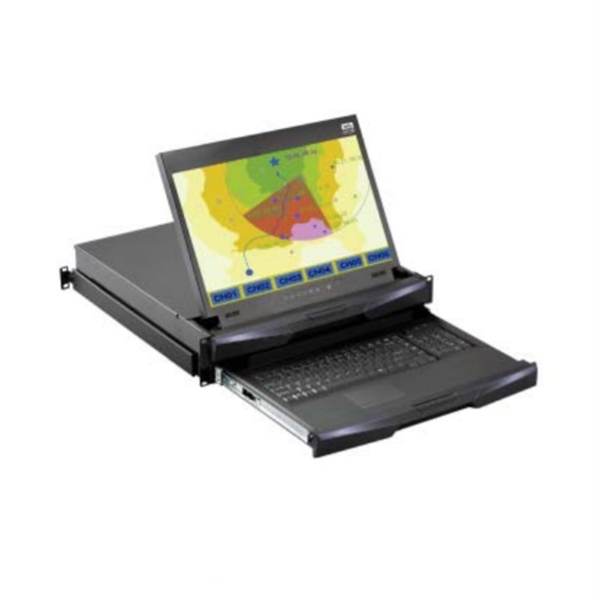

2U dual slide 17" widescreen LCD console drawer. Support Full HD with 1080p resolution. Green LED-backlit panel technology. 104-key keyboard with trackball. 1 Local User with 8 Ports KVM. Short depth design of 580mm ( 22.8" )
Keyboard with Trackball
- 2U 17" LCD console drawer
- Dual slide - LCD and keyboard slide independently
- 1920 x 1080 native resolution / 16.7M colors ( 8-bit )
- VGA video input / USB KB / MS
- 104-key keyboard with trackball
- Short depth design of 580mm
- One Man installation design
- Enhanced aesthetics with molded front handle and two point lock

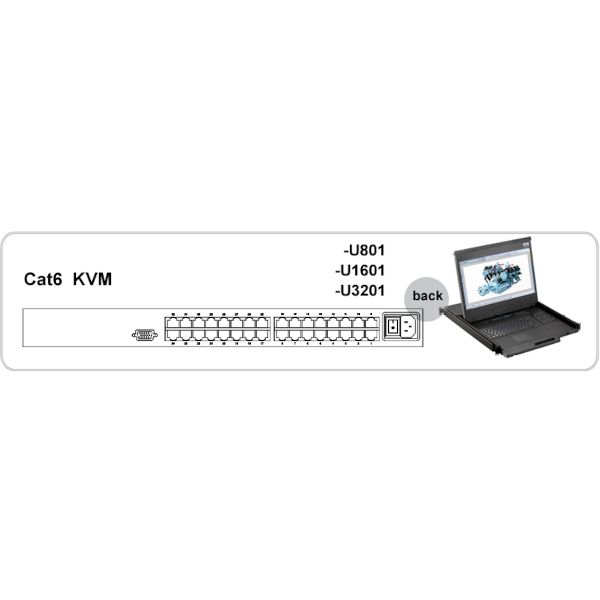

- Console Type Combo Cat6
- 1 Local User 8 Ports
- Dongle Not Included
Please see realated products for Dongles.
Related Products
Check items to add to the cart or
Console Port
- Video input VGA
- KB / MS Combo ( USB )
- Drawer end : DB-15 ( USB KB / MS )
- Server end : DB-15 + USB type A
LCD Panel
- Panel size ( diagonal ) 17.3"
- Native resolution 1920 x 1080
- Brightness ( cd/m² ) 400
- Contrast ratio ( typ. ) 600 : 1
- Colors 16.7 M, 8-bit
- Viewing angle ( L/R/U/D ) 80/80/60/80
- Response time ( ms ) 40
- Dot pitch ( mm ) 0.1989
- Display area ( mm ) 381.888H x 214.812V
- Surface treatment Anti-glare, Hard-coating
- Surface hardness 3H
- Backlight type LED
- MTBF (hrs) 50,000
Power
- Input Auto-sensing 100 to 240VAC, 50 / 60Hz
- Consumption
- Screen on Max. 55W
- Power saving mode Max. 34W
- Power button on Max. 1W
Environment
- Operating temp. 0 to 55°C degree
- Storage temp -20 to 60°C degree
- Operating humidity 20~90%, non-condensing
- Storage humidity 5 ~90%, non-condensing
- Operating altitude 16,000 ft
- Non-operating altitude 40,000 ft
- Shock 10G acceleration ( 11ms duration )
- Vibration 10~300Hz 0.5G RMS random vibration
Compliance
- EMC FCC & CE certified
- Safety CE / LVD certified
- Environment RoHS2 & REACH compliant

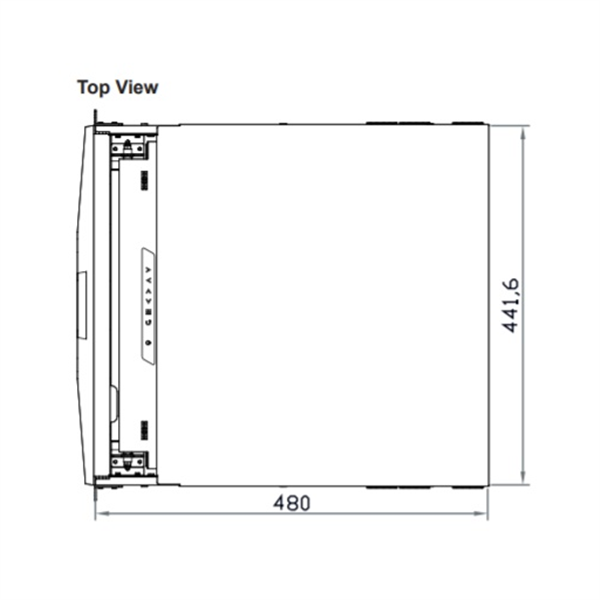

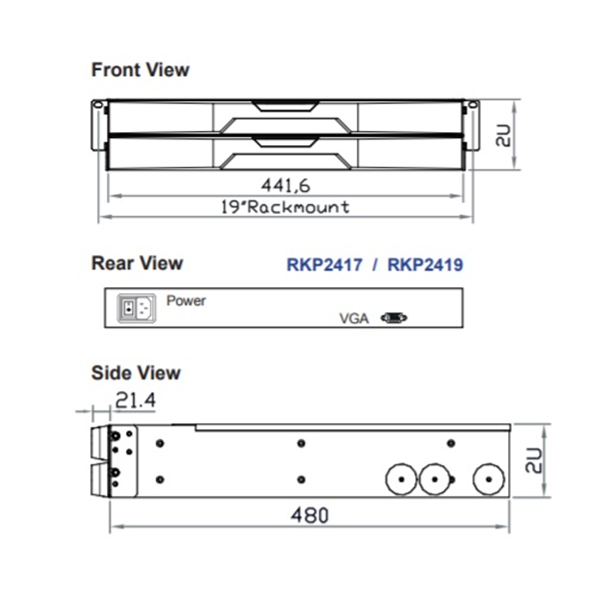

Physical
- Product ( W x D x H ) 442 x 580 x 44 mm
- Packing ( W x D x H ) 590 x 808 x 140 mm
- Net weight 21.1 kg / 46.4 lb
- Gross weight 27 kg / 59.4 lb
Mounting Distance
- Console w/ KVM drawer 490 ~ 700 mm
