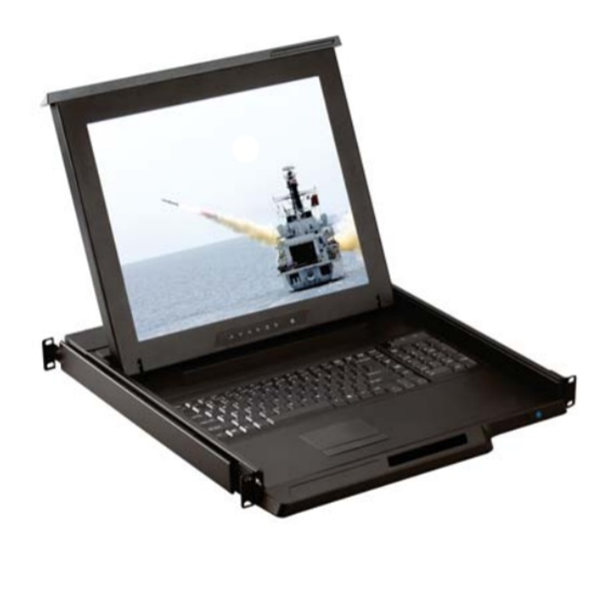

SL-RMKB-19-H119-IP802Hb
1U 19" High Brightness 1280 x 1024 LCD drawer with keyboard and trackball (Depth: 24.4"). VGA input, 6' VGA w/USB console cable. 1 Local 1 IP User with 8 Ports KVM.
19" High Brightness LCD drawer with keyboard and trackball
1 Local 1 IP User with 8 Ports KVM.
- 1U 19" LCD console drawer
- 1280 x 1024 native resolution / 16.7M colors / 1000 cd/m² brightness
- 104-key keyboard with trackball
- Short depth design of 620mm (24.4")
- One Man installation design
- New enhanced aesthetics with molded front handle
- Cable Not Included. Please use SL-RMKB-CBL-DB15-VUH-6 or SL-RMKB-CBL-DB15-VUP-6
Related Products
Check items to add to the cart or
LCD Panel
- Panel size ( diagonal ) 19"
- Native resolution 1280 x 1024
- Brightness ( cd/m² ) 1000
- Contrast ratio ( typ. ) 1000 : 1
- Colors 16.7 M
- Viewing angle ( L/R/U/D ) 85/85/80/80
- Response time ( ms ) 5
- Dot pitch ( mm ) 0.294
- Display area ( mm ) 376.22H x 270.33V
- MTBF (hrs) 30,000
- Surface treatment Haze 25%, Hard-coating
- Surface hardness 3H
- Backlight type LED
Power
- Input Auto-sensing 100 to 240VAC, 50 / 60Hz
- Consumption Screen on Max. 65W
- Power saving mode Max. 34W
- Power button on Max. 1W
Environment
- Operating temp. 0 to 55°C degree
- Storage temp. -20 to 60°C degree
- Operating humidity 20~90%, non-condensing
- Storage humidity 5 ~90%, non-condensing
- Operating altitude 16,000 ft
- Non-operating altitude 40,000 ft
- Shock 10G acceleration ( 11ms duration )
- Vibration 10~300Hz 0.5G RMS random vibration

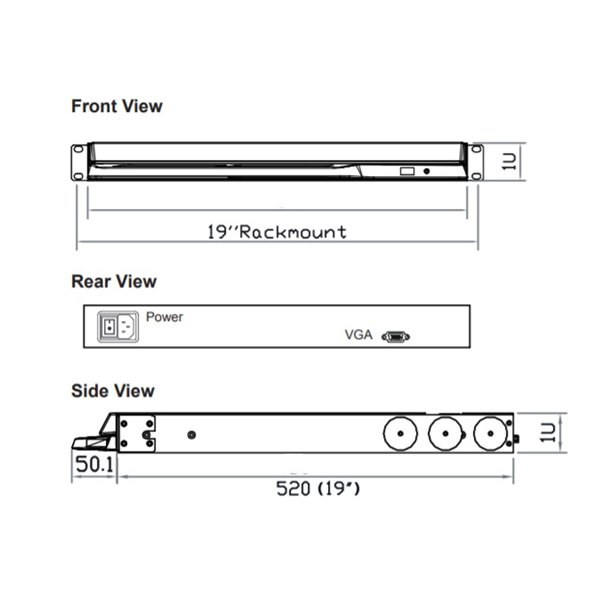

Physical
- Product ( W x D x H ) 442 x 620 x 44 mm
- Packing ( W x D x H ) 590 x 808 x 140 mm
- Net weight 14.5 kg / 31.9 lb lb
- Gross weight 20.4 kg / 44.9 lb lb

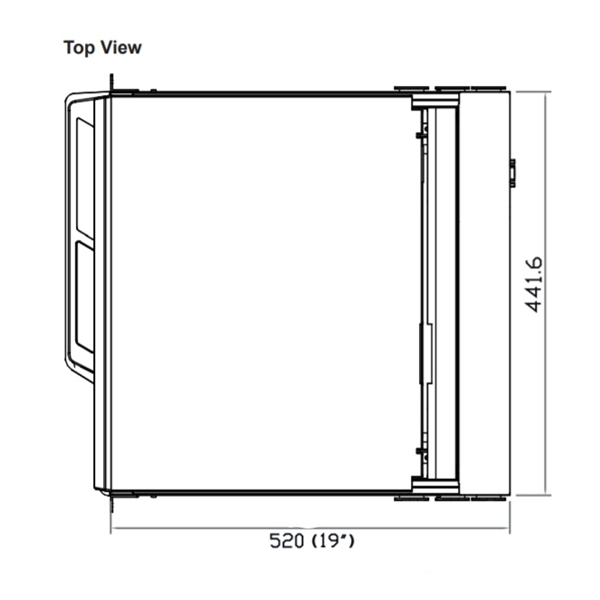

Mounting Distance
- Single console drawer 530 ~ 840 mm
Compliance
- EMC Safety FCC & CE certified
- Safety CE / LVD certified
- Environment RoHS2 & REACH compliant
