SL-RMKB-K1417e

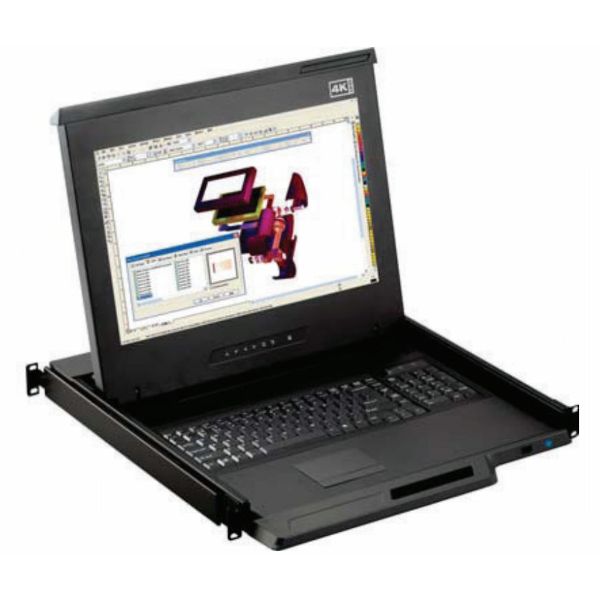

1U 17.3" 4K/UHD LCD drawer. DisplayPort Support 4K/UHD with 3840 X 2160 resolution; LED-backlit panel technology with 300 NITS Brightness, 104-key keyboard with touchpad; Short depth design of 400mm (15.7"). External 4A Power adapter.
Features
- 17.3" 4K/UHD LCD Drawer
- 3840 X 2160 Resolution
- Displayport 1.2 / HDCP 1.3
- 104-key Keyboard with Touchpad
- Ultra Short Depth Design of 400mm (15.7")
LCD Panel
Native Resolution 3840 x 2160
Panel Size ( diagonal ) 17.3-inch TFT color LCD
Brightness ( cd/m² ) 300
Contrast Ratio ( typ. ) 1000:1
Colors 16.7 M, 8-bit
Viewing Angle ( L/R/U/D ) 89/89/89/89
Response Time ( ms ) 16
Dot pitch ( mm ) 0.0995
Display Area ( mm ) 382.12H x 214.94V
Surface treatment Anti-glare
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 20,000
Video
Package DP 1.2 / HDCP 1.3
Power
Power Supply
Range Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption for
Single Console Screen ON Max. 29W Power saving mode Max. 9W Power button OFF Max. 2W
Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
Environmental Conditions
Operating
Temperature 0 to 55°C degree
Humidity 20~90%, non-condensing
Altitude 16,000 ft
Storage / Non-operating
Temperature -20 to 60°C degree
Humidity 5~90%, non-condensing
Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random

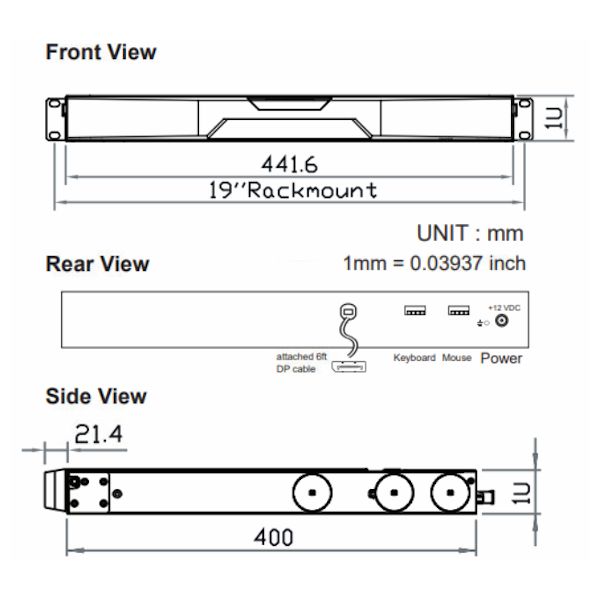

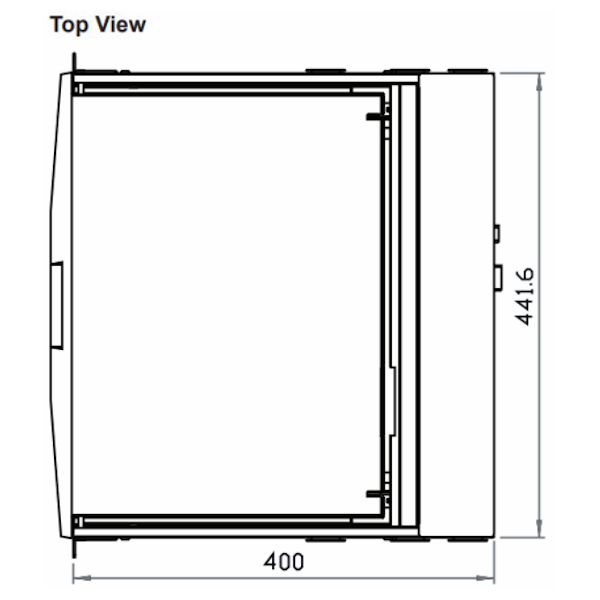

Physical Specification
Product ( W x D x H ) 441.6 x 400 x 44 mm, 17.4 x 15.7 x 1.73 inch
Packing ( W x D x H ) 590 x 622 x 140 mm, 23.2 x 24.5 x 5.5 inch
Net Weight 8.7 kg / 19.1 lb
Gross Weight 13.7 kg / 30.2 lb
Applicable Format
Display Port Input
PC Signal
3840 x 2160 x 60Hz
1920 x 1080 x 60Hz
1600 x 1200 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 768 x 60Hz
1024 x 768 x 60 / 70 / 75Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
Audio Signal 2ch Linear PCM
