SL-RMKB-RKP117b

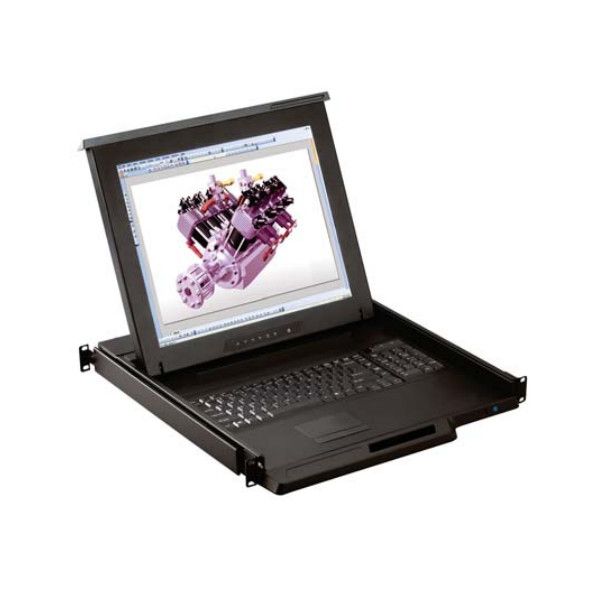

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & Trackball - Fits racks 23.6" - 32.6" Deep
Keyboard with Trackball
Benefits
- 1U 17" LCD console drawer
- 1280 x 1024 native resolution / 16.7M colors
- VGA Signal Input

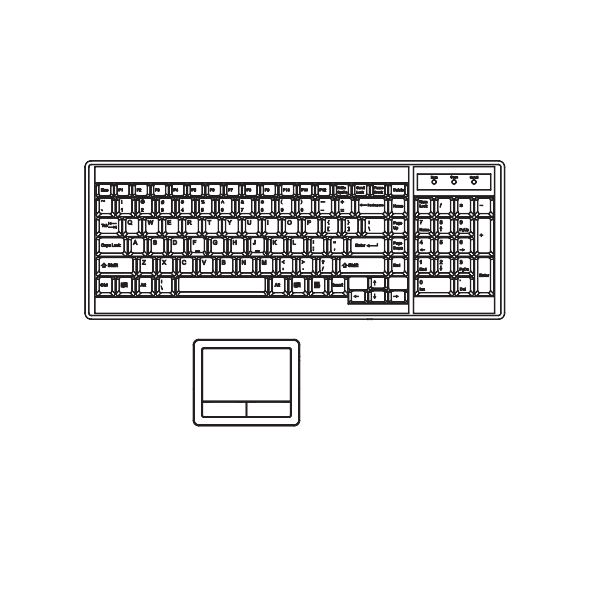

- 104-key keyboard with trackball
- Short depth design of 460mm
- One Man installation design
- New enhanced aesthetics with molded front handle
Console Port
Video input
- VGA
KB / MS
- USB Cable
VGAconsole 6ft cable : CB-6 KB
- Drawer end : DB-15 ( VGA + USB KB / MS )
- Server end : VGA + USB type A
LCD Panel
- Panel size ( diagonal ) 17"
- Native resolution 1280 x 1024
- Brightness ( cd/m² ) 250
- Contrast ratio ( typ. ) 1000 : 1
- Colors 16.7 M
- Viewing angle ( L/R/U/D ) 85/85/80/80
- Response time ( ms ) 5
- Dot pitch ( mm ) 0.264
- Display area ( mm ) 337.92H x 270.33V
- Surface treatment Haze 25%, Hard-coating
- Surface hardness 3H
- Backlight type LED
- MTBF (hrs) 30,000
Power
- Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
- Screen on Max. 25W
- Power saving mode Max. 4W
- Power button on Max. 1W
Environment
- Operating temp. -20 to 65°C degree
- Storage temp -20 to 60°C degree
- Operating humidity 20~90%, non-condensing
- Storage humidity 5 ~90%, non-condensing
- Operating altitude 16,000 ft
- Non-operating altitude 40,000 ft
- Shock 10G acceleration ( 11ms duration )
- Vibration 10~300Hz 0.5G RMS random vibration
Compliance
- EMC FCC, CE & CCC certified
- Safety c UL us, CE / LVD & CCC certified
- Environment RoHS2 & REACH compliant
Physical
- Product ( W x D x H ) 442 x 460 x 44 mm. 17.4 x 18.1 x 1.73 inch
- Packing ( W x D x H ) 590 x 808 x 140 mm. 23.2 x 31.8 x 5.5 inch
- Net weight 12 kg / 26.4 lb
- Gross weight 16.6 kg / 36.5 lb
Mounting Distance
Single console drawer 470 ~ 700 mm. 18.5 ~ 27.6 inch
