SL-RMKB-W119b

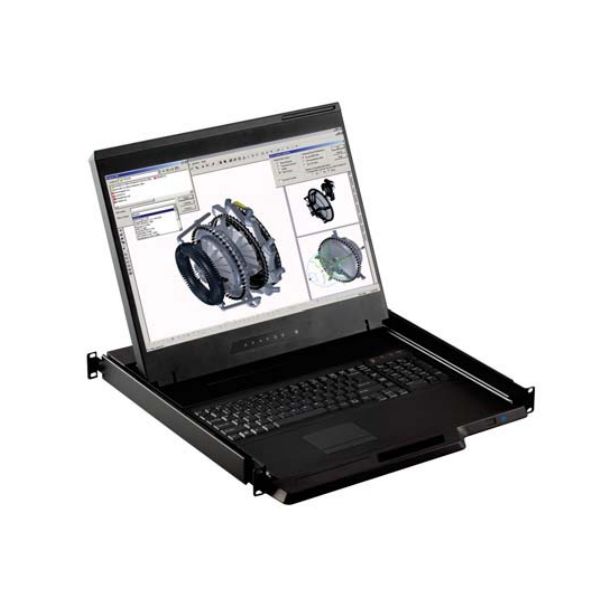

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and trackball (HDMI inputs), Includes cables for USB connections
Keyboard with Trackball
- 1U 19" widescreen LCD console drawer
- VGA + HDMI (no speaker)
- 104-key keyboard with trackball
- Enhanced aesthetics with molded front handle
- Short depth design of only 460mm ( 18.1" )
- Supplied with power adapter, 6' USB/HDMI cable, mounting bracket and screws
Related Products
Check items to add to the cart or
LCD Panel
- Panel Size ( diagonal ) 19-inch Widescreen TFT color LCD
- Display pixel ( dots x lines ) 1440 x 900
- Brightness ( typ. ) 300
- Contrast Ratio ( typ. ) 1000:1
- Color 16.7 M
- Viewing Angle ( L/R/U/D ) 80/80/80/80
- Response Time ( ms ) 5
- Dot pitch ( mm ) 0.2835
- Display Area ( mm ) 408.24H x 255.15V
- Surface treatment Haze 25%, Hard-coating
- Surface hardness 3H
- Backlight Type CCFL
- MTBF ( hrs ) 50,000

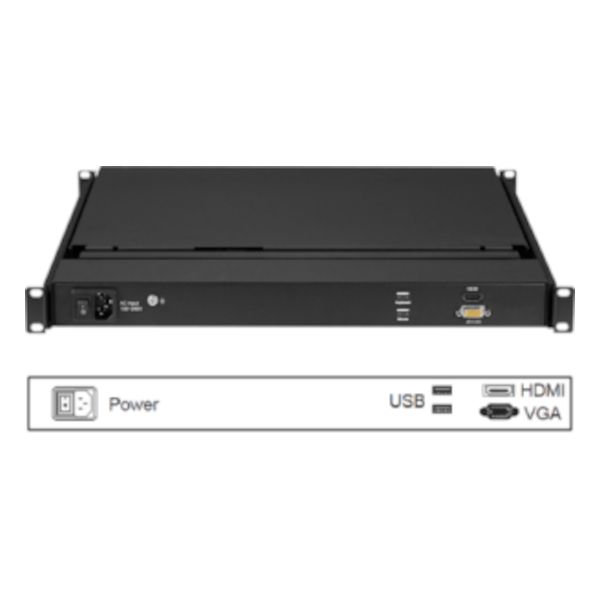

Video Connectivity
- HDMI, VGA
Power
- Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption for Single Console
- Screen ON Max. 25W
- Power saving mode Max. 4W
- Power button OFF Max. 1W
Regulatory
- Safety cUL, FCC & CE certified
- Environmental RoHS2 & REACH compliant
Environmental Conditions
Operating
- Temperature 0 to 55°C degree
- Humidity 20~90%, non-condensing
- Altitude 16,000 ft
Storage / Non-operating
- Temperature -20 to 60°C degree
- Humidity 5~90%, non-condensing
- Altitude 40,000 ft
- Shock 10G acceleration (11ms duration)
- Vibration 5~500Hz 1G RMS random
Physical Specification
- Product ( W x D x H ) 441.6 x 460 x 44 mm 17.4 x 18.1 x 1.73 inch
- Packing ( W x D x H ) 590 x 808 x 140 mm 23.2 x 31.8 x 5.5 inch
- Net Weight 11.5 kgs / 25.3 lbs
- Gross Weight 16 kgs / 35.2 lbs
