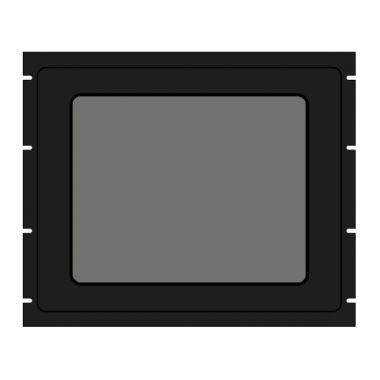

SL-LCD-17A-PCAPTOUCH-RK
9U 17" LED Monitor with Multi-Touch Projected Capacitive Touch Screen - 1280 x 1024 Resolution, 300 NITS Brightness, IP65 / NEMA4 Front Panel, Black
Included Rackmount Bracket
Industrial Display
- Screen Size (inches): 9U 17"
- Touch Type: Multi-Touch Projected Capacitive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 5 : 4
- Native Display Resolution: 1280 x 1024
- Brightness (nits): 300
- Ports: HDMI In, Display Port In
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
Related Products
Check items to add to the cart or
- Display
- Screen Size (inches): 9U 17
- Touch Type: Multi-Touch Projected Capacitive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 5 : 4
- Native Display Resolution: 1280 x 1024
- Brightness (nits): 300
- Screen Refresh Rate: 60Hz
- Display Area (H): 337.90mm
- Display Area (V): 270.30mm
- Aspect Ratio: 5 : 4
- DisplayColors: 16.2 M
- Contrast Ratio: 1000:1
- Backlight: LED
- Viewing Angle(U) : 80
- Viewing Angle(D) : 80
- Viewing Angle(L) : 80
- Viewing Angle(R) : 80
- Connectivity
- HDMI In: 1
- Display Port In: 1
- Touchscreen Interface USB Port (Front): 1
- Mounting Options
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):
- Physical
- Width:
- Height:
- Depth:
- Depth (Inches): Click Available Downloads Tab
- Unboxed Weight: 12lbs
- Shipping Weight: 35lbs
- Environmental
- MTBF: 30000hours
- Maximum Operating Temperature: 50C
- High Humidity: 90%
- Low Humidity: 8%
- Storage Temp (High): 60C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 8%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 20Watts
- Compliance of Component
- CE
- RoHS
- FCC
- CCC
- Warranty
- Warranty: 1 year
- Other
- Built-in Chassis Power Supply: Voltage Input: 9 - 36VDC
- Features:
- Display
- Screen Size: 17"
- Touch Type: Multi-Touch Projected Capacitive
- Front Panel Rating: IP65 / NEMA4
- Color: Black
- Native Display Resolution: 1280 x 1024
- Brightness (nits): 300
- Voltage Input: 9 - 36VDC
