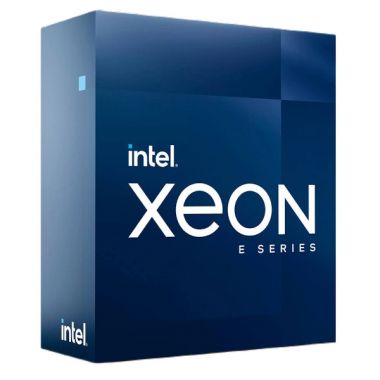

CPU-1200-XEON-E-2356G

CPU Specifications
Total Cores - 6

Total Threads - 12

Max Turbo Frequency - 5.00 GHz

Intel® Turbo Boost Technology 2.0 Frequency‡ - 5.00 GHz

Processor Base Frequency - 3.20 GHz

Cache - 12 MB Intel® Smart Cache

Bus Speed - 8 GT/s

TDP - 80 W

Supplemental Information
Marketing StatusLaunched

Launch Date - Q3'21

Servicing Status - Baseline Servicing

Embedded Options Available - No

Use Conditions - Server/Enterprise

Memory Specifications
Max Memory Size (dependent on memory type) - 128 GB

Memory Types - DDR4-3200

Max # of Memory Channels - 2

Intel® Optane™ Persistent Memory Supported - No

ECC Memory Supported ‡ - Yes

GPU Specifications
GPU Name‡ - Intel® UHD Graphics P750

Graphics Base Frequency - 350 MHz

Graphics Max Dynamic Frequency - 1.30 GHz

Graphics Video Max Memory - 64 GB

Execution Units - 32

4K Support - Yes, at 60Hz

Max Resolution (HDMI)‡ - 4096 x 2160 @60 Hz

Max Resolution (DP)‡ - 5120 x 3200 @ 60 Hz

Max Resolution (eDP - Integrated Flat Panel)‡ - 5120 x 3200 @ 60 Hz

DirectX* Support - 12.1

OpenGL* Support - 4.5

Intel® Quick Sync Video - Yes

Intel® InTru™ 3D Technology - Yes

Intel® Clear Video HD Technology - Yes

Intel® Clear Video Technology - Yes

# of Displays Supported ‡ - 1

Device ID - 0x4C9A

Expansion Options
Scalability - 1S Only

PCI Express Revision - 4.0

Microprocessor PCIe Revision - Gen 4

PCI Express Configurations ‡ - Up to 1x16+1x4, 2x8+1x4, 1x8+3x4

Max # of PCI Express Lanes - 20

Package Specifications
Sockets Supported - FCLGA1200

Max CPU Configuration - 1

TJUNCTION - 100 °C

Package Size - 37.5 mm x 37.5 mm

Advanced Technologies
Intel® Turbo Boost Technology ‡ - 2.0

Intel® Hyper-Threading Technology ‡ - Yes

Intel® Transactional Synchronization Extensions - No

Intel® 64 ‡ - Yes

Instruction Set - 64-bit

Instruction Set Extensions - Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512

Idle States - Yes

Enhanced Intel SpeedStep® Technology - Yes

Thermal Monitoring Technologies - Yes

Security & Reliability
Intel vPro® Eligibility ‡ - Intel vPro® Platform

Intel® AES New Instructions - Yes

Secure Key - Yes

Intel® Software Guard Extensions (Intel® SGX) - Yes with Intel® SPS

Default Maximum Enclave Page Cache (EPC) Size for Intel® SGX - 0.5 GB

Intel® Memory Protection Extensions (Intel® MPX) - Yes

Intel® OS Guard - Yes

Intel® Trusted Execution Technology ‡ - Yes

Execute Disable Bit ‡ - Yes

Intel® Boot Guard - Yes

Intel® Virtualization Technology (VT-x) ‡ - Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡ - Yes

Intel® VT-x with Extended Page Tables (EPT) ‡ - Yes
