CP8252

8 Isolated Digital Input Device

Complete Serial (RS-232) Hardware System
8 Digital Inputs (expandable)
5000 Volts Isolation
Includes:
- 8520 for direct RS-232

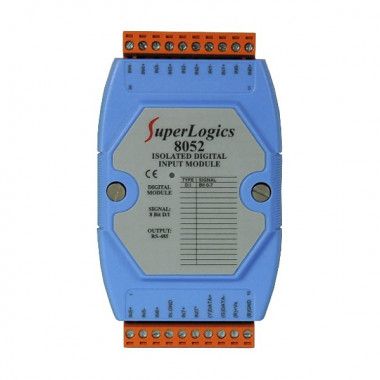

- 8052 (prewired)
- RS-232 Cable
- Power Supply
30 day trial of WINview CP 2012 Ready-to-Run Software
Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems

Hardware Specifications:

Digital Input:
- Channels: 8
- Input Type: Sink, Source, 6 fully independent channels and 2 common ground channels
- Off Voltage Level: +1V max
- On Voltage Level +4V to +30V
- Input Impedance 3K Ohms, 0.3W
- Counters:
  - Channels: 8
  - Max Counts :16-bit (65535)
  - Max Input Frequency: 100Hz
  - Min Pulse Width : 5ms
- Photo-Isolation: 5000Vrms
Interface:
- RS-485
- Format: N,8,1
- Baud Rate: 1200 ~ 115200 bps
- Connections: Terminal blocks (accepts 16-22 AWG wires)
LED Display:
- 1 LED as Power/Communication Indicator
Power:
- Input Voltage Range: +10 to +30V DC
- Power Consumption:0.4W
Protocol
- Support Modbus and DCON Protocol: Yes
Environment:
- Operating Temperature: -13 to 167°F (-25 to 75°C)
- Storage Temperature: -40 to 185°F (-40 to 85°C)
- Humidity: 5 to 95% RH, non-condensing
Environment:
- Operating Temperature: -13 to 167°F (-25 to 75°C)
- Storage Temperature: -40 to 185°F (-40 to 85°C)
- Humidity: 5 to 95% RH, non-condensing
