CP8260
4 TTL Digital Input/4 Relay Output Device
- Complete Serial (RS-232) Hardware System
- 4 isolated digital inputs with common power (expandable)
- 4 relay output channels (expandable)
- 3750 Vrms isolation

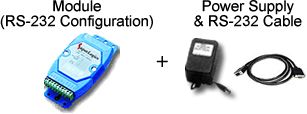

- Includes:
- 8520 for direct RS-232

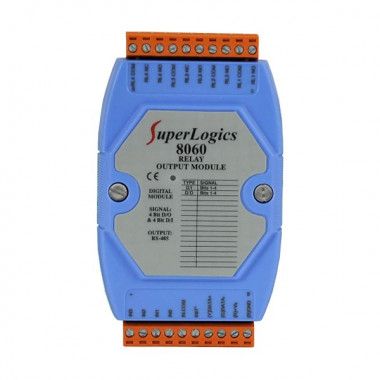

- 8060 (prewired)
- RS-232 Cable
- Power Supply
- 30 day trial of WINview CP 2012 Ready-to-Run Software
- Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
- WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems
Related Products
Check items to add to the cart or
- Relay Output
- Channels: 4
- Relay Type: Form A x2, Form C x2
- Contact Rating
- AC: 125V @0.6A; 250V @0.3A
- DC: 30V @2a; 110V @0.6a
- Operating Time(typical): 3ms
- Release Time(typical): 2ms
- Total Switching Time: 10ms
- Surge Strength: 500VAC (50/60Hz)
- Insulation Resistance: 10000MW min. at 500Vdc
- Interface:
- RS-485
- Format: N,8,1
- Baud Rate: 1200 ~ 115200 bps
- Connections: Terminal blocks (accepts 16-22 AWG wires)
- LED Display:
- 1 LED as Power/Communication Indicator
- Power:
- Input Voltage Range: +10 to +30V DC
- Power Consumption:1.3W
- Environment:
- Operating Temperature: -13 to 167°F (-25 to 75°C)
- Storage Temperature: -40 to 185°F (-40 to 85°C)
- Humidity: 5 to 95% RH, non-condensing
