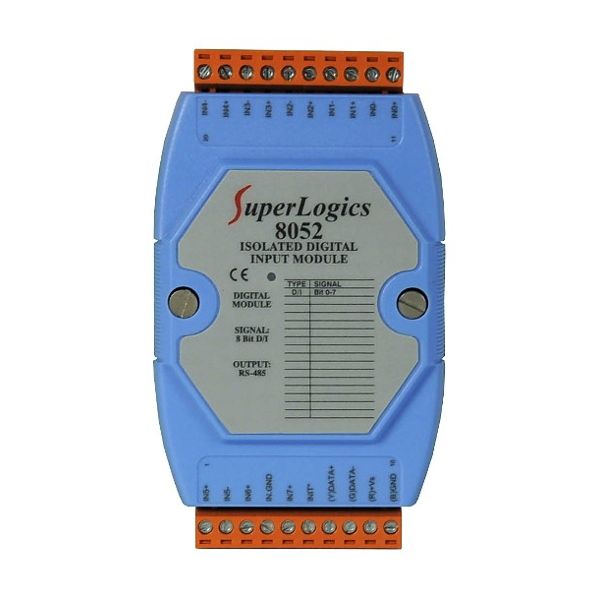

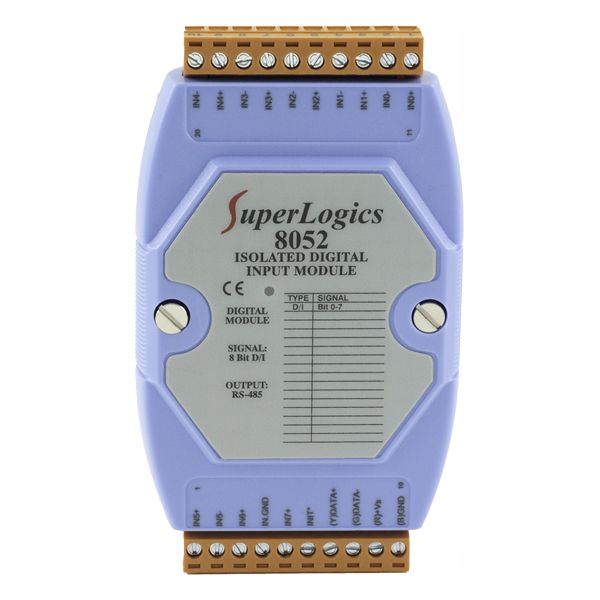

8052
8 Isolated Digital Input Module
- 8 Digital Inputs (expandable)
- 3.5 to 30 Volt Input for High Logic
- 1 Volt Max for Low Logic
- 5000 Volts Isolation
- 4 channels may also be used as low freq counters
- 30 day trial of WINview CP 2012 Ready-to-Run Software
- Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
- WINview is compatible with Windows XP SP3, Windows Vista and Windows 7 32-bit and 64-bit Operating Systems
Hardware Specifications:
- Digital Input:
- Channels: 8
- Input Type: Sink, Source, 6 fully independent channels and 2 common ground channels
- Off Voltage Level: +1V max
- On Voltage Level +4V to +30V
- Input Impedance 3K Ohms, 0.3W
- Counters:
- Channels: 8
- Max Counts :16-bit (65535)
- Max Input Frequency: 100Hz
- Min Pulse Width : 5ms
- Photo-Isolation: 5000Vrms
- Interface:
- RS-485
- Format: N,8,1
- Baud Rate: 1200 ~ 115200 bps
- Connections: Terminal blocks (accepts 16-22 AWG wires)
- LED Display:
- 1 LED as Power/Communication Indicator
- Power:
- Input Voltage Range: +10 to +30V DC
- Power Consumption:0.4W
- Protocol
- Support Modbus and DCON Protocol: Yes
- Environment:
- Operating Temperature: -13 to 167°F (-25 to 75°C)
- Storage Temperature: -40 to 185°F (-40 to 85°C)
- Humidity: 5 to 95% RH, non-condensing
- Environment:
- Operating Temperature: -13 to 167°F (-25 to 75°C)
- Storage Temperature: -40 to 185°F (-40 to 85°C)
- Humidity: 5 to 95% RH, non-condensing
