CP8218-S
8 Channel Strain Gage/Load Cell Data Acquisition Device (Serial Port DAQ) - Includes 30-Day trial of WINview CP 2012: Ready-to-Run Collection, Graphing & Logging Software, Fully Compatible with Windows XP SP3/Vista/7 32-bit & 64-bit operating systems.
- 8 Strain Gage Inputs
- Accepts Full Bridge Strain Gages and Load Cell inputs
- Adjsutable 4 to 15 Vdc regulated power supply for transducers and bridges Included
- Optional BCM-1 for 1/4 or 1/2 Bridge Strain Gages
- 16-Bit A/D Converter
- Expandable to 2048 Inputs with optional 8000 Modules
- Amplification for low level voltages
- Ready-to-Run System Includes:

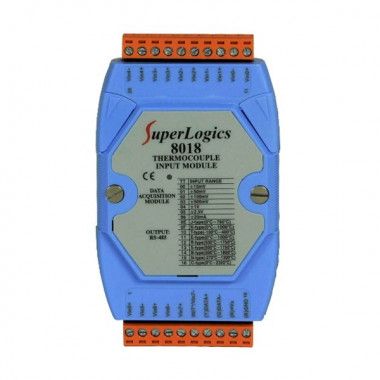

- 8520 for direct RS-232
- 8018 (prewired)
- PST-4130 Precision Power Supply
- RS-232 Cable
- Power Supply
- 30 day trial of WINview CP 2012 Ready-to-Run Software
- Includes Free CD with user Manuals, Visual Basic Examples, Drivers for DASYLab, Compatible with TestPoint, Software Utilities, and WINview CP, LINUX driver available upon request
- WINview is compatible with Windows XP SP3, Windows Vista, Windows 7, Windows 8, and Windows 10 32-bit and 64-bit Operating Systems
Related Products
Check items to add to the cart or
Hardware Specifications:
- Analog Input:
- Input Channels: 8 differential or 6 differential and 2 single-ended by jumper select
- Input type : +/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-20mA (requires optional external 125 ohm resistor), Thermocouple)
- Thermocouple Type: J, K, T, E, R, S, B, N, C
- Resolution: 16 bit
- Sampling Rate of Module: 10 Samples/1 Second
- Accuracy: ±0.1%
- Bandwidth: 15.7Hz
- Zero Drift: 0.5uV/°C
- Span Drift: ±25ppm/°C
- Common Mode Rejection @50/60Hz: 150dB min
- Normal Mode Rejection @ 50/60Hz: 100dB
- Input Impedance: Voltage: 20M Ohms
- Over Voltage Protection: +/- 35V
- Open Thermocouple Detection: No
- Photo Isolation: 3750 Vrms
- Intra-Module Isolation: 3000VDC
- Interface:
- RS-485
- Format: N,8,1
- Baud Rate: 1200 ~ 115200 bps
- Connections: Terminal blocks (accepts 16-22 AWG wires)
- LED Display:
- 1 LED as Power/Communication Indicator
- Power:
- Input Voltage Range: +10 to +30V DC
- Power Consumption: 1.0W
- Environment:
- Operating Temperature: -13 to 167°F (-25 to 75°C)
- Storage Temperature: -40 to 185°F (-40 to 85°C)
- Humidity: 5 to 95% RH, non-condensing
Thermocouple Type
Type Range°C J -210 ~ +760 K -270 ~ +1372 T -270 ~ +400 E -270 ~ +1000 R 0 ~ +1768 S 0 ~ +1768 B 0 ~ +1820 N -270 ~ 1300 C 0 ~ 2320
