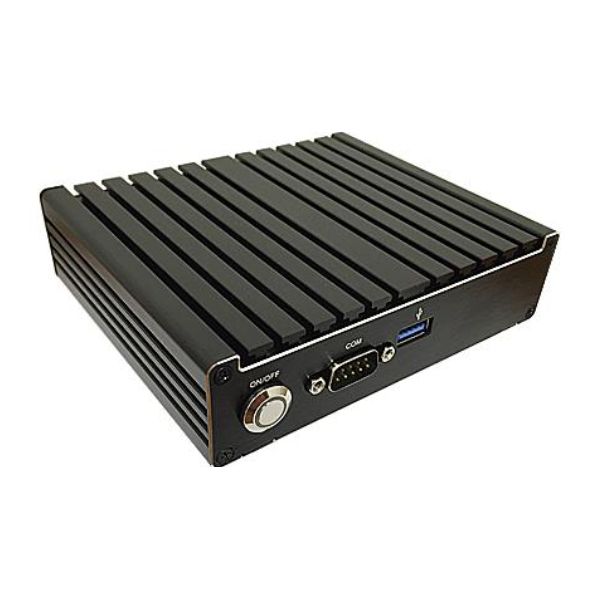

SL-EB-N2930-1LAN-AC
Microbox PC - Embedded PC featuring Long Production Cycle Motherboard (Through Q1 2029) with Intel Celeron SoC, Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W, 1x 1GbE (10/100/1000) LAN, WIFI, Up to 8GB RAM, 2x USB 2.0 Ports ( 2 Rear ), 1x USB 3.2 Gen 1 Port( 1 Front ), Dimensions of Enclosure: 4.29"L x 5.08"W x 1.34"H, Power Supply 9V - 24V DC In Jack.
FANLESS MINI PC
Type:
- Microbox PC
- Dimension: 109mm x 129mm x 34mm
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
- Long Production Cycle Motherboard (Through Q1 2029)
- LAN: 1x Ports (1GbE (10/100/1000))
- WiFi: Wireless AC
- Video: HDMI
- Audio: Onboard Audio
- Ports:
2x USB 2.0 Ports ( 2 Rear )
1x USB 3.2 Gen 1 Port( 1 Front )
See specifications for more ports - Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF)

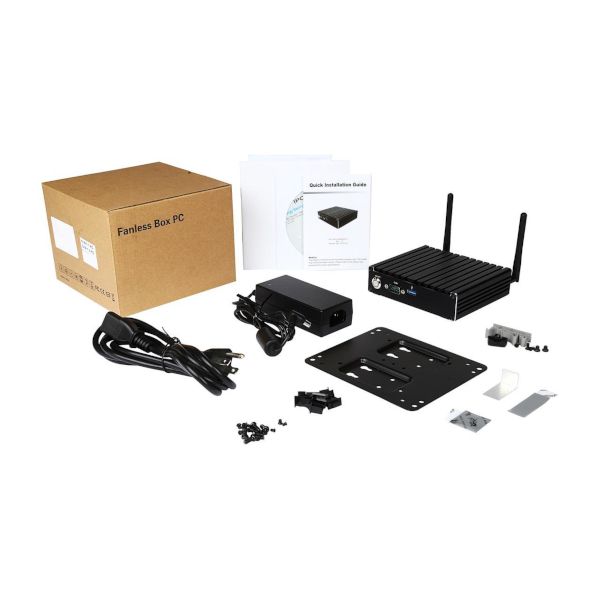

Also Included:
- Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
- Hard Drive: 256GB mSATA SSD SATA 6.0Gb/s, 550/500MB/s read/write (or greater)
- Power Supply: 9V - 24V DC In Jack
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: NUC (101x101 mm)
- Long Production Cycle
- Long Life: YES
- EOL Date: Q1 2029
- Fanless
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
- Chipset
- Chipset: Intel Celeron SoC
- Memory
- Memory Type: SO DIMM DDR3 1333MHz
- Memory Type: Non-ECC
- DIMMS: 1
- Maximum Memory: 8GB
- On Board Audio
- Audio Type: Onboard Audio
- On Board Video
- Video Chipset: Supported by CPU - see Embedded CPU Information
- Video on IO: HDMI
- HDMI Out: 2
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Intel® 82574L
- Wireless LAN: Wireless AC
- Expansion Slots
- mSATA
- half and/or full size mini PCIe card: full size
- M.2 Slot Specs

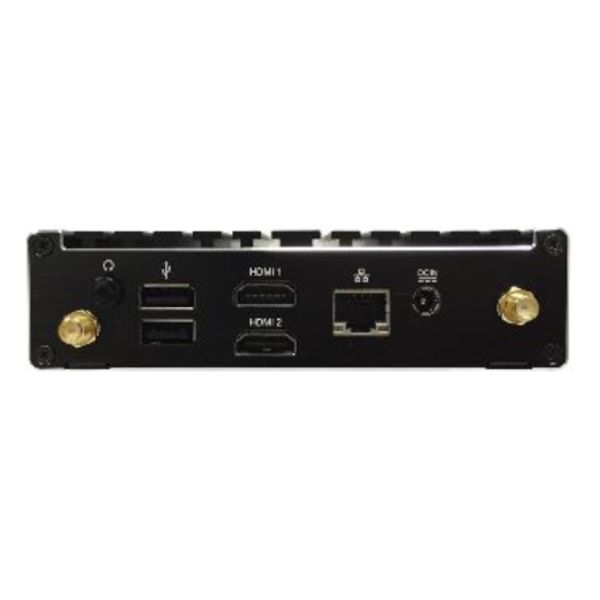

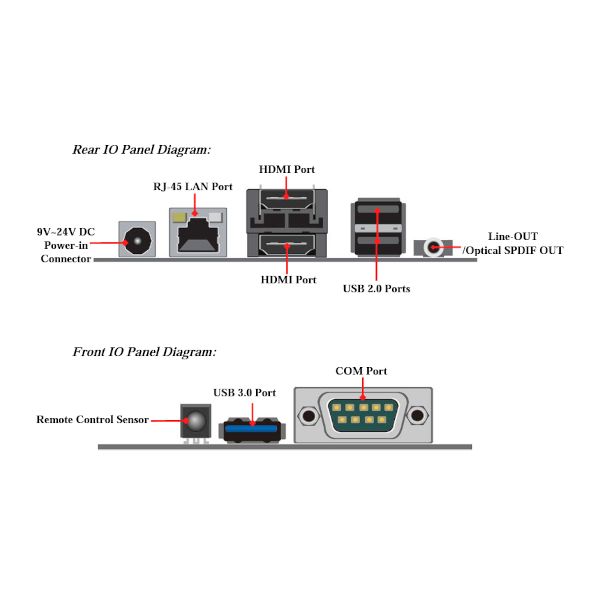

- Rear IO
- USB 2.0 Ports (on IO): 2
- Headers
- USB 3.2 Gen 1 Ports (on Headers): 1
- Environmental
- Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF )
- High Humidity: 95%
- Low Humidity: 10%
- Operating System Support
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- Windows 7 PRO (FES) DGS 32-BIT
- Windows 7 PRO (FES) DGS 64-BIT
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 10 IoT 2021 LTSC Entry
- SL-Windows 11PRO to 10PRO 32bit
- SL-Windows 11PRO to 10PRO 64bit
- LINUX Ubuntu Desktop
- Compliance of Component
- CE
- RoHS
- FCC
- Warranty of Component
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: NUC Box
- Front Facing I/O
- Color: Black
- Material: Steel & Plastic
- Material Thickness: 1mm

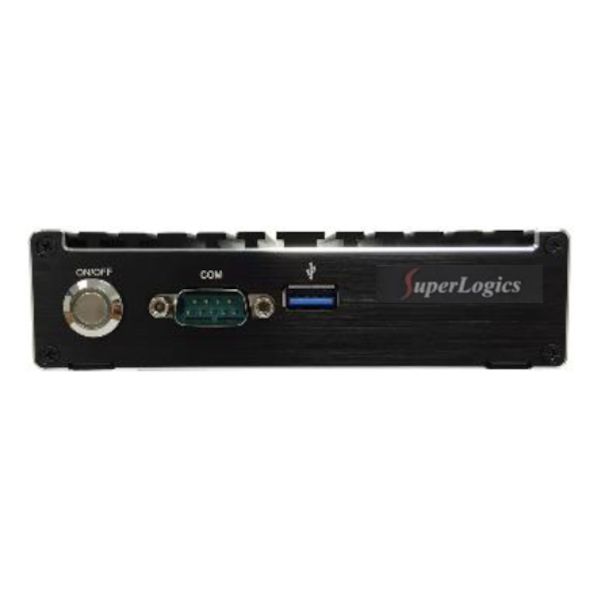

- Front Ports
- USB 3.2 Ports (Front): 1
- RS232 COM Ports (Front): 1
- Physical
- Depth: 109mm
- Depth (Inches): 4.295
- Width: 129mm
- Height: 34mm
- Shipping Box - Depth:
- Shipping Box - Width:
- Shipping Box - Height:
- Shipping Weight:
- Power
- Built-in Chassis Power Supply: 9V - 24V DC In Jack
