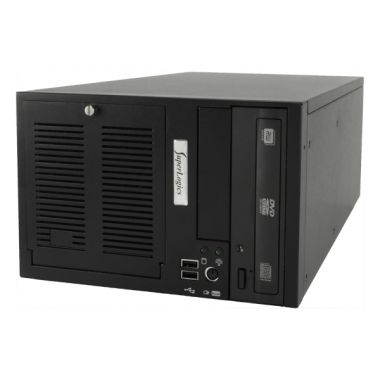

SL-MB-SBC-Q170-BA
Microbox PC - Embedded PC featuring Long Production Cycle Motherboard (Through Q3 2027) with Intel Q170 Chipset, 6th Gen Core i7/i5/i3 (LGA1151, ‘Skylake’), 2x 1GbE + 1GbE LAN, 6x Serial, Up to 32GB RAM, 10x USB 2.0 Ports ( 2 Front, 8 Internal Headers ), 2x USB 3.2 Gen 1 Ports ( 2 Rear ), 4x Expansion Slots, Dimensions of Enclosure: 15.80"L x 9.45"W x 6.10"H.
Type:
- Microbox PC
- Dimension: 15.80" x 9.45" x 6.10"
Motherboard:
- Featuring Intel Q170 Chipset and 6th Gen Core i7/i5/i3 (LGA1151, ‘Skylake’) processor
- Long Production Cycle Motherboard (Through Q3 2027)
- Full Height Slots:
1 - PCIe x16
3 - PCI - LAN: 2x Ports (1GbE + 1GbE)
- RAID: 0,1
- Video: DVI-I
- Audio: Onboard Audio
- Ports:
10x USB 2.0 Ports ( 2 Front, 8 Internal Headers )
2x USB 3.2 Gen 1 Ports ( 2 Rear )
6x COM Ports (5 RS232 Internal Headers, 1 RS232/422/485 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
- Memory: 8GB DDR4 2666MHz RAM
- Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: Single Board Computer (SBC)
- Long Production Cycle
- Long Life: YES
- EOL Date: Q3 2027
- PICMG: 1.3
- Supported CPU
- Number of Processors: 1
- Processor Type: 6th Gen Core i7/i5/i3 (LGA1151, ‘Skylake’)
- Chipset
- Chipset: Intel Q170 Chipset
- Memory
- Memory Type: DDR4 2133MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 32GB
- On Board Audio
- Audio Type: Onboard Audio
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: DVI-I
- DVI-I Out: 1
- LAN
- LAN Ports: 2
- LAN Type: 1GbE + 1GbE
- LAN Chipset: Intel® i211AT
- Second LAN Chipset: Intel® i219LM
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 6
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- M.2 Slot Specs

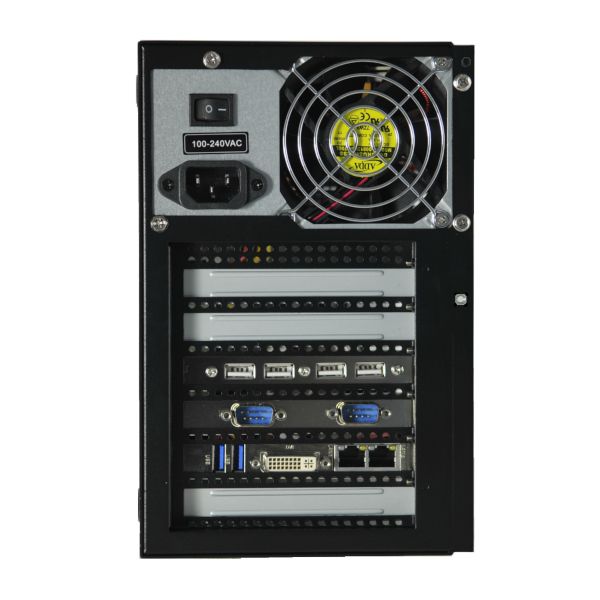

- Rear IO
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- Headers
- USB 2.0 Ports (on Headers): 10
- Serial (via Headers): 5
- Serial 232/422/485 Ports: 1
- FAN Connectors: 2
- PS/2 Combo (Mouse/Keyboard) on Headers
- Environmental
- Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
- High Humidity: 95%
- Low Humidity: 10%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- Windows 7 PRO (FES) DGS 32-BIT
- Windows 7 PRO (FES) DGS 64-BIT
- SL-Windows 10PRO to 7PRO 32-bit
- SL-Windows 10PRO to 7PRO 64-bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (32-bit)
- Windows 8.1 Pro (64-bit)
- Windows Embedded 8 (32-bit)
- Windows Embedded 8 (64-bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT Value
- Windows 10 IoT Ent
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- Windows 10 IoT 2021 LTSC Value
- Windows 10 IoT 2021 LTSC High End
- Windows Server 2012
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- LINUX Ubuntu Workstation
- Ubuntu Server Edition
- Compliance of Component
- CE
- Other Features
- Motherboard Warranty: 1 Year

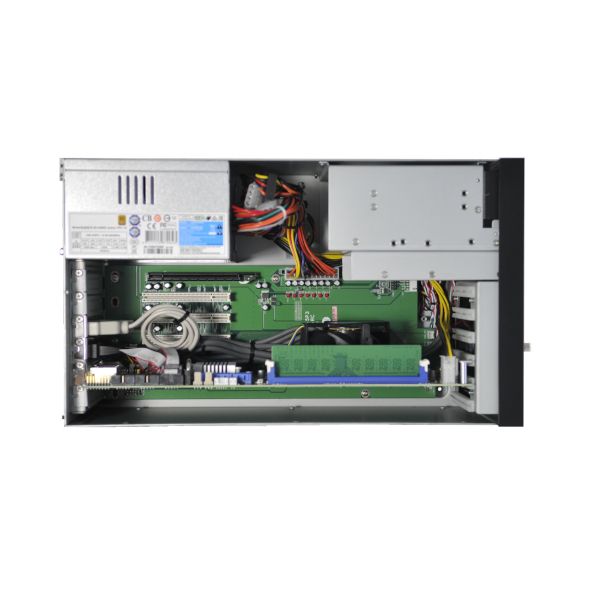

Chassis Specifications:
- General
- Form Factor: Embedded PC
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: 6-Slot SBC
- Slide Rails: Optional
- Expansion
- Full Height Slots: 6
- Max Card Depth: 13.25"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 1
- External 3.5" Bays: 1
- Front Ports
- USB 2.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 1
- Included Fans: 1
- Physical
- Depth: 15.80"
- Depth (Inches): 15.8
- Width: 9.45"
- Height: 6.10"
- Shipping Box - Depth: 11"
- Shipping Box - Width: 21"
- Shipping Box - Height: 15"
- Shipping Weight: 26lbs
- Other Features
- Chassis Warranty: 1 Year
