SL-DK-AB660M-FD

Name: SL-DK-AB660M-FD
SKU: SL-DK-AB660M-FD

A newer version of this item is available: SL-DK-AB760M-FD

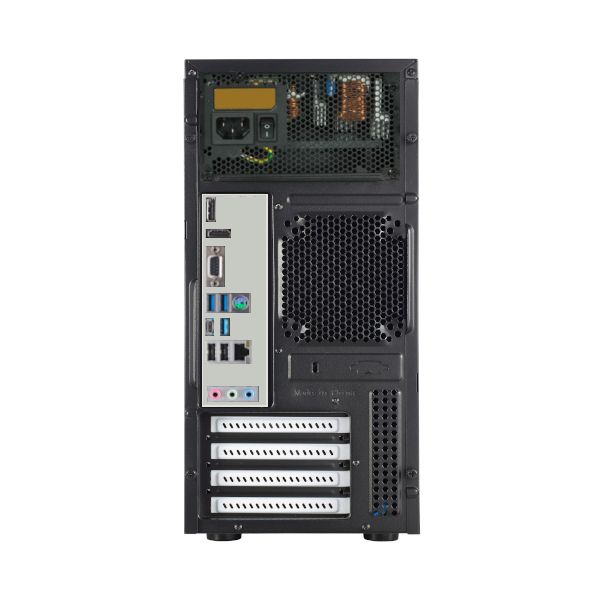

Desktop PC - Desktop featuring Intel B660 Chipset, 12th Gen Core, Pentium Gold and Celeron (LGA1700), 1x 1GbE (10/100/1000) LAN, 1x Serial, Up to 64GB RAM, 5x USB 2.0 Ports ( 1 Front, 2 Rear, 2 Internal Headers ), 5x USB 3.2 Gen 1 Ports ( 1 Front, 3 Rear, 1 Internal Headers ), 1x USB 3.2 Gen 1 Type-C Port (Rear), 3x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

Desktop PC
Dimension: 410mm x 175mm x 358mm

Motherboard:

Featuring Intel B660 Chipset and 12th Gen Core, Pentium Gold and Celeron (LGA1700) processor
Full Height Slots:
1 - PCIe x16
2 - PCIe x1
LAN: 1x Ports (1GbE (10/100/1000))
Video: VGA + DisplayPort + HDMI
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Ports:
5x USB 2.0 Ports ( 1 Front, 2 Rear, 2 Internal Headers )
5x USB 3.2 Gen 1 Ports ( 1 Front, 3 Rear, 1 Internal Headers )
1x USB 3.2 Gen 1 Type-C Port (Rear)
1x COM Port (RS232 Internal Headers)
1x Front Audio Port
See specifications for more ports
Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF)

Also Included:

Processor: G7400- 3.70GHz Intel Pentium Gold CPU - Dual Core, 6MB Cache, UHD Graphics 710 (Base 46W) (ERM)
Memory: 8GB DDR4 3200MHz RAM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: 400W Power Supply
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

G6900- 3.40GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 710 (46W) (ERM) show $105.00

G7400- 3.70GHz Intel Pentium Gold CPU - Dual Core, 6MB Cache, UHD Graphics 710 (Base 46W) (ERM) show $146.00

i3-12100 - 3.30GHz (up to 4.30GHz) Intel Core CPU - 4 Core, 12MB Cache, UHD Graphics 730 (Base 60W, Max 89W) (ERM) show $182.00

i5-12400 - 2.50GHz (up to 4.40GHz) Intel Core CPU - 6 Cores, 18MB Cache, UHD Graphics 730 (Base 65W, Max 117W) (ERM) show $245.00

Memory

x 8GB DDR4 3200MHz RAM show $28.00

x 16GB DDR4 3200MHz RAM show $45.00

x 32GB DDR4 3200MHz RAM show $104.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

5.25" CD/DVD Burner show $31.00

5.25" Blu-Ray 16x Readable & ReWriteable Drive show $148.00

Removable Drive Bay

1x 3.5" Hard Drive Aluminum Removable Bay (Require a 5.25" external bay) show $53.00 each

Replacement Caddy for SL-HDD-MR-SATA-MIL HDD Rack show $33.00 each

Add an Enterprise 2 x 2.5" SATA Hard Drive or SSD Mobile Rack with Full Metal Construction with Lock - show $102.00 each

Replacement Tray for SL-HDD-MR-1FDD-2SSD..7-9.5mm Height, show $48.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage show $208.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage with Locks. show $280.00 each

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot show $160.00 each

Additional Hard Drives

250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980 show $83.00 each

500GB NVMe SSD M.2 3.1GB/2.6GB - Samsung 980 show $105.00 each

1TB PCIe 5.0 NVMe SSD M.2 5,000/4,200MB/s - Samsung 990 EVO show $111.00 each

2TB PCIe 5.0 NVMe SSD M.2 5,000/4,200MB/s - Samsung 990 EVO show $172.00 each

1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $161.00 each

2TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $215.00 each

4TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $401.00 each

4TB SSD M.2 NVMe SSD - 7300MB/6600MB - WD Black show $424.00 each

240GB SATA 3 2.5" SSD - 500/350MB Read/Write or greater. show $48.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $91.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $170.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $240.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $402.00 each

1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue show $88.00 each

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series show $170.00 each

4.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E8 Series show $218.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS 7E8 Series show $323.00 each

12TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS X18 Series show $422.00 each

16TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS X18 Series show $440.00 each

2.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $122.00 each

4.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $153.00 each

4.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $136.00 each

6.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $182.00 each

Cable

Add 1 DB9 Serial Port 9-pin Serial to 10-pin Header 16" show $7.00 each

Add 2 USB 2.0 Ports via connections from onboard header. show $14.00 each

TPM 2.0 Module - SPI Interface, Compliant to TPM Main Specification, Family "2.0", Level 00, Revision show $34.00 each

3 ft HDMI® to DVI-D Cable - M/M show $8.00 each

6 ft HDMI® to DVI-D Cable - M/M show $10.00 each

DisplayPort to DVI-D Video Adapter Converter *DVI-D (digital only, will not work with a DVI-I to VGA show $15.00 each

DisplayPort® to HDMI® Video Adapter Converter show $29.00 each

DisplayPort to VGA Video Adapter Converter show $33.00 each

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $61.00 each

4-Port USB 3.2 Gen 1 PCIe Card - PCIe x1, Full-Height Only show $30.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

Networking

M.2 2230 - Intel Wireless-AC module via internal M.2 slot. show $46.00 each

USB 2.0 - Mini Dual Band Wireless-AC Network Adapter show $52.00 each

PCIe x1 - WiFi 6 802.11ax Bluetooth 5.0 - Wi-Fi/Bluetooth Combo Adapter - 2.93 Gbit/s - 2.40 GHz ISM - show $77.00 each

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $36.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $250.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $243.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 10/100/1000/2500Mbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Pr show $46.00 each

PCIe x4 - 100/1000/2500/5000Mbps Single Port Network Adapter - Full Height or Low Profile show $120.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $284.00 each

Power Supply

400W Power Supply show $87.00

600W Power SupplyPart Delay: ETA December 30, 2024 show $121.00

850W ATX12V / EPS12V Full Modular Power Supply - 80+ Gold Certified show $232.00

1200W 80 PLUS GOLD ATX3.0 PCIE5 Modular Power Supply show $370.00

Monitors

Asus VP229Q 21.5" Full HD LED LCD Monitor - 16:9 - Black - 22" Class - In-plane Switching (IPS) Techno show $151.00 each

23.8" 16:9 75 Hz Adaptive-Sync IPS Monitor show $148.00 each

27" Monitor, 1080P Full HD, 75Hz, IPS, Adaptive-Sync, Eye Care, HDMI DisplayPort VGA USB Hub, Frameles show $228.00 each

29" HDR10 IPS Full HD UltraWide™ Monitor (2560x1080) with AMD FreeSync™, MAXXAudio®, Flic show $275.00 each

32" 4K UHD 3840 x 2160 Monitor Featuring Wide Color Gamut and FreeSync show $412.00 each

34" Ultra-Wide Freesync HDR Gaming Monitor 75Hz 1440P Eye Care DisplayPort HDMI,Black show $518.00 each

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $118.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $178.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $138.00 each

USB Keyboard/Mouse - Waterproof, NEMA4 show $502.00 each

USB Keyboard/Mouse - Waterproof, IP67/NEMA4x show $672.00 each

External Power

None show Included

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop/Wall Mount show $125.00

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop / Wall Mount show $145.00

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & Serial ports show $595.00

Tripp Lite Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $95.00

* Required Fields

Technical Specifications

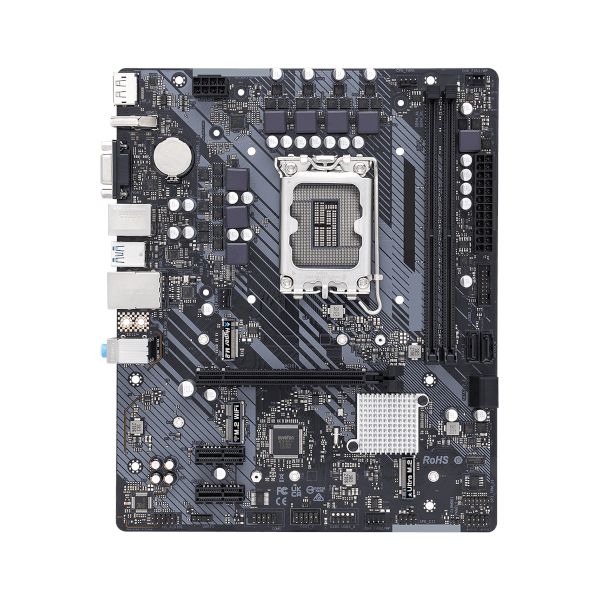

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MicroATX
Supported CPU
Number of Processors: 1
Processor Type: 12th Gen Core, Pentium Gold and Celeron (LGA1700)
Chipset
Chipset: Intel B660 Chipset
Memory
Memory Type: DDR4 2666MHz
Memory Type: Non-ECC
DIMMS: 2
Maximum Memory: 64GB
On Board Audio
Audio Type: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: VGA + DisplayPort + HDMI
VGA Port Out: 1
Display Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 1
LAN Type: 1GbE (10/100/1000)
LAN Chipset: Intel® i219V
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 4
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 1
PCI Express x1 Slots On Motherboard: 2
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
PCIe Signal
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
M.2 SATA SSD
PCIe Signal
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.

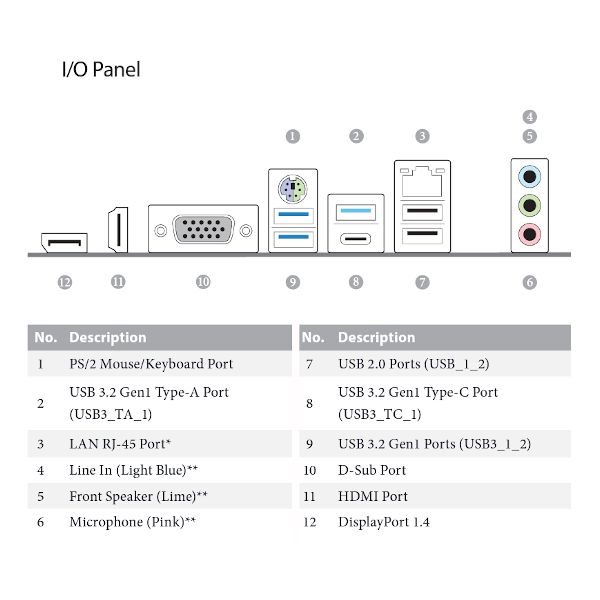

Rear IO
PS/2 Combo (Mouse/Keyboard)
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 1 Type A Ports (on IO): 3
USB 3.2 Gen 1 Type C Ports (on I/O): 1
Audio on IO
Headers
USB 2.0 Ports (on Headers): 3
USB 3.2 Gen 1 Ports (on Headers): 2
Serial (via Headers): 1
FAN Connectors: 4
Audio on Headers
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF )
High Humidity: 90%
Low Humidity: 5%
Operating System Support
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT Value 2019 LTSC
Windows 10 IoT Ent 2019 LTSC
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC Value
Windows 11 IoT 2024 LTSC High End
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
CE
FCC
Other Features
Features:
Note:
- - 1 x PCIe Gen4x16 Slot*
  - 2 x PCIe Gen3x1 Slots
  - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode**
  - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes**
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year
