SL-DK-AX299WS-FW

Name: SL-DK-AX299WS-FW
SKU: SL-DK-AX299WS-FW

Desktop PC - Desktop featuring Intel X299 Chipset, Intel® Core™ X-series Processors ( FCLGA2066), 2x 1GbE + 1GbE LAN, 1x Serial, Up to 128GB RAM, 4x USB 2.0 Ports ( 4 Rear ), 8x USB 3.2 Gen 1 Ports ( 2 Front, 6 Rear ), 1x USB 3.2 Gen 2 Port ( 1 Rear ), 2x USB 3.2 Gen 2 Type-C Ports ( 1 Rear, 1 Internal Headers ), 7x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Please call for availability.

Type:

Desktop PC
Dimension: 547mm x 240mm x 475mm

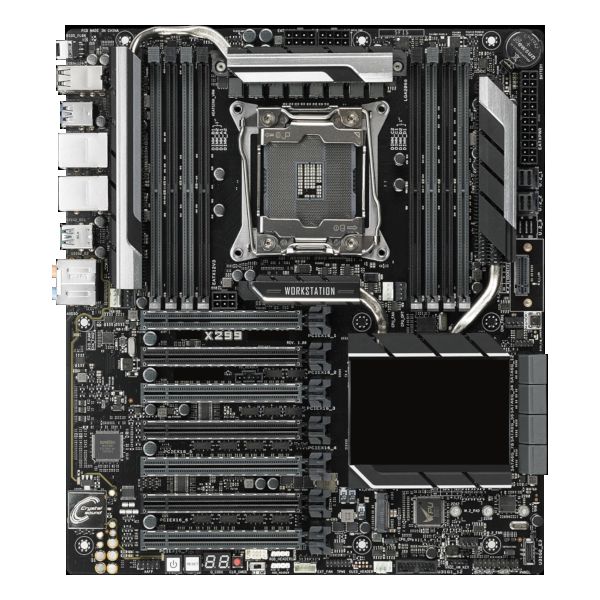

Motherboard:

Featuring Intel X299 Chipset and Intel® Core™ X-series Processors ( FCLGA2066) processor
Full Height Slots:
7 - PCIe x16
LAN: 2x Ports (1GbE + 1GbE)
RAID: 0,1,5,10
Video: None
Audio: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
Ports:
4x USB 2.0 Ports ( 4 Rear )
8x USB 3.2 Gen 1 Ports ( 2 Front, 6 Rear )
1x USB 3.2 Gen 2 Port ( 1 Rear )
2x USB 3.2 Gen 2 Type-C Ports ( 1 Rear, 1 Internal Headers )
1x COM Port (RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

Processor: i9-10900X - 3.7GHz (up to 4.5GHz) Intel Deca (10) Core CPU - 19.25MB Cache, No Onboard Graphics (165W)
Memory: 4 x 8GB DDR4 3200MHz RAM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: 600W Power Supply
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

i9-10900X - 3.7GHz (up to 4.5GHz) Intel Deca (10) Core CPU - 19.25MB Cache, No Onboard Graphics (165W) show $1,100.00

i9-10920X - 3.5GHz (up to 4.6GHz) Intel Dodeca (12) Core CPU - 19.25MB Cache, No Onboard Graphics (165W) show $1,182.00

i9-10940X - 3.3GHz (up to 4.6GHz) Intel Tetradeca (14) Core CPU - 19.25MB Cache, No Onboard Graphics (165W) show $1,315.00

i9-10980XE - 3.0GHz (up to 4.6GHz) Intel Octadeca (18) Core CPU - 24.75MB Cache, No Onboard Graphics (165W) show $1,794.00

Memory

x 8GB DDR4 3200MHz RAM show $28.00

x 16GB DDR4 3200MHz RAM show $45.00

x 32GB DDR4 3200MHz RAM show $104.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

5.25" CD/DVD Burner show $31.00

5.25" Blu-Ray 16x Readable & ReWriteable Drive show $148.00

Removable Drive Bay

1x 3.5" Hard Drive Aluminum Removable Bay (Require a 5.25" external bay) show $53.00 each

Replacement Caddy for SL-HDD-MR-SATA-MIL HDD Rack show $33.00 each

Add an Enterprise 2 x 2.5" SATA Hard Drive or SSD Mobile Rack with Full Metal Construction with Lock - show $102.00 each

Replacement Tray for SL-HDD-MR-1FDD-2SSD..7-9.5mm Height, show $48.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage show $208.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage with Locks. show $280.00 each

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot show $160.00 each

Additional Hard Drives

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - WD GOLD Series show $160.00 each

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series show $170.00 each

4.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $216.00 each

4.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E8 Series show $218.00 each

6.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $265.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $333.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS 7E8 Series show $323.00 each

10.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $360.00 each

12.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $428.00 each

14.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $435.00 each

16.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $480.00 each

18.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $660.00 each

12TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS X18 Series show $422.00 each

2.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $122.00 each

4.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $153.00 each

4.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $136.00 each

6.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $182.00 each

250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980 show $83.00 each

500GB NVMe SSD M.2 3.1GB/2.6GB - Samsung 980 show $105.00 each

1TB PCIe 5.0 NVMe SSD M.2 5,000/4,200MB/s - Samsung 990 EVO show $111.00 each

2TB PCIe 5.0 NVMe SSD M.2 5,000/4,200MB/s - Samsung 990 EVO show $172.00 each

240GB SATA 3 2.5" SSD - 500/350MB Read/Write or greater. show $48.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $91.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $170.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $240.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $402.00 each

Raid Controller

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Cable

Add 1 DB9 Serial Port 9-pin Serial to 10-pin Header 16" show $7.00 each

Add 2 USB 3.x A Female Ports via internal USB header cable show $25.00 each

TPM 2.0 Module - TCG Compliance: TCG PC Client Platform TPM Profile (PTP) Specification; Family 2.0 (T show $29.00 each

Add-On Card Model THUNDERBOLT 3 AIC. Supports 40 Gbps bi-directional bandwidth per channel with Thund show $104.00 each

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $61.00 each

4-Port USB 3.2 Gen 1 PCIe Card - PCIe x1, Full-Height Only show $30.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

Add-In Graphic Card

NVIDIA GeForce RTX 4060 8GB 128-Bit GDDR6 PCIe 4.0 x16 - Recommended 450W PSU show $449.00 each

NVIDIA GeForce RTX 4060 8GB 128-Bit GDDR6 PCIe 4.0 x16, VR Ready, DisplayPort 1.4a (x3), HDMI 2.1a (x1 show $465.00 each

NVIDIA GeForce RTX 4070 12GB 192-Bit GDDR6X PCIe 4.0, DisplayPort 1.4a (x3), HDMI 2.1 (x1) - Requires show $805.00 each

NVIDIA GeForce RTX 4080 Super 16GB 256-Bit GDDR6X PCIe 5.0 x16, VR Ready, Quad Display - Recommended 7 show $1,798.00 each

NVIDIA Quadro T400 4GB 64-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 - N show $196.00 each

NVIDIA Quadro T1000 4GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - show $464.00 each

NVIDIA Quadro T1000 8GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - show $500.00 each

NVIDIA RTX A400 4GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Com show $210.00 each

NVIDIA RTX A1000 8GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Co show $540.00 each

NVIDIA Quadro RTX A2000 12GB GDDR6, PCIe 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height C show $791.00 each

NVIDIA Quadro RTX A4000 16GB GDDR6, PCIe 4.0 x16 show $1,355.00 each

NVIDIA Quadro RTX A4500 20GB GDDR6, PCIe 4.0 x16 show $2,103.00 each

NVIDIA Quadro RTX A6000 48GB GDDR6 with ECC, PCIe 4.0 x16 show $6,308.00 each

NVIDIA Quadro RTX 4000 Ada 20GB GDDR6 with ECC, PCIe 4.0 x16 - Support Low Profile show $1,740.00 each

NVIDIA Quadro RTX 4500 Ada 24GB GDDR6 with ECC, PCIe 4.0 x16 show $3,263.00 each

NVIDIA Quadro RTX 5000 Ada 32GB GDDR6 with ECC, PCIe 4.0 x16 show $5,748.00 each

NVIDIA Quadro RTX 6000 Ada 48GB GDDR6 with ECC, PCIe 4.0 x16 show $9,750.00 each

Networking

PCIe x1 - WiFi 6 802.11ax Bluetooth 5.0 - Wi-Fi/Bluetooth Combo Adapter - 2.93 Gbit/s - 2.40 GHz ISM - show $77.00 each

USB 2.0 - Mini Dual Band Wireless-AC Network Adapter show $52.00 each

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $36.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $250.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $243.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 10/100/1000/2500Mbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Pr show $46.00 each

PCIe x4 - 100/1000/2500/5000Mbps Single Port Network Adapter - Full Height or Low Profile show $120.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $284.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $712.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $857.00 each

Power Supply

600W Power SupplyPart Delay: ETA December 30, 2024 show $121.00

850W ATX12V / EPS12V Full Modular Power Supply - 80+ Gold Certified show $232.00

1200W 80 PLUS GOLD ATX3.0 PCIE5 Modular Power Supply show $370.00

Operating System

None show Included

Microsoft Windows 11 Pro Downgrade to Windows 10 Pro 64-Bit. Includes Windows 11 Product Key Only. show $219.00

Ubuntu Desktop Edition Standard (Latest LTS Compatible). Community Support Only. Installation CD Not Included. show $49.00

Monitors

Asus VP229Q 21.5" Full HD LED LCD Monitor - 16:9 - Black - 22" Class - In-plane Switching (IPS) Techno show $151.00 each

23.8" 16:9 75 Hz Adaptive-Sync IPS Monitor show $148.00 each

27" Monitor, 1080P Full HD, 75Hz, IPS, Adaptive-Sync, Eye Care, HDMI DisplayPort VGA USB Hub, Frameles show $228.00 each

29" HDR10 IPS Full HD UltraWide™ Monitor (2560x1080) with AMD FreeSync™, MAXXAudio®, Flic show $275.00 each

32" 4K UHD 3840 x 2160 Monitor Featuring Wide Color Gamut and FreeSync show $412.00 each

34" Ultra-Wide Freesync HDR Gaming Monitor 75Hz 1440P Eye Care DisplayPort HDMI,Black show $518.00 each

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $118.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $178.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $138.00 each

USB Keyboard/Mouse - Waterproof, NEMA4 show $502.00 each

USB Keyboard/Mouse - Waterproof, IP67/NEMA4x show $672.00 each

External Power

None show Included

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop/Wall Mount show $125.00

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop / Wall Mount show $145.00

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & Serial ports show $595.00

Tripp Lite Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $95.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: SSI CEB
Supported CPU
Number of Processors: 1
Processor Type: Intel® Core™ X-series Processors ( FCLGA2066)
Chipset
Chipset: Intel X299 Chipset
Memory
Memory Type: DDR4 2666MHz
Memory Type: Non-ECC
DIMMS: 8
Maximum Memory: 128GB
On Board Audio
Audio Type: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: None
LAN
LAN Ports: 2
LAN Type: 1GbE + 1GbE
LAN Chipset: Intel® i210AT
Second LAN Chipset: Intel® i219LM
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 8
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 7
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
PCIe Signal
22110 - 22 mm x 110 mm.
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
PCIe Signal
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.

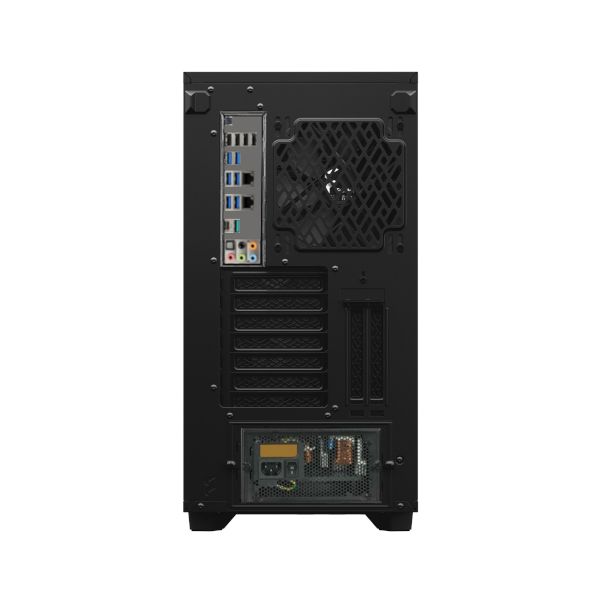

Rear IO
USB 2.0 Ports (on IO): 4
USB 3.2 Gen 1 Type A Ports (on IO): 6
USB 3.2 Gen 2 Type A Ports (on IO): 1
USB 3.2 Gen 2 Type C Ports (on I/O): 1
SPDIF Connector: 1
Audio on IO
Headers
USB 3.2 Gen 1 Ports (on Headers): 2
USB 3.2 Gen 2 Type-C (on Headers): 1
Thunderbolt 3 via Header: 1
Serial (via Headers): 1
FAN Connectors: 4
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
High Humidity: 90%
Low Humidity: 20%
Operating System Support
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
RoHS
FCC
Other Features
Features:
7 x PCIe 3.0/2.0 x16 (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8)

PCIe speed may vary due to processor's limitation. Please check processor's specs for # of PCIe Lanes.

Supports NVIDIA® 4-Way SLI™ Technology
Supports AMD 4-Way CrossFireX Technology
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: Full Tower
Front Facing I/O
Front Changeable Air Filter
Color: Black
Material: Metal/Steel
Material Thickness: 1mm
Motherboard Compatibility: E-ATX
Expansion
Full Height Slots: 7
Max Card Depth: Storage layout: 315 mm - Open layout: 491 mm (467 mm w/ front fan)"
External 5.25" Bays: 1
Internal 3.5" Bays: 6
Internal 2.5" Bays: 2
Front Ports
USB 3.2 Ports (Front): 5
Front Audio Ports: 1
Cooling System
Maximum Fan Count: 9
Included Fans: 4
Physical
Depth: 547mm
Depth (Inches): 21.5
Width: 240mm
Height: 475mm
Shipping Box - Depth: 558mm
Shipping Box - Width: 363mm
Shipping Box - Height: 641mm
Shipping Weight: 36lbs
Other Features
Chassis Warranty: 1 Year
