SL-DK-AZ690A-FW This item is no longer available.
Desktop PC - Desktop featuring Intel Z690 Chipset, 12th Gen Core i7/i5/i3 (LGA1700), 1x 2.5GbE (10/100/1000/2500) LAN, WIFI,1x Serial, Up to 128GB RAM, 4x USB 2.0 Ports ( 4 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear ), 3x USB 3.2 Gen 2 Ports ( 2 Rear, 1 Internal Headers ), 1x USB 3.2 Gen 1 Type-C Port (Rear), 1x USB 3.2 Gen 2 Type-C Port ( 1 Rear ), 5x Expansion Slots.
Type:
- Desktop PC
- Dimension: 547mm x 240mm x 475mm
Motherboard:
- Featuring Intel Z690 Chipset and 12th Gen Core i7/i5/i3 (LGA1700) processor
- Full Height Slots:
2 - PCIe x16
1 - PCIe x4
2 - PCIe x1 - LAN: 1x Ports (2.5GbE (10/100/1000/2500))
- WiFi: Intel AX200 Wi-Fi 6 (802.11ax) + BT 5.2
- RAID: 0,1,5,10
- Video: DisplayPort + HDMI
- Audio: 7.1 HD Audio
- Ports:
4x USB 2.0 Ports ( 4 Internal Headers )
6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear )
3x USB 3.2 Gen 2 Ports ( 2 Rear, 1 Internal Headers )
1x USB 3.2 Gen 1 Type-C Port (Rear)
1x USB 3.2 Gen 2 Type-C Port ( 1 Rear )
1x COM Port (RS232 Internal Headers)
1x Front Audio Port
See specifications for more ports - Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF)
Also Included:
- Processor: i3-12100 - 3.30GHz (up to 4.30GHz) Intel Core CPU - 4 Core, 12MB Cache, UHD Graphics 730 (Base 60W, Max 89W) (ERM)
- Memory: 8GB DDR4 3200MHz OC RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: ATX
- Supported CPU
- Number of Processors: 1
- Processor Type: 12th Gen Core i7/i5/i3 (LGA1700)
- Chipset
- Chipset: Intel Z690 Chipset
- Memory
- Memory Type: DDR4 3200MHz
- Memory Type: Non-ECC
- DIMMS: 4
- Maximum Memory: 128GB
- On Board Audio
- Audio Type: 7.1 HD Audio
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: DisplayPort + HDMI
- Display Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: 2.5GbE (10/100/1000/2500)
- LAN Chipset: Intel® 2.5Gb Ethernet
- Wireless LAN: Intel AX200 Wi-Fi 6 (802.11ax) + BT 5.2
- Drive Interface
- SATA III Ports (6GB): 4
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 2
- PCI Express x4 Slots On Motherboard: 1
- PCI Express x1 Slots On Motherboard: 2
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 4
- M.2 Slot #1 Specs
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- M.2 Slot #2 Specs
- M.2 SATA SSD
- PCIe Signal
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- M.2 Slot #3 Specs
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- M.2 Slot #4 Specs
- PCIe Signal

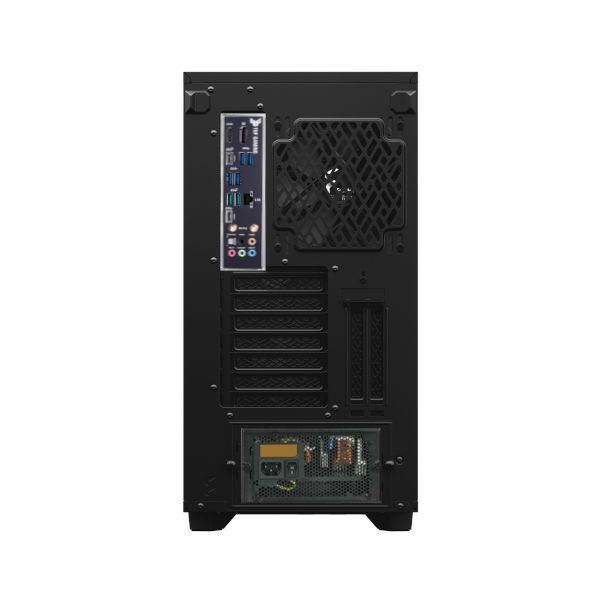

- Rear IO
- USB 3.2 Gen 1 Type A Ports (on IO): 4
- USB 3.2 Gen 2 Type A Ports (on IO): 2
- USB 3.2 Gen 1 Type C Ports (on I/O): 1
- USB 3.2 Gen 2 Type C Ports (on I/O): 1
- SPDIF Connector: 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 4
- USB 3.2 Gen 1 Ports (on Headers): 2
- USB 3.2 Gen 2 Ports (on Headers): 1
- Thunderbolt 3 via Header: 1
- Serial (via Headers): 1
- FAN Connectors: 7
- Audio on Headers
- Environmental
- Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- Windows 10 IoT 2021 LTSC Value
- Windows 10 IoT 2021 LTSC High End
- Windows 11 Home (64 Bit)
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- LINUX Ubuntu Desktop
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Features:
Note:
Expansion Slots:
Intel 12th Gen Processors
- 1x PCIe 5.0 x16 slot
Intel Z690 Chipset
- 1x PCIe 3.0 x16 slot (supports x4 mode)
- 1x PCIe 3.0 x 4 slot
- 2x PCIe 3.0 x1 slots
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: Full Tower
- Front Facing I/O
- Front Changeable Air Filter
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: E-ATX
- Expansion
- Full Height Slots: 7
- Max Card Depth: Storage layout: 315 mm - Open layout: 491 mm (467 mm w/ front fan)"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 6
- Internal 2.5" Bays: 2
- Front Ports
- USB 3.2 Ports (Front): 5
- Front Audio Ports: 1
- Cooling System
- Maximum Fan Count: 9
- Included Fans: 4
- Physical
- Depth: 547mm
- Depth (Inches): 21.5
- Width: 240mm
- Height: 475mm
- Shipping Box - Depth: 558mm
- Shipping Box - Width: 363mm
- Shipping Box - Height: 641mm
- Shipping Weight: 36lbs
- Other Features
- Chassis Warranty: 1 Year
