SL-DK-X299PRO-FW This item is no longer available.
Tower PC - Desktop featuring Intel X299 Chipset, Intel® Core™ X-series Processors ( FCLGA2066), 2x 1GbE (10/100/1000) LAN, 1x Serial, Up to 256GB RAM, 6x USB 2.0 Ports ( 4 Rear, 2 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear ), 1x USB 3.2 Gen 2 Port ( 1 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Rear ), 5x Expansion Slots.
Intel Latest X-Series High Performance Rackmount Computer
Type:
- Tower PC
- Dimension: 547mm x 240mm x 475mm
Motherboard:
- Featuring Intel X299 Chipset and Intel® Core™ X-series Processors ( FCLGA2066) processor
- Full Height Slots:
4 - PCIe x16
1 - PCIe x4 - LAN: 2x Ports (1GbE (10/100/1000))
- RAID: 0,1,5,10
- Video: None
- Audio: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
- Ports:
6x USB 2.0 Ports ( 4 Rear, 2 Internal Headers )
6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear )
1x USB 3.2 Gen 2 Port ( 1 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Rear )
1x COM Port (RS232 Internal Headers)
1x Front Audio Port
See specifications for more ports - Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF)
Also Included:
- Processor: i9-10900X - 3.7GHz (up to 4.5GHz) Intel Deca (10) Core CPU - 19.25MB Cache, No Onboard Graphics (165W)
- Memory: 2 x 4GB DDR4 3200MHz OC RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 600W ATX12V (v2.2) 8cm 80 Plus Bronze 80MM FAN
- Operating System: Not Included - See options below
- Toll Free Technical Support: Yes
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: ATX
- Supported CPU
- Number of Processors: 1
- Processor Type: Intel® Core™ X-series Processors ( FCLGA2066)
- Chipset
- Chipset: Intel X299 Chipset
- Memory
- Memory Type: DDR4 3200MHz
- Memory Type: Non-ECC
- DIMMS: 8
- Maximum Memory: 256GB
- On Board Audio
- Audio Type: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
- On Board Video
- Video Chipset: None
- Video on IO: None
- LAN
- LAN Ports: 2
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Intel® i210AT
- Second LAN Chipset: Intel® i210AT
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 6
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 4
- PCI Express x4 Slots On Motherboard: 1
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 2
- M.2 Slot #1 Specs
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- M.2 Slot #2 Specs
- M.2 SATA SSD
- PCIe Signal
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.

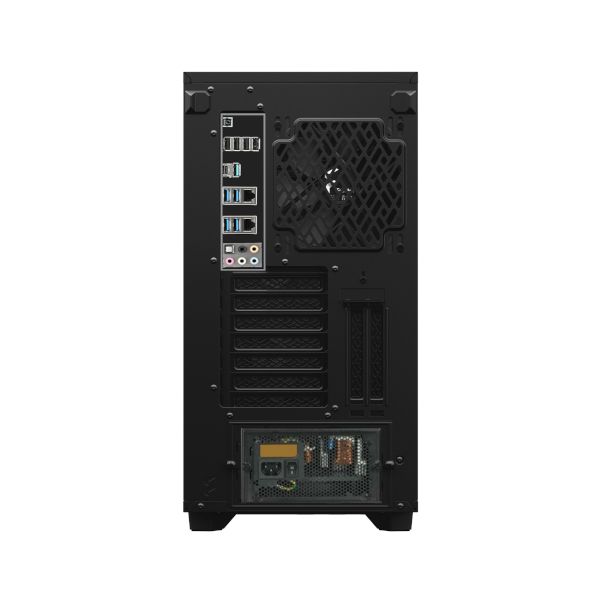

- Rear IO
- USB 2.0 Ports (on IO): 4
- USB 3.2 Gen 1 Type A Ports (on IO): 4
- USB 3.2 Gen 2 Type A Ports (on IO): 1
- USB 3.2 Gen 2 Type C Ports (on I/O): 1
- SPDIF Connector: 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.2 Gen 1 Ports (on Headers): 2
- Thunderbolt 3 via Header: 1
- Serial (via Headers): 1
- FAN Connectors: 4
- Audio on Headers
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- RoHS
- FCC
- Other Features
- Other Features:
Expansion Slots
48-Lane CPU-
2 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x8 mode)
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x4 (x4 mode)
44-Lane CPU-
2 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x8 mode)
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x4 (x4 mode)
28-Lane CPU-
1 x PCIe 3.0 x16 (x16 mode)
1 x PCIe 3.0 x16 (x8 mode)
1 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x4 (x4 mode)
16-Lane CPU-
1 x PCIe 3.0 x16 (x8 mode)
2 x PCIe 3.0 x16 (x4 mode)
1 x PCIe 3.0 x4 (x4 mode) - Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: Full Tower
- Front Facing I/O
- Front Changeable Air Filter
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: E-ATX
- Expansion
- Full Height Slots: 7
- Max Card Depth: Storage layout: 315 mm - Open layout: 491 mm (467 mm w/ front fan)"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 6
- Internal 2.5" Bays: 2
- Front Ports
- USB 3.2 Ports (Front): 5
- Front Audio Ports: 1
- Cooling System
- Maximum Fan Count: 9
- Included Fans: 4
- Physical
- Depth: 547mm
- Depth (Inches): 21.5
- Width: 240mm
- Height: 475mm
- Shipping Box - Depth: 558mm
- Shipping Box - Width: 363mm
- Shipping Box - Height: 641mm
- Shipping Weight: 36lbs
- Other Features
- Chassis Warranty: 1 Year
