SL-DK-C256STH-2LN-FD

Name: SL-DK-C256STH-2LN-FD
SKU: SL-DK-C256STH-2LN-FD

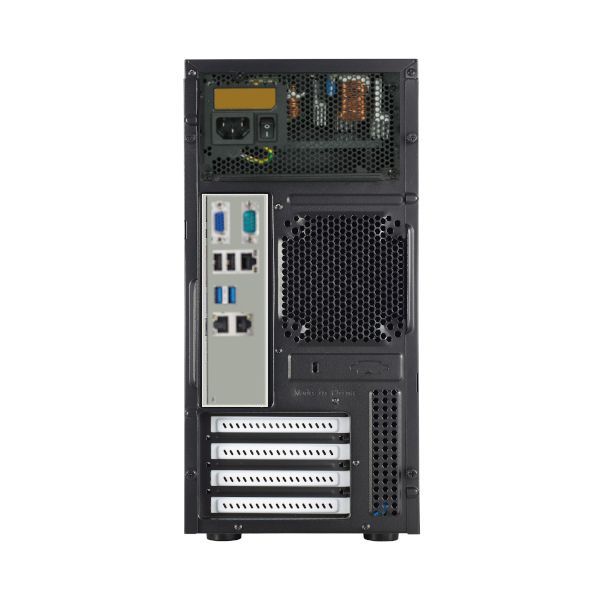

Tower Server - Desktop featuring Intel C256 Chipset, Intel® Xeon® E-2300 Processor, 2x 1GbE + 1GbE + IPMI LAN, 2x Serial, Up to 128GB RAM, 6x USB 2.0 Ports ( 1 Front, 2 Rear, 3 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 1 Front, 2 Rear, 1 Internal Headers ), 3x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

Tower Server
Dimension: 410mm x 175mm x 358mm

Motherboard:

Featuring Intel C256 Chipset and Intel® Xeon® E-2300 Processor processor
Full Height Slots:
1 - PCIe x16
2 - PCIe x8
LAN: 2x Ports (1GbE + 1GbE + IPMI)
RAID: 0,1,5,10
Video: VGA
Audio: No Onboard Audio
Ports:
6x USB 2.0 Ports ( 1 Front, 2 Rear, 3 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 1 Front, 2 Rear, 1 Internal Headers )
2x COM Ports (1 RS232 Rear, 1 RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

Processor: Intel Xeon E-2314 (Up to 4.5 GHz) - 2.8 GHz - 4 core - 4 threads - 8MB Cache - E-2300 Series (65W)
Memory: 2 x 8GB DDR4 3200MHz ECCU RAM
Hard Drive: 500GB M.2 2280 NVMe SSD or greater
Power Supply: 400W Power Supply
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

Intel Xeon E-2314 (Up to 4.5 GHz) - 2.8 GHz - 4 core - 4 threads - 8MB Cache - E-2300 Series (65W) show $345.00

Intel Xeon E-2324G - 3.1 GHz (Up to 4.6 GHz) - 4 core - 4 threads - 8MB Cache - E-2300 Series (65W) show $492.00

Intel Xeon E-2356G - 3.2 GHz (Up to 5.0 GHz) - 6 core - 12 threads - 12MB Cache - E-2300 Series (80W) show $595.00

Intel Xeon E-2374G - 3.7 GHz (Up to 5.0 GHz) - 4 core - 8 threads - 8MB Cache - E-2300 Series (80W) show $645.00

Intel Xeon E-2378 - 2.6 GHz (Up to 4.8 GHz) - 8 core - 16 threads - 16MB Cache - E-2300 Series (65W) show $680.00

Intel Xeon E-2388G - 3.2 GHz (Up to 5.1 GHz) - 8 core - 16 threads - 16MB Cache - E-2300 Series (95W) show $1,015.00

Memory

x 8GB DDR4 3200MHz ECCU RAM show $41.00

x 16GB DDR4 3200MHz ECCU RAM show $88.00

x 32GB DDR4 3200MHz ECCU RAM show $162.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

5.25" CD/DVD Burner show $31.00

5.25" Blu-Ray 16x Readable & ReWriteable Drive show $148.00

Removable Drive Bay

1x 3.5" Hard Drive Aluminum Removable Bay (Require a 5.25" external bay) show $53.00 each

Replacement Caddy for SL-HDD-MR-SATA-MIL HDD Rack show $33.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage show $208.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage with Locks. show $280.00 each

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot show $160.00 each

Hard Drive

500GB M.2 2280 NVMe SSD or greater show $70.00

250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980 show $83.00

500GB NVMe SSD M.2 3.1GB/2.6GB - Samsung 980 show $105.00

1TB PCIe 5.0 NVMe SSD M.2 5,000/4,200MB/s - Samsung 990 EVO show $111.00

2TB PCIe 5.0 NVMe SSD M.2 5,000/4,200MB/s - Samsung 990 EVO show $172.00

1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $161.00

2TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $215.00

4TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $401.00

Additional Hard Drives

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $91.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $170.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $240.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $402.00 each

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series show $170.00 each

4.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E8 Series show $218.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS 7E8 Series show $323.00 each

12TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS X18 Series show $422.00 each

16TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS X18 Series show $440.00 each

Raid Controller

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Cable

COM Port (Serial Port) Cable, 9-pin, w/ Standard-Height Bracket show $10.00 each

Add 4 USB 2.0 Ports via connections from onboard header. show $12.00 each

TPM 2.0 Module - SPI capable with Infineon 9670 controller with vertical form factor show $80.00 each

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $61.00 each

4-Port USB 3.2 Gen 1 PCIe Card - PCIe x1, Full-Height Only show $30.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

Networking

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $250.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $243.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $284.00 each

PCIe x8 Dual Port Intel Ethernet Converged Network Adapter X520-DA2 - Copper SFP+ Direct Attached - Lo show $580.00 each

PCIe x8 Dual Port Intel Ethernet Converged Network Adapter X520-SR2 - Optical Fiber - Low-profile/Full show $783.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $712.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $857.00 each

PCIe x8 Dual Port SFP+ Direct Attached Twinaxial Cabling Intel X710-DA2 10GbE Network Adapter. - Low P show $454.00 each

PCIe x8 Quad Port ..SFP+ Direct Attached Twin Axial Cabling Intel X710-DA4 10GbE Network Adapter. - Fu show $681.00 each

Power Supply

400W Power Supply show $87.00

600W Power SupplyPart Delay: ETA December 30, 2024 show $121.00

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" DeepSpecial Order Item, Delivery approximately 3 weeks. show $952.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" - 33" Deep show $1,482.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and touchpad (HDMI input show $1,058.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and trackball (HDMI inpu show $1,112.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included) show $1,589.00

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep Racks show $1,047.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep Racks show $1,578.00

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $118.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $178.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $138.00 each

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $249.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. show $369.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. show $423.00 each

External Power

None show Included

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & Serial ports show $595.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MicroATX
Supported CPU
Number of Processors: 1
Processor Type: Intel® Xeon® E-2300 Processor
Chipset
Chipset: Intel C256 Chipset
Memory
Memory Type: DDR4 3200MHz
Memory Type: ECC Unbuffered
DIMMS: 4
Maximum Memory: 128GB
On Board Audio
Audio Type: No Onboard Audio
On Board Video
Video Chipset: ASPEED AST2600 BMC
Video on IO: VGA
VGA Port Out: 1
LAN
LAN Ports: 2
LAN Type: 1GbE + 1GbE + IPMI
LAN Chipset: Intel® i210
Second LAN Chipset: Intel® i210
Third LAN Chipset: Dedicated IPMI
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 8
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 1
PCI Express x8 Slots On Motherboard: 2
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 1
M.2 Slot #1 Specs
PCIe Signal
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.
Rear IO
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 1 Type A Ports (on IO): 2
Serial (Rear IO): 1
Headers
USB 2.0 Ports (on Headers): 4
USB 3.2 Gen 1 Ports (on Headers): 2
USB 3.0 Type A Interal: 1
Serial (via Headers): 1
FAN Connectors: 6
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
High Humidity: 90%
Low Humidity: 8%
Operating System Support
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC Value
Windows 11 IoT 2024 LTSC High End
Windows Server 2019 Std
Windows Server 2022 STD
RED HAT Enterprise LINUX WORKSTATION STANDARD
RED HAT Enterprise LINUX SERVER BASIC
RED HAT Enterprise LINUX SERVER STANDARD
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
CE
FCC
Other Features
Features:
PCIe
1 PCIe 3.0 x4 (in x8 slot),
1 PCIe 4.0 x16,
1 PCIe 4.0 x4 (in x8 slot)

M.2
M.2 Interface: 1 PCIe 3.0 x4
Form Factor: 2280/22110
Key: M-Key
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: Desktop PC
Color: Black
Material: Steel & Plastic
Material Thickness: 1mm
Motherboard Compatibility: Micro ATX
Slide Rails: Optional
Expansion
Full Height Slots: 4
Max Card Depth: 350 mm in length"
External 5.25" Bays: 2
Internal 3.5" Bays: 2
Internal 2.5" Bays: 3
Front Ports
USB 2.0 Ports (Front): 1
USB 3.2 Ports (Front): 1
Front Audio Ports: 1
Cooling System
Maximum Fan Count: 3
Included Fans: 1
Physical
Depth: 410mm
Width: 175mm
Height: 358mm
Shipping Box - Depth: 420mm
Shipping Box - Width: 235mm
Shipping Box - Height: 485mm
Shipping Weight: 11lbs
Other Features
Chassis Warranty: 1 Year
