SL-DK-J5040-IM
Desktop PC - Desktop featuring Intel Pentium SoC, Intel Pentium Quad-Core Processor J5040 (up to 3.2 GHz), 1x 1GbE (10/100/1000) LAN, 1x Serial, Up to 8GB RAM, 5x USB 2.0 Ports ( 2 Rear, 3 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear ), Power Supply 150W Internal PSU.
Type:
- Desktop PC
- Dimension: 193mm x 76mm x 225mm
Motherboard:
- Featuring Intel Pentium SoC and Intel Pentium Quad-Core Processor J5040 (up to 3.2 GHz)
- No Available Slots
- LAN: 1x Ports (1GbE (10/100/1000))
- Video: VGA + DVI-D + HDMI
- Audio: Realtek® ALC892
- Ports:
5x USB 2.0 Ports ( 2 Rear, 3 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear )
1x COM Port (RS232 Internal Headers)
1x Front Audio Port
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Memory: 8GB DDR4 2666MHz SODIMM RAM
- Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
- Power Supply:150W Internal PSU
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MiniITX
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Pentium Quad-Core Processor J5040 (up to 3.2 GHz)
- Chipset
- Chipset: Intel Pentium SoC
- Memory
- Memory Type: DDR4 2400MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 8GB
- On Board Audio
- Audio Type: Realtek® ALC892
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: VGA + DVI-D + HDMI
- VGA Port Out: 1
- DVI-D Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Realtek® RTL8111H
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 4
- Expansion Slots
- PCI Express x1 Slots On Motherboard: 1
- M.2 Slot Specs
- M.2 Slot #1 Specs
- PCIe Signal
- 2230 - 22 mm x 30 mm.

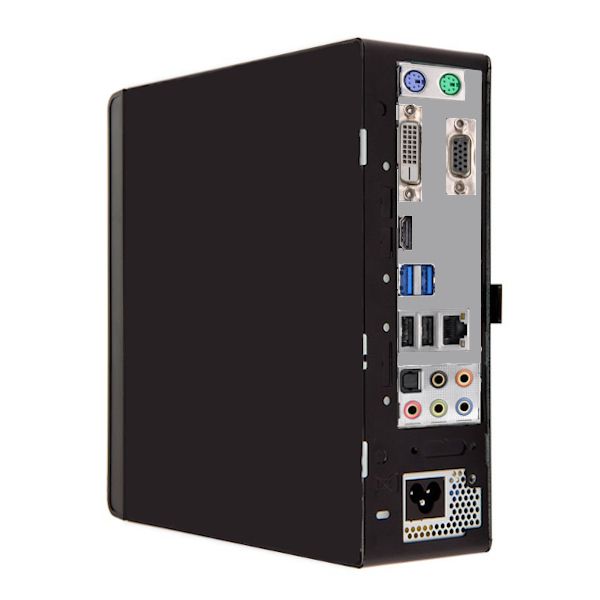

- Rear IO
- PS/2 Mouse on IO
- PS/2 Keyboard on IO
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- SPDIF Connector: 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 3
- USB 3.2 Gen 1 Ports (on Headers): 2
- Serial (via Headers): 1
- FAN Connectors: 2
- Audio on Headers
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT Entry 2019 LTSC
- Windows 10 IoT 2021 LTSC Entry
- Windows 11 Home (64 Bit)
- Windows 11 Pro (64 Bit)
- Windows 11 IoT 2024 LTSC Entry
- LINUX Ubuntu Desktop
- Compliance of Component
- CE
- FCC
- Other Features
- Other Features:
*USB3_0_1 is shared with USB_0_1.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: Desktop PC
- Color: Black
- Material: Steel & Plastic
- Material Thickness: 1mm
- Motherboard Compatibility: Mini ITX
- Expansion
- Internal 2.5" Bays: 1
- Front Ports
- USB 3.2 Ports (Front): 2
- Front Audio Ports: 1
- Physical
- Depth: 193mm
- Depth (Inches): 7.6
- Width: 76mm
- Height: 225mm
- Shipping Box - Depth: 120mm
- Shipping Box - Width: 270mm
- Shipping Box - Height: 273mm
- Shipping Weight: 10lbs
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Features:
With a depth of less than 80mm, this system can easily be mounted behind a LCD monitor.
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: 150W Internal PSU
