SL-DK-LLH812-IF This item is no longer available.
5U/Tower PC - Desktop featuring Long Production Cycle Motherboard (Through Q3 2020) withIntel H81 Chipset, 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell'), 2x 1GbE (10/100/1000) LAN, 10x Serial, Up to 16GB RAM, 6x USB 2.0 Ports ( 2 Front, 4 Rear ), 2x USB 3.2 Gen 1 Ports ( 2 Rear ), 7x Expansion Slots, Power Supply ATX 12V 350W Power Supply.
Type:
- 5U/Tower PC
- Dimension: 435mm x 190mm x 423mm, Locking Front Bezel
Motherboard:
- Featuring Intel H81 Chipset and 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell') processor
- Long Production Cycle Motherboard (Through Q3 2020)
- Full Height Slots:
1 - PCIe x16
1 - PCIe x4
5 - PCI - LAN: 2x Ports (1GbE (10/100/1000))
- Video: VGA + DVI-D
- Audio: 5.1 channel by Realtek® ALC886
- Ports:
6x USB 2.0 Ports ( 2 Front, 4 Rear )
2x USB 3.2 Gen 1 Ports ( 2 Rear )
10x COM Ports (2 RS232 Rear, 7 RS232 Internal Headers, 1 RS232/422/485 Internal Headers)
1x Parallel Port (Headers)
1x Front Audio Port
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Processor: G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM)
- Memory: 4GB DDR3 1600MHz RAM
- Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
- Power Supply: 350W ATX-form factor power supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

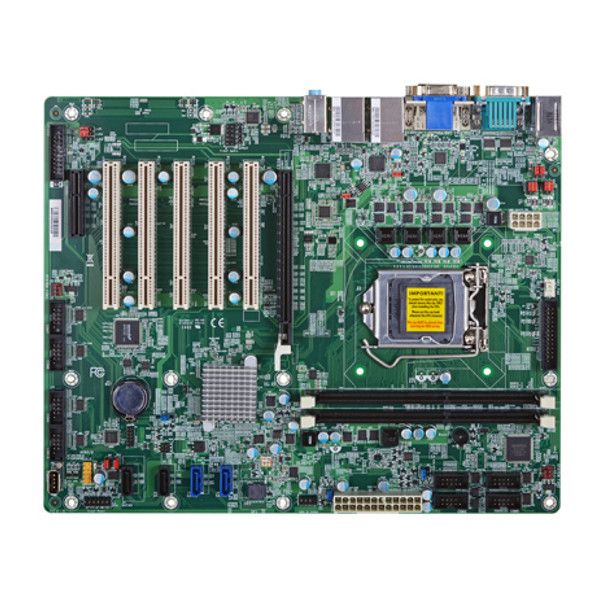

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: ATX
- Long Production Cycle
- Long Life: YES
- EOL Date: Q3 2020
- Supported CPU
- Number of Processors: 1
- Processor Type: 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell')
- Chipset
- Chipset: Intel H81 Chipset
- Memory
- Memory Type: DDR3 1600MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 16GB
- On Board Audio
- Audio Type: 5.1 channel by Realtek® ALC886
- On Board Video
- Video Chipset: Intel HD Graphics
- Video on IO: VGA + DVI-D
- VGA Port Out: 1
- DVI-I Out (DVI-D Signal): 1
- LAN
- LAN Ports: 2
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Intel® i210AT
- Second LAN Chipset: Intel® i210AT
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA II Ports (3GB): 2
- SATA III Ports (6GB): 2
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- PCI Express x4 Slots On Motherboard: 1
- PCI Slots (Conventional 32-Bit): 5
- Rear IO
- PS/2 Combo (Mouse/Keyboard)
- USB 2.0 Ports (on IO): 4
- USB 3.0 Ports (on IO): 2
- Serial (Rear IO): 2
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 2.0 Ports (Type A): 1
- Serial (via Headers): 7
- Serial 232/422/485 Ports: 1
- Parallel Ports: 1
- SPDIF Connector: 1
- eSATA Ports: 4
- FAN Connectors: 3
- Digital I/O (8 Bit) On Headers
- Audio on Headers
- Chassis Intrusion
- Environmental
- Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- SL-Windows 10PRO to 7PRO 32-bit
- SL-Windows 10PRO to 7PRO 64-bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (32-bit)
- Windows 8.1 Pro (64-bit)
- Windows Embedded 8 (32-bit)
- Windows Embedded 8 (64-bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Value
- Windows 10 IoT Ent
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- 1x PCIe x16 Gen 3 slot (PCIe 3.0)
- 1x PCIe x4 Gen 2 slot (PCIe 2.0)
- 5x PCI slots (PCI 2.3)
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: Mini Tower
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: ATX
- Expansion
- Full Height Slots: 7
- Max Card Depth: 10""
- External 5.25" Bays: 3
- Internal 3.5" Bays: 3
- External 3.5" Bays: 2
- Internal 2.5" Bays: 1
- Front Ports
- USB 2.0 Ports (Front): 2
- Front Audio Ports: 1
- Cooling System
- Maximum Fan Count: 1
- Included Fans: 1
- Physical
- Depth: 435mm
- Width: 190mm
- Height: 423mm
- Shipping Box - Depth: 8.90"
- Shipping Box - Width: 20.50"
- Shipping Box - Height: 19.20"
- Shipping Weight: 25lbs
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: ATX 12V 350W Power Supply
