SL-EB-J3455-H-2LAN
Microbox PC - Embedded PC featuring Long Production Cycle Motherboard (Through Q3 2031) with Intel Celeron SoC, Intel Celeron J3455 Processor (1.5GHz Quad Core, Burst 2.3GHz) Intel® HD Graphics 500, TDP 10W, 2x 1GbE (10/100/1000) LAN, 1x Serial, Up to 8GB RAM, 2x USB 3.2 Gen 1 Ports ( 2 Rear ), Dimensions of Enclosure: 4.30"L x 4.92"W x 2.19"H, Power Supply Adapter: AC 90~240V / DC12V / 40W.
Type:
- Microbox PC
- Dimension: 109mm x 125mm x 55mm
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron J3455 Processor (1.5GHz Quad Core, Burst 2.3GHz) Intel® HD Graphics 500, TDP 10W
- Long Production Cycle Motherboard (Through Q3 2031)
- LAN: 2x Ports (1GbE (10/100/1000))
- Video: VGA + HDMI
- Audio: Realtek® ALC662 HD Audio
- Ports:
2x USB 3.2 Gen 1 Ports ( 2 Rear )
1x COM Port (RS232/422/485 Rear)
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
- Hard Drive: 256GB mSATA SSD SATA 6.0Gb/s, 550/500MB/s read/write (or greater)
- Power Supply: Adapter: AC 90~240V / DC12V / 40W
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: NUC (101x101 mm)
- Long Production Cycle
- Long Life: YES
- EOL Date: Q3 2031
- Fanless
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Celeron J3455 Processor (1.5GHz Quad Core, Burst 2.3GHz) Intel® HD Graphics 500, TDP 10W
- Chipset
- Chipset: Intel Celeron SoC
- Memory
- Memory Type: DDR3 1600MHz
- Memory Type: Non-ECC
- DIMMS: 1
- Maximum Memory: 8GB
- On Board Audio
- Audio Type: Realtek® ALC662 HD Audio
- On Board Video
- Video Chipset: Supported by CPU - see Embedded CPU Information
- Video on IO: VGA + HDMI
- VGA Port Out: 1
- HDMI Out: 2
- LAN
- LAN Ports: 2
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Realtek® RTL8111H
- Second LAN Chipset: Realtek RTL8111H
- Wireless LAN: No Integrated WLAN
- Expansion Slots
- mini PCIe
- mSATA
- half and/or full size mini PCIe card: full size

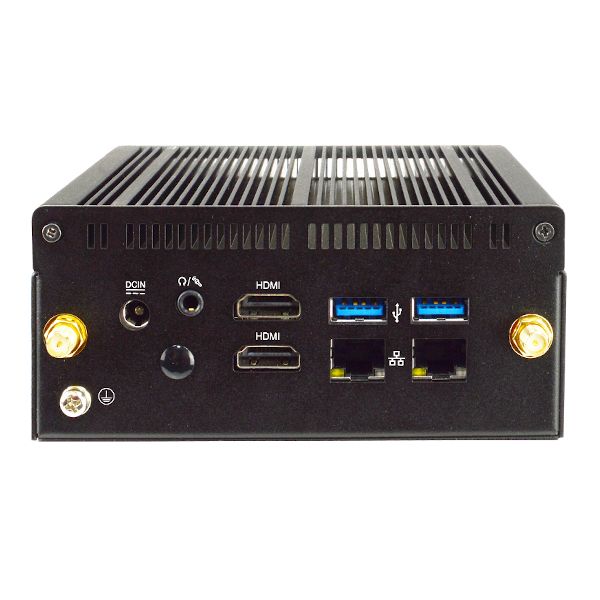

- Rear IO
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- Serial 232/422/485 Ports: 1
- Audio on IO
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 IoT Entry 2019 LTSC
- Windows 10 IoT 2021 LTSC Entry
- SL-Windows 11PRO to 10PRO 64bit
- LINUX Ubuntu Desktop
- Compliance of Component
- CE
- RoHS
- FCC
- Warranty of Component
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: NUC Box
- Front Facing I/O
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Expansion
- Antennae Punchout: 2

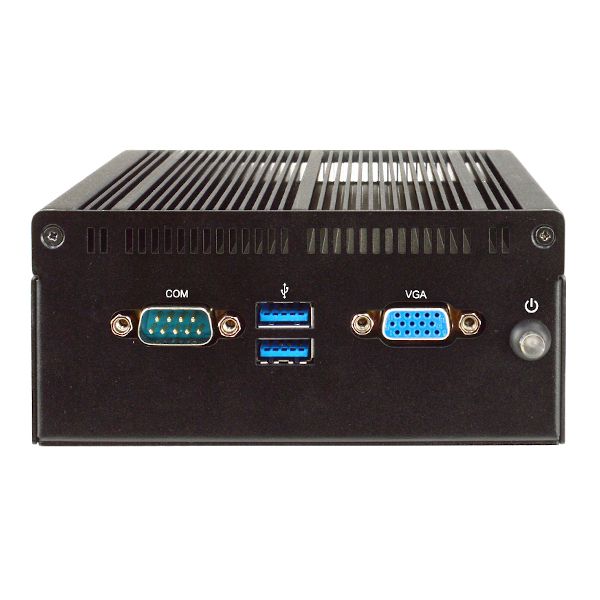

- Front Ports
- USB 3.2 Ports (Front): 2
- Physical
- Depth: 109.20mm
- Width: 125mm
- Height: 55.50mm
- Shipping Box - Depth: 167mm
- Shipping Box - Width: 158mm
- Shipping Box - Height: 123.60mm
- Shipping Weight: 3lbs
- Power
- Built-in Chassis Power Supply: Adapter: AC 90~240V / DC12V / 40W
