SL-EB-LLH310I-S18

Name: SL-EB-LLH310I-S18
SKU: SL-EB-LLH310I-S18

Microbox PC - Embedded PC featuring Long Production Cycle Motherboard (Through Q1 2025) with Intel H310 Chipset, 8th and 9th Gen Core i7/i5/i3 (LGA1151), 2x 1GbE + 1GbE LAN, 4x Serial, Up to 32GB RAM, 2x USB 2.0 Ports ( 2 Front ), 4x USB 3.2 Gen 1 Ports ( 4 Rear ), Dimensions of Enclosure: 2.60"L x 12.30"W x 8.27"H, Power Supply AC/DC Power Adapter Included.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

TPM Support: 2.0 Module Included

Type:

Microbox PC
Dimension: 2.60" x 12.30" x 8.27"

Motherboard:

Featuring Intel H310 Chipset and 8th and 9th Gen Core i7/i5/i3 (LGA1151) processor
Long Production Cycle Motherboard (Through Q1 2025)
Full Height Slots:
LAN: 2x Ports (1GbE + 1GbE)
Video: VGA + DisplayPort + HDMI
Audio: Realtek® ALC887 codec
Ports:
2x USB 2.0 Ports ( 2 Front )
4x USB 3.2 Gen 1 Ports ( 4 Rear )
4x COM Ports (2 RS232 Rear, 2 RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

Processor: G4900 - 3.1GHz Intel Celeron CPU - Dual Core, 2MB Cache, UHD Graphics 610 (54W) (ERM) - or Better
Memory: 8GB DDR4 2666MHz SODIMM RAM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: 160w output, 12v input DC-DC Power Supply - AC Adapter Included
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MiniITX
Long Production Cycle
Long Life: YES
EOL Date: Q1 2025
Supported CPU
Number of Processors: 1
Processor Type: 8th and 9th Gen Core i7/i5/i3 (LGA1151)
Chipset
Chipset: Intel H310 Chipset
Memory
Memory Type: SO DIMM DDR4 2400MHz
Memory Type: Non-ECC
DIMMS: 2
Maximum Memory: 32GB
On Board Audio
Audio Type: Realtek® ALC887 codec
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: VGA + DisplayPort + HDMI
VGA Port Out: 1
Display Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 2
LAN Type: 1GbE + 1GbE
LAN Chipset: Intel® GbE LAN chip
Second LAN Chipset: Intel® GbE LAN chip
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 4
Mini PCIe
mini PCIe
mSATA
half and/or full size mini PCIe card: full size
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 1
M.2 Slot #1 Specs
M.2 SATA SSD
PCIe Signal
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.

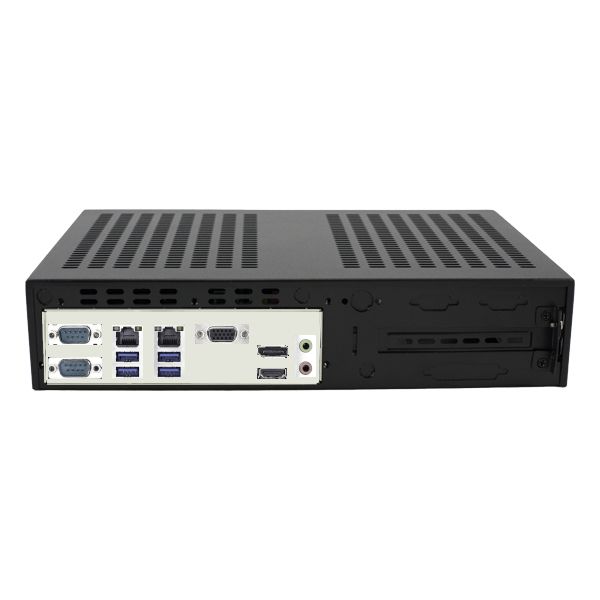

Rear IO
USB 3.2 Gen 1 Type A Ports (on IO): 4
Serial (Rear IO): 2
Audio on IO
Headers
USB 2.0 Ports (on Headers): 2
Serial (via Headers): 2
FAN Connectors: 2
Audio on Headers
TPM Support: 2.0 Module Included
Environmental
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
High Humidity: 95%
Low Humidity: 5%
Operating System Support
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT Value 2019 LTSC
Windows 10 IoT Ent 2019 LTSC
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
Windows 11 IoT 2024 LTSC Value
Windows 11 IoT 2024 LTSC High End
LINUX Ubuntu Desktop
LINUX Ubuntu Workstation
Ubuntu Server Edition
Compliance of Component
CE
RoHS
FCC
Other Features
Other Features:
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2. 1 x M.2 Socket 1 connector for an Intel® CNVi or PCIe wireless module (CNVI)
3. 1 x full size Mini PCIe connector (MSATA_PCIE)
  * The MSATA_PCIE slot shares bandwidth with the SATA3 2 connector. When an MSATA SSD is populated, the SATA3 2 connector becomes unavailable.
  * The MSATA_PCIE connector can also be used as an MSATA connector.
  (The Mini PCI Express slot conforms to PCI Express 2.0 standard.)
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: Micro PC
Color: Black
Material: Metal/Steel
Material Thickness: 1mm
Motherboard Compatibility: Mini ITX
Slide Rails: Optional
Expansion
Full Height Slots: 1
Max Card Depth: 7.5""
Internal 2.5" Bays: 2
Serial Port Punchouts: 3
Parallel Port Punchouts: 1
Antennae Punchout: 2
Front Ports
USB 2.0 Ports (Front): 2
Cooling System
Maximum Fan Count: 2
Physical
Depth: 2.60"
Depth (Inches): 2.6
Width: 12.30"
Height: 8.27"
Shipping Box - Depth: 16"
Shipping Box - Width: 16"
Shipping Box - Height: 8"
Shipping Weight: 11lbs
Other Features
Chassis Warranty: 1 Year
Power
Built-in Chassis Power Supply: AC/DC Power Adapter Included
