SL-DK-AH470A-IF This item is no longer available.
Desktop PC - Desktop featuring Intel H470 Chipset, 10th Gen Core i7/i5/i3 (LGA1200), 1x 1GbE (10/100/1000) LAN, 1x Serial, Up to 128GB RAM, 7x USB 2.0 Ports ( 2 Front, 4 Rear, 1 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 2 Rear, 4 Internal Headers ), 1x USB 3.2 Gen 2 Port ( 1 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Rear ), 6x Expansion Slots, Power Supply ATX 12V 350W Power Supply.
Type:
- Desktop PC
- Dimension: 435mm x 190mm x 423mm, Locking Front Bezel
Motherboard:
- Featuring Intel H470 Chipset and 10th Gen Core i7/i5/i3 (LGA1200) processor
- Full Height Slots:
2 - PCIe x16
4 - PCIe x1 - LAN: 1x Ports (1GbE (10/100/1000))
- RAID: 0,1,5,10
- Video: DisplayPort + HDMI
- Audio: 8-Channel HD Audio by Realtek® ALC887
- Ports:
7x USB 2.0 Ports ( 2 Front, 4 Rear, 1 Internal Headers )
6x USB 3.2 Gen 1 Ports ( 2 Rear, 4 Internal Headers )
1x USB 3.2 Gen 2 Port ( 1 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Rear )
1x COM Port (RS232 Internal Headers)
1x Front Audio Port
See specifications for more ports - Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF)
Also Included:
- Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
- Memory: 8GB DDR4 3200MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 350W ATX-form factor power supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: ATX
- Supported CPU
- Number of Processors: 1
- Processor Type: 10th Gen Core i7/i5/i3 (LGA1200)
- Chipset
- Chipset: Intel H470 Chipset
- Memory
- Memory Type: DDR4 2666MHz
- Memory Type: Non-ECC
- DIMMS: 4
- Maximum Memory: 128GB
- On Board Audio
- Audio Type: 8-Channel HD Audio by Realtek® ALC887
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: DisplayPort + HDMI
- Display Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Realtek® RTL8111H
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 6
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 2
- PCI Express x1 Slots On Motherboard: 4
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 2
- M.2 Slot #1 Specs
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- M.2 Slot #2 Specs
- M.2 SATA SSD
- PCIe Signal
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.

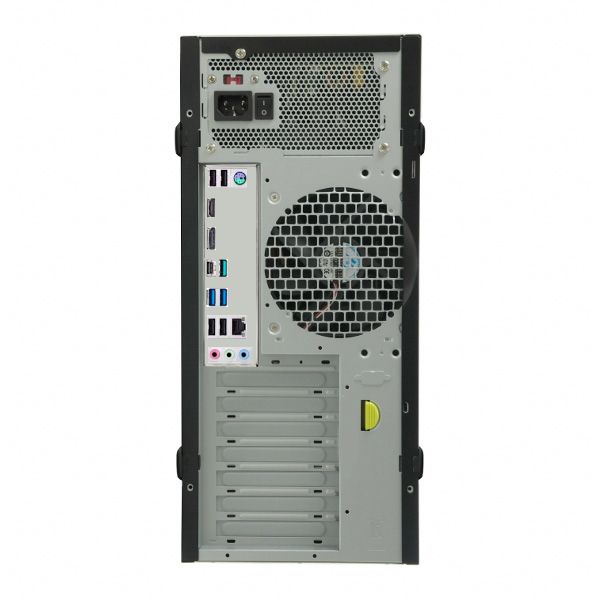

- Rear IO
- PS/2 Combo (Mouse/Keyboard)
- USB 2.0 Ports (on IO): 4
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- USB 3.2 Gen 2 Type A Ports (on IO): 1
- USB 3.2 Gen 2 Type C Ports (on I/O): 1
- Headers
- USB 2.0 Ports (on Headers): 3
- USB 3.2 Gen 1 Ports (on Headers): 4
- Thunderbolt 3 via Header: 1
- Serial (via Headers): 1
- SPDIF Connector: 1
- FAN Connectors: 4
- Audio on Headers
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF )
- High Humidity: 95%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Features:
Note:
*1 When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.
*2 USB_E1, USB_E2, USB_E3 & USB_E4 share bandwidth.*1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
*1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 2 mode)*1* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: Mini Tower
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: ATX
- Expansion
- Full Height Slots: 7
- Max Card Depth: 10""
- External 5.25" Bays: 3
- Internal 3.5" Bays: 3
- External 3.5" Bays: 2
- Internal 2.5" Bays: 1
- Front Ports
- USB 2.0 Ports (Front): 2
- Front Audio Ports: 1
- Cooling System
- Maximum Fan Count: 1
- Included Fans: 1
- Physical
- Depth: 435mm
- Width: 190mm
- Height: 423mm
- Shipping Box - Depth: 8.90"
- Shipping Box - Width: 20.50"
- Shipping Box - Height: 19.20"
- Shipping Weight: 25lbs
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: ATX 12V 350W Power Supply
