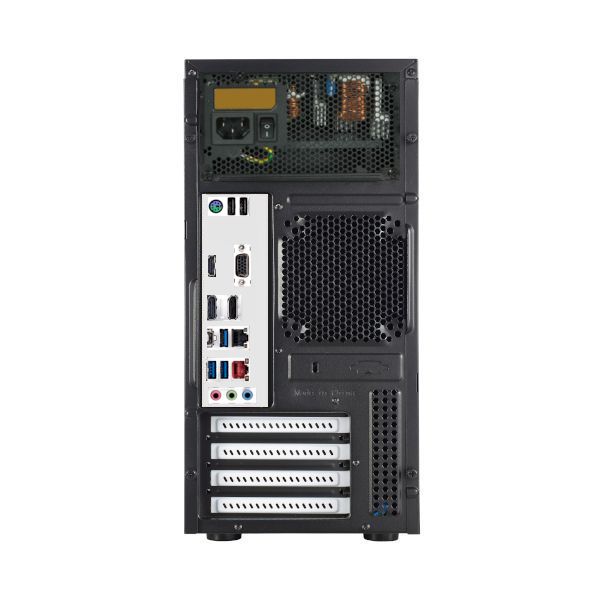

SL-DK-GQ670M-FD

Name: SL-DK-GQ670M-FD
SKU: SL-DK-GQ670M-FD

Desktop PC - Desktop featuring Intel Q670 Chipset, 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron®, 2x 2.5GbE + 1GbE LAN, 1x Serial, Up to 128GB RAM, 6x USB 2.0 Ports ( 1 Front, 2 Rear, 3 Internal Headers ), 5x USB 3.2 Gen 1 Ports ( 1 Front, 3 Rear, 1 Internal Headers ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Rear ), 3x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

Desktop PC
Dimension: 410mm x 175mm x 358mm

Motherboard:

Featuring Intel Q670 Chipset and 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® processor
Full Height Slots:
2 - PCIe x16
1 - PCIe x1
LAN: 2x Ports (2.5GbE + 1GbE)
RAID: 0,1,5,10 and NVMe 0,1
Video: VGA + HDMI + DisplayPort + DisplayPort
Audio: Realtek® Audio CODEC
Ports:
6x USB 2.0 Ports ( 1 Front, 2 Rear, 3 Internal Headers )
5x USB 3.2 Gen 1 Ports ( 1 Front, 3 Rear, 1 Internal Headers )
1x USB 3.2 Gen 2 Type-C Port ( 1 Rear )
1x COM Port (RS232 Internal Headers)
1x Parallel Port (Headers)
1x Front Audio Port
See specifications for more ports
Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

Processor: G7400- 3.70GHz Intel Pentium Gold CPU - Dual Core, 6MB Cache, UHD Graphics 710 (Base 46W) (ERM)
Memory: 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: 400W Power Supply
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

G6900- 3.40GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 710 (46W) (ERM) show $105.00

G7400- 3.70GHz Intel Pentium Gold CPU - Dual Core, 6MB Cache, UHD Graphics 710 (Base 46W) (ERM) show $146.00

i3-12100 - 3.30GHz (up to 4.30GHz) Intel Core CPU - 4 Core, 12MB Cache, UHD Graphics 730 (Base 60W, Max 89W) (ERM) show $182.00

i5-12400 - 2.50GHz (up to 4.40GHz) Intel Core CPU - 6 Cores, 18MB Cache, UHD Graphics 730 (Base 65W, Max 117W) (ERM) show $295.00

i7-12700 - 2.10GHz (up to 4.90GHz) Intel Core CPU - 12 Cores (8 P Cores + 4 E Cores), 25MB Cache, UHD Graphics 770 (Base 65W, Max 180W) (ERM) show $487.00

i3-13100 - 3.40GHz (up to 4.50GHz) Intel Core CPU - 4 Core, 12MB Cache, UHD Graphics 730 (Base 60W, Max 89W) (ERM) show $236.00

i5-13400 - 2.50GHz (up to 4.60GHz) Intel Core CPU - 10 Cores, 20MB Cache, UHD Graphics 730 (Base 65W, Max 154W) (ERM) show $350.00

i7-13700 - 1.50GHz (up to 5.20GHz) Intel Core CPU - 16 Cores (8 P Cores + 8 E Cores), 30 MB Cache, UHD Graphics 770 (Base 65W, Max 219W) (ERM) show $610.00

i9-13900 - 2.0GHz (up to 5.60GHz) Intel Core CPU - 24 Cores (8 P Cores + 16 E Cores), 32 MB Cache, UHD Graphics 770 (Base 65W, Max 219W) (ERM) show $1,001.00

Memory

x 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $35.00

x 16GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $69.00

x 32GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $129.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

5.25" CD/DVD Burner show $31.00

5.25" Blu-Ray 16x Readable & ReWriteable Drive show $148.00

Removable Drive Bay

1x 3.5" Hard Drive Aluminum Removable Bay (Require a 5.25" external bay) show $53.00 each

Replacement Caddy for SL-HDD-MR-SATA-MIL HDD Rack show $33.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage show $208.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage with Locks. show $280.00 each

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot show $160.00 each

Additional Hard Drives

250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980 show $83.00 each

500GB NVMe SSD M.2 3.1GB/2.6GB - Samsung 980 show $105.00 each

1TB PCIe 5.0 NVMe SSD M.2 5,000/4,200MB/s - Samsung 990 EVO show $111.00 each

2TB PCIe 5.0 NVMe SSD M.2 5,000/4,200MB/s - Samsung 990 EVO show $172.00 each

1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $161.00 each

2TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $215.00 each

4TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $401.00 each

4TB SSD M.2 NVMe SSD - 7300MB/6600MB - WD Black show $424.00 each

240GB SATA 3 2.5" SSD - 500/350MB Read/Write or greater. show $48.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $91.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $170.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $240.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $402.00 each

1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue show $88.00 each

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series show $170.00 each

4.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E8 Series show $218.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS 7E8 Series show $323.00 each

12.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $428.00 each

14.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $435.00 each

16.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $480.00 each

18.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $660.00 each

2.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $122.00 each

4.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $153.00 each

4.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $136.00 each

6.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $182.00 each

Raid Controller

Configure NVMe RAID 0 (Striping) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter. show $0.00 each

Configure NVMe RAID 1 (Mirroring) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter show $0.00 each

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Cable

Add 2 USB 2.0 Ports via connections from onboard header. show $14.00 each

Add 1 DB9 Serial Port 9-pin Serial to 10-pin Header 16" show $7.00 each

Add 1 16in DB25 Parallel Female to IDC 25 Pin Header Slot Plate show $8.00 each

3 ft HDMI® to DVI-D Cable - M/M show $8.00 each

6 ft HDMI® to DVI-D Cable - M/M show $10.00 each

10 ft Gold Plated DisplayPort to HDMI® Cable show $26.00 each

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $61.00 each

4-Port USB 3.2 Gen 1 PCIe Card - PCIe x1, Full-Height Only show $30.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

Networking

PCIe x1 - WiFi 6 802.11ax Bluetooth 5.0 - Wi-Fi/Bluetooth Combo Adapter - 2.93 Gbit/s - 2.40 GHz ISM - show $77.00 each

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $36.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $250.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $243.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 10/100/1000/2500Mbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Pr show $46.00 each

PCIe x4 - 100/1000/2500/5000Mbps Single Port Network Adapter - Full Height or Low Profile show $120.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $284.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $712.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $857.00 each

Power Supply

400W Power Supply show $87.00

600W Power SupplyPart Delay: ETA December 30, 2024 show $121.00

850W ATX12V / EPS12V Full Modular Power Supply - 80+ Gold Certified show $232.00

Monitors

None show Included

Asus VP229Q 21.5" Full HD LED LCD Monitor - 16:9 - Black - 22" Class - In-plane Switching (IPS) Technology - 1920 x 1080 - 16.7 Million Colors - Adapt show $151.00

23.8" 16:9 75 Hz Adaptive-Sync IPS Monitor show $148.00

27" Monitor, 1080P Full HD, 75Hz, IPS, Adaptive-Sync, Eye Care, HDMI DisplayPort VGA USB Hub, Frameless, Ergonomic Design, VESA Wall Mountable show $228.00

29" HDR10 IPS Full HD UltraWide™ Monitor (2560x1080) with AMD FreeSync™, MAXXAudio®, Flicker Safe, Reader Mode, Dynamic Action Sync, Blac show $275.00

32" 4K UHD 3840 x 2160 Monitor Featuring Wide Color Gamut and FreeSync show $412.00

34" Ultra-Wide Freesync HDR Gaming Monitor 75Hz 1440P Eye Care DisplayPort HDMI,Black show $518.00

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $118.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $178.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $138.00 each

USB Keyboard/Mouse - Waterproof, NEMA4 show $502.00 each

USB Keyboard/Mouse - Waterproof, IP67/NEMA4x show $672.00 each

External Power

None show Included

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop/Wall Mount show $125.00

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop / Wall Mount show $145.00

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & Serial ports show $595.00

Tripp Lite Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $95.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MicroATX
Supported CPU
Number of Processors: 1
Processor Type: 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
Chipset
Chipset: Intel Q670 Chipset
Memory
Memory Type: DDR5 4800MHz
Memory Type: Non-ECC
DIMMS: 4
Maximum Memory: 128GB
On Board Audio
Audio Type: Realtek® Audio CODEC
On Board Video
Video Chipset: None
Video on IO: VGA + HDMI + DisplayPort + DisplayPort
VGA Port Out: 1
Display Port Out: 2
HDMI Out: 1
LAN
LAN Ports: 2
LAN Type: 2.5GbE + 1GbE
LAN Chipset: Intel® 2.5Gb Ethernet
Second LAN Chipset: Intel® GbE LAN chip
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 4
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 2
PCI Express x1 Slots On Motherboard: 1
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
PCIe Signal
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.
M.2 Slot #2 Specs
M.2 SATA SSD
PCIe Signal
2280 - 22 mm x 80 mm.
Rear IO
PS/2 Combo (Mouse/Keyboard)
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 1 Type A Ports (on IO): 3
USB 3.2 Gen 2 Type C Ports (on I/O): 1
Audio on IO
Headers
USB 2.0 Ports (on Headers): 4
USB 3.2 Gen 1 Ports (on Headers): 2
Thunderbolt 3 via Header: 2
Serial (via Headers): 1
Parallel Ports: 1
SPDIF Connector: 1
FAN Connectors: 4
Audio on Headers
TPM Support: 2.0 Module Included
Environmental
Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
High Humidity: 90%
Low Humidity: 5%
Operating System Support
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC Value
Windows 11 IoT 2024 LTSC High End
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
CE
FCC
Other Features
Features:
Expansion Slots

CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
  For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
2. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1
Storage

CPU:
1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 5 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year
