SL-DK-PD-Q170SSQ-ID

Name: SL-DK-PD-Q170SSQ-ID
SKU: SL-DK-PD-Q170SSQ-ID

Desktop PC - Desktop featuring Long Production Cycle Motherboard (Through Q4 2025) withIntel Q170 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 2x 1GbE + 1GbE LAN, 4x Serial, Up to 64GB RAM, 8x USB 2.0 Ports ( 4 Front, 4 Rear ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), 4x Expansion Slots, Power Supply 300 Watt Power Supply.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

Desktop PC
Dimension: 10.80" x 5.50" x 12.70"

Motherboard:

Featuring Intel Q170 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
Long Production Cycle Motherboard (Through Q4 2025)
Full Height Slots:
1 - PCIe x16
2 - PCIe x4
1 - PCIe x1
LAN: 2x Ports (1GbE + 1GbE)
RAID: 0,1,5,10
Video: DVI-D + HDMI + DisplyPort
Audio: 7.1 Channel HD Audio by Realtek® ALC888S
Ports:
8x USB 2.0 Ports ( 4 Front, 4 Rear )
4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
4x COM Ports (RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
Memory: 8GB DDR4 2666MHz RAM
Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
Power Supply: 300W SFX-form factor power supply
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

G3900 - 2.8GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics 510 (51W) (ERM) show $40.00

G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better show $138.00

i3-6100 - 3.7GHz Intel Dual Core w/ Hyper-Threading - 3MB Cache, HD Graphics 530 (51W) (ERM) show $261.00

i5-6500 - 3.2GHz (up to 3.6GHz) Intel Quad Core - 6MB Cache, HD Graphics 530 (65W) (ERM) show $362.00

i7-6700 - 3.4GHz (up to 4.0GHz) Intel Quad Core - 8MB Cache, HD Graphics 530 (65W) (ERM) show $622.00

i5-7500 - 3.4GHz (up to 3.8GHz) Intel Quad Core - 6MB Cache, HD Graphics 630 (65W) (ERM) No WIN 7 Support show $370.00

i7-7700 - 3.6GHz (up to 4.2GHz) Intel Quad Core - 8MB Cache, HD Graphics 630 (65W) (ERM) No WIN 7 Support show $628.00

Memory

x 8GB DDR4 2666MHz RAM show $30.00

x 16GB DDR4 2666MHz RAM show $57.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

5.25" CD/DVD Burner show $31.00

5.25" Blu-Ray 16x Readable & ReWriteable Drive show $148.00

Removable Drive Bay

None show Included

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot show $160.00

Additional Hard Drives

240GB SATA 3 2.5" SSD - 500/350MB Read/Write or greater. show $48.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $91.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $170.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $240.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $402.00 each

1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue show $88.00 each

2.0TB SATA 6Gb/s 7200RPM 64MB 3.5" - WD Black show $160.00 each

4.0TB SATA 6Gb/s 7200RPM 256 MB 3.5" - WD Black show $216.00 each

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series show $170.00 each

2.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $122.00 each

4.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $153.00 each

4.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $136.00 each

6.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $182.00 each

6.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $265.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $333.00 each

10.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $360.00 each

12.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $428.00 each

14.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $435.00 each

16.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $480.00 each

18.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $660.00 each

Raid Controller

None show Included

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show $0.00

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show $0.00

Cable

COM Port (Serial Port) Cable, 9-pin, w/ Standard-Height Bracket show $10.00 each

2 x COM Port (Serial ports) RS232 Cable, 9-pin, w/ Standard-Height Bracket show $12.00 each

Add 2 USB 2.0 Ports via connections from onboard header. show $14.00 each

TPM 2.0 Module - 20-pin module with Infineon 9665, TCG 2.0 compliant trusted platform module show $47.00 each

DisplayPort to DVI-D Video Adapter Converter *DVI-D (digital only, will not work with a DVI-I to VGA show $15.00 each

DisplayPort® to HDMI® Video Adapter Converter show $29.00 each

DisplayPort to VGA Video Adapter Converter show $33.00 each

3 ft HDMI® to DVI-D Cable - M/M show $8.00 each

6 ft HDMI® to DVI-D Cable - M/M show $10.00 each

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $61.00 each

4-Port USB 3.2 Gen 1 PCIe Card - PCIe x1, Full-Height Only show $30.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

Add-In Graphic Card

None show Included

NVIDIA Quadro T400 4GB 64-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 - No Win 7 Support! show $196.00

NVIDIA Quadro T1000 4GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $464.00

NVIDIA Quadro T1000 8GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $500.00

NVIDIA RTX A400 4GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $210.00

NVIDIA RTX A1000 8GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $540.00

Networking

PCIe x1 - WiFi 6 802.11ax Bluetooth 5.0 - Wi-Fi/Bluetooth Combo Adapter - 2.93 Gbit/s - 2.40 GHz ISM - show $77.00 each

USB 2.0 - Mini Dual Band Wireless-AC Network Adapter show $52.00 each

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $36.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $250.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $243.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 10/100/1000/2500Mbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Pr show $46.00 each

PCIe x4 - 100/1000/2500/5000Mbps Single Port Network Adapter - Full Height or Low Profile show $120.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $284.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $712.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $857.00 each

Power Supply

300W SFX-form factor power supply show $0.00

450W SFX-form factor auto-switching power supply show $109.00

Monitors

Asus VP229Q 21.5" Full HD LED LCD Monitor - 16:9 - Black - 22" Class - In-plane Switching (IPS) Techno show $151.00 each

23.8" 16:9 75 Hz Adaptive-Sync IPS Monitor show $148.00 each

27" Monitor, 1080P Full HD, 75Hz, IPS, Adaptive-Sync, Eye Care, HDMI DisplayPort VGA USB Hub, Frameles show $228.00 each

29" HDR10 IPS Full HD UltraWide™ Monitor (2560x1080) with AMD FreeSync™, MAXXAudio®, Flic show $275.00 each

32" 4K UHD 3840 x 2160 Monitor Featuring Wide Color Gamut and FreeSync show $412.00 each

34" Ultra-Wide Freesync HDR Gaming Monitor 75Hz 1440P Eye Care DisplayPort HDMI,Black show $518.00 each

Keyboard/Mouse

None show Included

USB Keyboard/Mouse - Black/Silver show $24.00

Wireless Keyboard/Mouse show $49.00

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $118.00

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Cap, Black - Waterproof, NEMA4X/IP68 show $97.00

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $178.00

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Charging Base with show $138.00

USB Keyboard/Mouse - Waterproof, NEMA4 show $502.00

USB Keyboard/Mouse - Waterproof, IP67/NEMA4x show $672.00

External Power

None show Included

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop/Wall Mount show $125.00

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop / Wall Mount show $145.00

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & Serial ports show $595.00

Tripp Lite Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $95.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MicroATX
Long Production Cycle
Long Life: YES
EOL Date: Q4 2025
Supported CPU
Number of Processors: 1
Processor Type: 7th and 6th Gen Core i7/i5/i3 (LGA1151)
Chipset
Chipset: Intel Q170 Chipset
Memory
Memory Type: DDR4 2133MHz
Memory Type: Non-ECC
DIMMS: 4
Maximum Memory: 64GB
On Board Audio
Audio Type: 7.1 Channel HD Audio by Realtek® ALC888S
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: DVI-D + HDMI + DisplyPort
DVI-D Out: 1
Display Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 2
LAN Type: 1GbE + 1GbE
LAN Chipset: Intel® i210AT
Second LAN Chipset: Intel® i219LM
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 6
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 1
PCI Express x4 Slots On Motherboard: 2
PCI Express x1 Slots On Motherboard: 1
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 1
M.2 Slot #1 Specs
PCIe Signal
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.

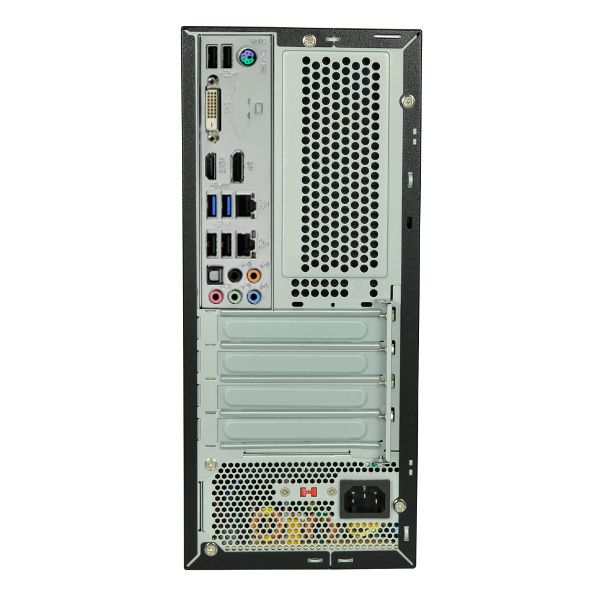

Rear IO
PS/2 Combo (Mouse/Keyboard)
USB 2.0 Ports (on IO): 4
USB 3.2 Gen 1 Type A Ports (on IO): 2
SPDIF Connector: 1
Audio on IO
Headers
USB 2.0 Ports (on Headers): 4
USB 3.2 Gen 1 Ports (on Headers): 2
Serial (via Headers): 4
FAN Connectors: 4
Chassis Intrusion
TPM Support: Via 2.0 Header
Management Features
Watch Dog
Environmental
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
High Humidity: 85%
Low Humidity: 10%
Operating System Support
Windows 7 Ultimate (64-bit)
Windows 7 Pro (32-bit)
Windows 7 Pro (64-bit)
Windows 7 Pro (FES) 32-Bit
Windows 7 Pro (FES) 64-Bit
Windows 7 PRO (FES) DGS 32-BIT
Windows 7 PRO (FES) DGS 64-BIT
SL-Windows 10PRO to 7PRO 32-bit
SL-Windows 10PRO to 7PRO 64-bit
Windows Embedded 7 (32-Bit)
Windows Embedded 7 (64-Bit)
Windows 8.1 (64-bit)
Windows 8.1 Pro (64-bit)
Windows Embedded 8 (64-bit)
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT Value
Windows 10 IoT Ent
Windows 10 IoT Value 2019 LTSC
Windows 10 IoT Ent 2019 LTSC
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
Windows Server 2012
Windows Server 2016 STD
Windows Server 2019 Std
RED HAT Enterprise LINUX SERVER STANDARD
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
UL
CE
RoHS
FCC
Other Features
Other Features:
- 1 PCI-E 3.0 x16 (in x16) Slot
- 2 PCI-E 3.0 x4 (in x4) Slot
- 1 PCI-E 3.0 x1 (in x1) Slot
- M.2 PCI-E x2 M Key 2242/2260/2280, PCI-E 3.0 x4 with open slots
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year
