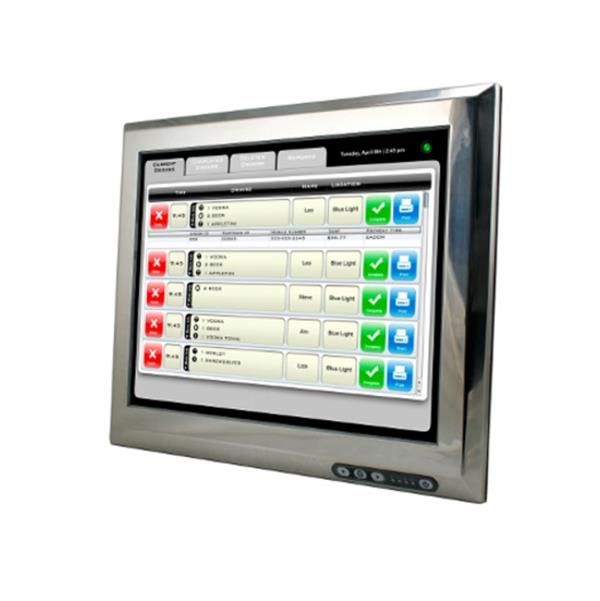

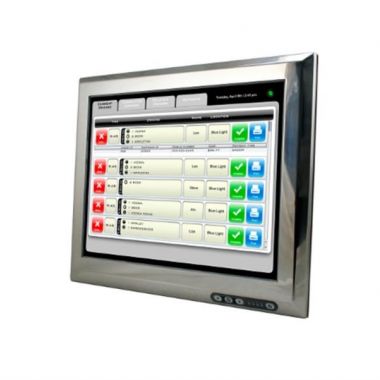

SL-PPC-17-E3845SPC-IP65 This item is no longer available.
17" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen Intel ATOM SoC, Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W, 1x LAN, 1x Serial, Up to 8GB RAM, 3x USB 2.0 Ports ( 3 Rear ), 1280 x 1024 resolution.
8-12 Weeks Lead Time - Please Call For Current Status
Type:
- Fanless Panel PC
- Screen:
- 17" 5-Wire Resistive, Native Resolution: 1280 x 1024, Front Panel Rating: IP65
Motherboard:
- Featuring Intel ATOM SoC and Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W
- Video: HDMI
- Audio: Onboard Audio
- Ports:
3x USB 2.0 Ports ( 3 Rear )
1x COM Port (RS232 Rear)
See specifications for more ports - Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)
Also Included:
- Memory: 4GB DDR3 1333MHz SODIMM RAM
- Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: Panel
- Fanless
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W
- Chipset
- Chipset: Intel ATOM SoC
- Memory
- Memory Type: SO DIMM DDR3 1333MHz
- Memory Type: Non-ECC
- DIMMS: 1
- Maximum Memory: 8GB
- On Board Audio
- Audio Type: Onboard Audio
- On Board Video
- Video Chipset: Intel® Valleyview SoC integrated Graphics
- Video on IO: HDMI
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Chipset: Intel® i210IT
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA II Ports (3GB): 1
- Compact Flash: 1
- Mini PCIe
- mini PCIe
- mSATA
- half and/or full size mini PCIe card: full size
- M.2 Slot Specs
- Rear IO
- USB 2.0 Ports (on IO): 3
- Serial (Rear IO): 1
- Environmental
- Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF )
- High Humidity: 90%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- Windows 7 PRO (FES) DGS 32-BIT
- Windows 7 PRO (FES) DGS 64-BIT
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows Embedded 8 (32-bit)
- Windows Embedded 8 (64-bit)
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (32-bit)
- Windows 8.1 Pro (64-bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT Entry
- Windows 10 IoT Entry 2019 LTSC
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Warranty of Component
- Motherboard Warranty: 1 Year
Display Specifications
- Display
- Screen Size (inches): 17
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65
- Aspect Ratio: 4 : 3
- Native Display Resolution: 1280 x 1024
- Brightness (nits): 350
- Display Area (H): 337.92"
- Display Area (V): 270.33"
- Aspect Ratio: 4 : 3
- DisplayColors: 16.2 M
- Contrast Ratio: 800:1
- Backlight: LED
- Viewing Angle(U) : 80
- Viewing Angle(D) : 80
- Viewing Angle(L) : 85
- Viewing Angle(R) : 85
- Mounting Options

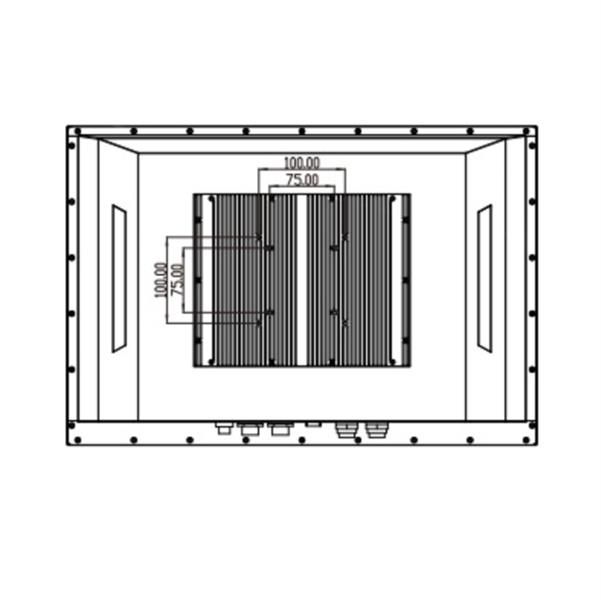

- Mounting Options: VESA 75mm x 75mm, Other options sold separately
- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):

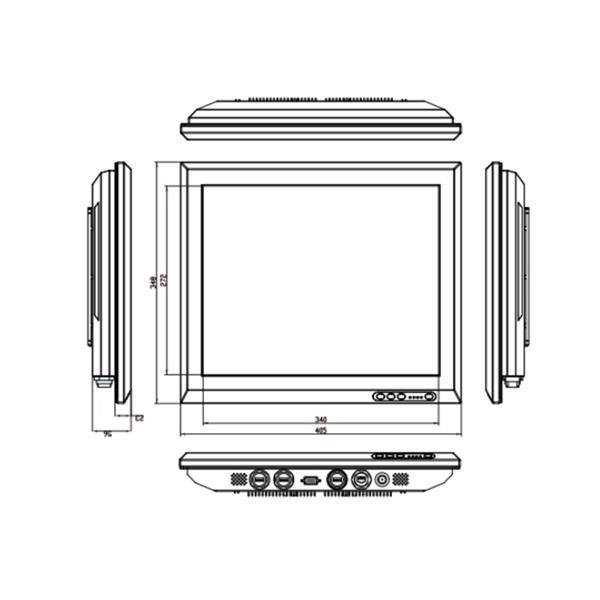

- Physical
- Width: 405mm
- Height: 353mm
- Depth: 66.60"
- Depth (Inches): 2.6
- Unboxed Weight: 17lbs
- Shipping Weight: 30lbs
- Environmental
- MTBF: 30000hours
- Maximum Operating Temperature: 40C
- High Humidity: 90%
- Storage Temp (High): 40C
- Storage Humidity (High): 60%
- Storage Humidity (Low): -20%
- Power
- Power Supply: Accepts 12VDC, 100-240VAC/12VDC 5A 60W External Power Adapter included
- Power Consumption (on): 60Watts
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Warranty
- Warranty: 1 year

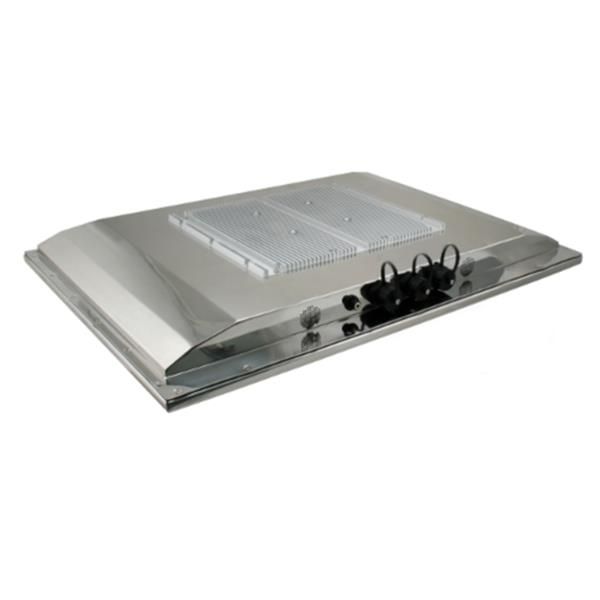

Chassis Specifications:
- General
- Form Factor: Panel PC
- Color: Stainless Steel
- Material: Stainless Steel
- Material Thickness: 1mm
- Expansion
- Internal 2.5" Bays: 1
- Physical
- Depth: 66.60"
- Depth (Inches): 2.6
- Width: 405mm
- Height: 353mm
- Shipping Box - Depth: 166mm
- Shipping Box - Width: 505mm
- Shipping Box - Height: 453mm
- Shipping Weight: 30lbs
