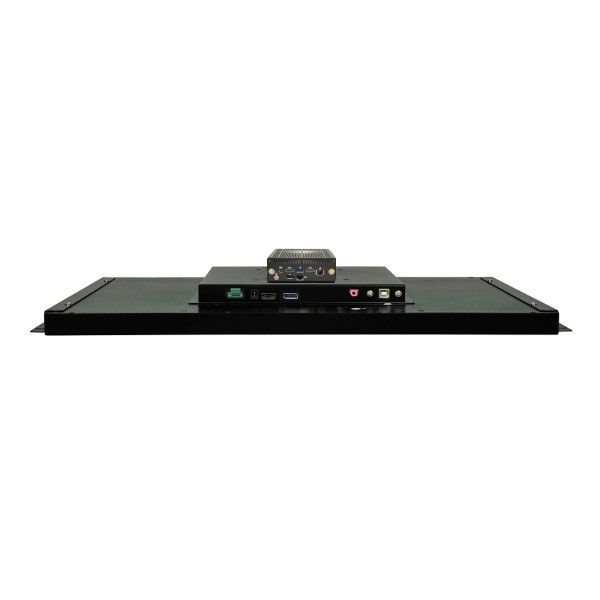

SL-PPC-22AWHD-J6412-H-2LAN
21.5" Fanless HMI Panel PC with Multi-Touch Projected Capacitive Touch Screen Long Production Cycle Motherboard (Through Q1 2036) with Intel Celeron SoC, Intel Celeron J6412 Elkhart Lake Platform (Quad Core 2.0GHz/10W, Turbo 2.6GHz), 2x 2.5GbE (10/100/1000/2500) LAN, WIFI,Up to 32GB RAM, 1x USB 2.0 Port( 1 Front ), 1x USB 3.2 Gen 1 Port( 1 Front ), 1x USB 3.2 Gen 2 Port ( 1 Rear ), 1920 x 1080 resolution, Power Supply Adapter : AC_90~240V / DC_12V/40W.
LCD requires 12VDC power supply (included), Separate Computer input is wide voltage input
Type:
- Fanless Panel PC
- Screen:
- 21.5" Multi-Touch Projected Capacitive, Native Resolution: 1920 x 1080, Front Panel Rating: Not Rated
- Mounting: Suitable for Mounting in Cut-Out
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron J6412 Elkhart Lake Platform (Quad Core 2.0GHz/10W, Turbo 2.6GHz)
- Long Production Cycle Motherboard (Through Q1 2036)
- LAN: 2x Ports (2.5GbE (10/100/1000/2500))
- WiFi: Wireless AC
- Video: DisplayPort + HDMI
- Audio: Realtek ALC888S HD Audio
- Ports:
1x USB 2.0 Port( 1 Front )
1x USB 3.2 Gen 1 Port( 1 Front )
1x USB 3.2 Gen 2 Port ( 1 Rear )
See specifications for more ports - Operating Temperature: -20ºC to 60ºC (-4ºF to 140ºF)
Also Included:
- Memory: 8GB DDR4 3200MHz SODIMM RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: Adapter : AC_90~240V / DC_12V/40W
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: NUC (101x101 mm)
- Long Production Cycle
- Long Life: YES
- EOL Date: Q1 2036
- Fanless
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Celeron J6412 Elkhart Lake Platform (Quad Core 2.0GHz/10W, Turbo 2.6GHz)
- Chipset
- Chipset: Intel Celeron SoC
- Memory
- Memory Type: SO DIMM DDR4 3200MHz
- Memory Type: Non-ECC
- DIMMS: 1
- Maximum Memory: 32GB
- On Board Audio
- Audio Type: Realtek ALC888S HD Audio
- On Board Video
- Video Chipset: Intel® UHD Graphics for 10th Gen Intel® Processors
- Video on IO: DisplayPort + HDMI
- Display Port Out: 1
- HDMI Out: 2
- LAN
- LAN Ports: 2
- LAN Type: 2.5GbE (10/100/1000/2500)
- LAN Chipset: Intel® I225-V 2.5GbE Ethernet
- Second LAN Chipset: Intel® i225-V 2.5GbE Ethernet
- Wireless LAN: Wireless AC
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- M.2 SATA SSD
- PCIe Signal
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- Rear IO
- USB 3.2 Gen 2 Type A Ports (on IO): 1
- Headers
- USB 2.0 Ports (on Headers): 1
- USB 3.2 Gen 1 Ports (on Headers): 1
- FAN Connectors: 1
- Management Features
- TPM Support: TPM via Intel Platform Trust Technology
- Environmental
- Operating Temperature: -20ºC to 60ºC (-4ºF to 140ºF )
- High Humidity: 95%
- Low Humidity: 10%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 IoT 2021 LTSC Entry
- Windows 11 Home (64 Bit)
- Windows 11 Pro (64 Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 11 IoT 2024 LTSC Entry
- LINUX Ubuntu Desktop
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- CB
- CCC
- Warranty of Component
- Motherboard Warranty: 1 Year
Display Specifications
- Display
- Screen Size (inches): 21.5
- Touch Type: Multi-Touch Projected Capacitive
- Aspect Ratio: 16 : 9
- Native Display Resolution: 1920 x 1080
- Brightness (nits): 250
- Screen Refresh Rate: 60Hz
- Display Area (H): 476.06mm
- Display Area (V): 267.79mm
- Aspect Ratio: 16 : 9
- DisplayColors: 16.7 M
- Contrast Ratio: 3000:1
- Backlight: LED
- Viewing Angle(U) : 178
- Viewing Angle(D) : 178
- Viewing Angle(L) : 178
- Viewing Angle(R) : 178
- Connectivity
- HDMI In: 1
- Display Port In: 1
- Touchscreen Interface USB Port (Front): 1
- Mounting Options
- Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Other options sold separately
- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):
- Physical
- Width:
- Height:
- Depth:
- Depth (Inches): Click Available Downloads Tab
- Unboxed Weight: 12lbs
- Shipping Weight: 18lbs
- Environmental
- MTBF: 30000hours
- Maximum Operating Temperature: 50C
- High Humidity: 90%
- Low Humidity: 5%
- Storage Temp (High): 60C
- Storage Temp (Low): -20C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 5%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 18Watts
- Compliance of Component
- CCC
- Warranty
- Warranty: 1 year
- Other
- Built-in Chassis Power Supply: Wide Voltage 9-36VDC Input
- Features:
21.5" Open Frame Widescreen
Display Specifications
- Display
- Screen Size: 21.5"
- Touch Type: Multi-Touch Projected Capacitive
- Front Panel Rating: Not Rated
- Color: Black
- Native Display Resolution: 1920 x 1080
- Brightness (nits): 250
- Aspect Ratio: 16 : 9
- DisplayColors: 16.7 M
- Contrast Ratio: 3000:1
- Backlight: LED
- Wide Voltage 9-36VDC Power input
- Connectivity
- Displayport: 1
- HDMI In: 1
Chassis Specifications:
- General
- Form Factor: NUC Box
- Front Facing I/O
- Color: Black
- Material: Steel & Plastic
- Material Thickness: 1mm
- Front Ports
- USB 2.0 Ports (Front): 1
- USB 3.2 Ports (Front): 1
- USB 3.2 Gen 2 Type-C (Front): 2
- Front Audio Ports: 1
- Physical
- Depth: 109.20mm
- Depth (Inches): Click Available Downloads Tab
- Width: 125mm
- Height: 44.50mm
- Shipping Box - Depth:
- Shipping Box - Width:
- Shipping Box - Height:
- Shipping Weight: 2lbs
- Power
- Built-in Chassis Power Supply: Adapter : AC_90~240V / DC_12V/40W
