SL-PPC-22W-E3845SPC-IP65 This item is no longer available.

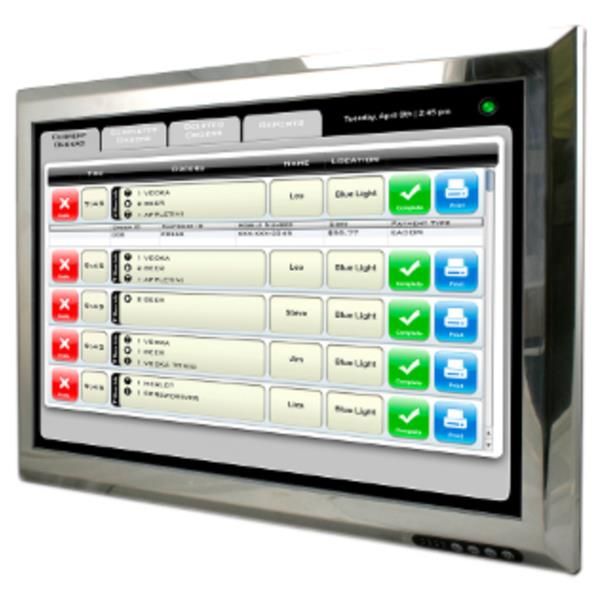

22" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen Intel ATOM SoC, Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W, 1x LAN, 1x Serial, Up to 8GB RAM, 2x USB 2.0 Ports ( 2 Rear ), 1x USB 3.2 Gen 1 Port( 1 Rear ), 1680 x 1050 resolution.
8-12 Weeks Lead Time - Please Call For Current Status
Type:
- Fanless Panel PC
- Screen:
- 22" 5-Wire Resistive, Native Resolution: 1680 x 1050, Front Panel Rating: IP65
Motherboard:
- Featuring Intel ATOM SoC and Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W
- Video: HDMI
- Audio: Onboard Audio
- Ports:
2x USB 2.0 Ports ( 2 Rear )
1x USB 3.2 Gen 1 Port( 1 Rear )
1x COM Port (RS232 Rear)
See specifications for more ports - Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)
Also Included:
- Memory: 4GB DDR3 1333MHz SODIMM RAM
- Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: Panel
- Fanless
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Atom E3845 Processor (1.91GHz Quad Core) TDP 10W
- Chipset
- Chipset: Intel ATOM SoC
- Memory
- Memory Type: SO DIMM DDR3 1333MHz
- Memory Type: Non-ECC
- DIMMS: 1
- Maximum Memory: 8GB
- On Board Audio
- Audio Type: Onboard Audio
- On Board Video
- Video Chipset: Intel® Valleyview SoC integrated Graphics
- Video on IO: HDMI
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Chipset: Intel® i210IT
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA II Ports (3GB): 1
- Compact Flash: 1
- Mini PCIe
- mini PCIe
- mSATA
- half and/or full size mini PCIe card: full size
- M.2 Slot Specs
- Rear IO
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 1
- Serial (Rear IO): 1
- Environmental
- Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF )
- High Humidity: 80%
- Low Humidity: 20%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- Windows 7 PRO (FES) DGS 32-BIT
- Windows 7 PRO (FES) DGS 64-BIT
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows Embedded 8 (32-bit)
- Windows Embedded 8 (64-bit)
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (32-bit)
- Windows 8.1 Pro (64-bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 IoT Entry
- Windows 10 IoT Entry 2019 LTSC
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Warranty of Component
- Motherboard Warranty: 1 Year
Display Specifications
- Display
- Screen Size (inches): 22
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65
- Aspect Ratio: 16 : 10
- Native Display Resolution: 1680 x 1050
- Brightness (nits): 250
- Display Area (H): 473.76"
- Display Area (V): 296.10"
- Aspect Ratio: 16 : 10
- DisplayColors: 16.2 M
- Contrast Ratio: 1000:1
- Backlight: LED
- Viewing Angle(U) : 80
- Viewing Angle(D) : 80
- Viewing Angle(L) : 85
- Viewing Angle(R) : 85
- Mounting Options

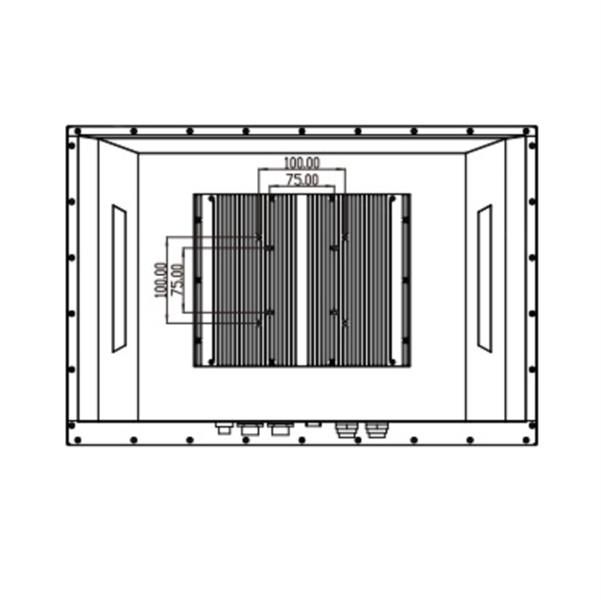

- Mounting Options: VESA 75mm x 75mm, Other options sold separately
- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):

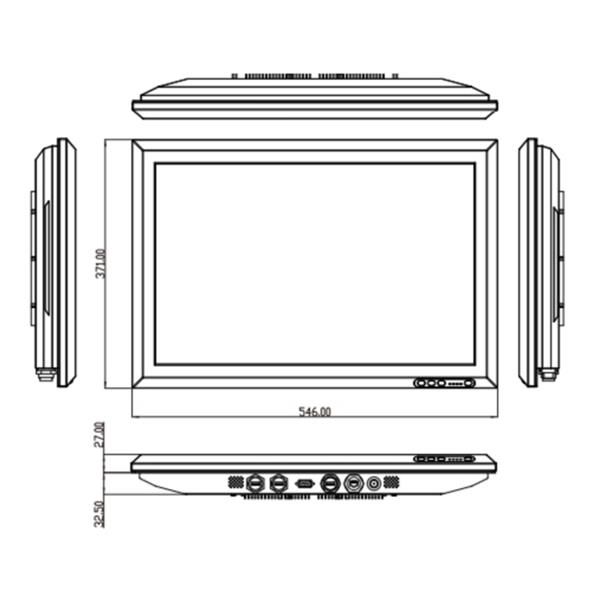

- Physical
- Width: 546mm
- Height: 378mm
- Depth: 69mm
- Depth (Inches): 2.72
- Unboxed Weight: 9lbs
- Shipping Weight: 45lbs
- Environmental
- MTBF: 30000hours
- Maximum Operating Temperature: 40C
- High Humidity: 80%
- Low Humidity: 20%
- Storage Temp (High): 40C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 5%
- Power
- Power Supply: Accepts 12VDC, 100-240VAC/12VDC 5A 60W External Power Adapter included
- Power Consumption (on): 60Watts
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Warranty
- Warranty: 1 year
Chassis Specifications:
- General
- Form Factor: Panel PC
- Color: Silver
- Material: Stainless Steel
- Material Thickness: 1mm
- Expansion
- Internal 2.5" Bays: 1
- Physical
- Depth: 69mm
- Depth (Inches): 2.72
- Width: 546mm
- Height: 378mm
- Shipping Box - Depth: 169mm
- Shipping Box - Width: 846mm
- Shipping Box - Height: 678mm
- Shipping Weight: 45lbs
