SL-PPC-15AWHD-N2930-1LAN-AC
15.6" Fanless HMI Panel PC with 5-Wire Resistive Touch Screen Long Production Cycle Motherboard (Through Q1 2029) with Intel Celeron SoC, Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W, 1x 1GbE (10/100/1000) LAN, WIFI,Up to 8GB RAM, 2x USB 2.0 Ports ( 2 Rear ), 1x USB 3.2 Gen 1 Port( 1 Front ), 1920 x 1080 resolution, Power Supply 9V - 24V DC In Jack.
Type:
- Fanless Panel PC
- Screen:
- 15.6" 5-Wire Resistive, Native Resolution: 1920 x 1080, Front Panel Rating: IP65 / NEMA4
- Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
- Long Production Cycle Motherboard (Through Q1 2029)
- LAN: 1x Ports (1GbE (10/100/1000))
- WiFi: Wireless AC
- Video: HDMI
- Audio: Onboard Audio
- Ports:
2x USB 2.0 Ports ( 2 Rear )
1x USB 3.2 Gen 1 Port( 1 Front )
See specifications for more ports - Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF)
Also Included:
- Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
- Hard Drive: 256GB mSATA SSD SATA 6.0Gb/s, 550/500MB/s read/write (or greater)
- Power Supply: 9V - 24V DC In Jack
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: NUC (101x101 mm)
- Long Production Cycle
- Long Life: YES
- EOL Date: Q1 2029
- Fanless
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
- Chipset
- Chipset: Intel Celeron SoC
- Memory
- Memory Type: SO DIMM DDR3 1333MHz
- Memory Type: Non-ECC
- DIMMS: 1
- Maximum Memory: 8GB
- On Board Audio
- Audio Type: Onboard Audio
- On Board Video
- Video Chipset: Supported by CPU - see Embedded CPU Information
- Video on IO: HDMI
- HDMI Out: 2
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Intel® 82574L
- Wireless LAN: Wireless AC
- Expansion Slots
- mSATA
- half and/or full size mini PCIe card: full size
- M.2 Slot Specs

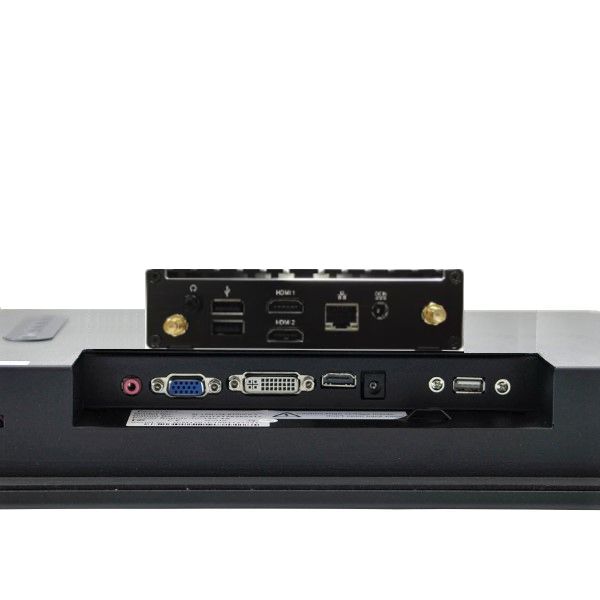

- Rear IO
- USB 2.0 Ports (on IO): 2
- Headers
- USB 3.2 Gen 1 Ports (on Headers): 1
- Environmental
- Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF )
- High Humidity: 95%
- Low Humidity: 10%
- Operating System Support
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- Windows 7 PRO (FES) DGS 32-BIT
- Windows 7 PRO (FES) DGS 64-BIT
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 10 IoT 2021 LTSC Entry
- SL-Windows 11PRO to 10PRO 32bit
- SL-Windows 11PRO to 10PRO 64bit
- LINUX Ubuntu Desktop
- Compliance of Component
- CE
- RoHS
- FCC
- Warranty of Component
- Motherboard Warranty: 1 Year
Display Specifications
- Display
- Screen Size (inches): 15.6
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 16:9
- Native Display Resolution: 1920 x 1080
- Brightness (nits): 250
- Screen Refresh Rate: 60Hz
- Display Area (H): 344.16mm
- Display Area (V): 193.59mm
- Aspect Ratio: 16:9
- DisplayColors: 16.2 M
- Contrast Ratio: 400:1
- Backlight: LED
- Viewing Angle(U) : 70
- Viewing Angle(D) : 70
- Viewing Angle(L) : 60
- Viewing Angle(R) : 60
- Connectivity
- VGA Port In: 1
- DVI-I In: 1
- HDMI In: 1
- Touchscreen Interface USB Port (Front): 1
- Mounting Options
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):
- Physical
- Width:
- Height:
- Depth:
- Depth (Inches): Click Available Downloads Tab
- Unboxed Weight: 10lbs
- Shipping Weight: 30lbs
- Environmental
- MTBF: 30000hours
- Maximum Operating Temperature: 50C
- High Humidity: 90%
- Low Humidity: 8%
- Storage Temp (High): 60C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 8%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 13Watts
- Compliance of Component
- CE
- RoHS
- FCC
- CB
- CCC
- Warranty
- Warranty: 1 year
- Other
- Features:
Industrial Display
- Screen Size: 15.6"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 1920 x 1080
- Brightness (nits): 250
Chassis Specifications:
- General
- Form Factor: NUC Box
- Front Facing I/O
- Color: Black
- Material: Steel & Plastic
- Material Thickness: 1mm
- Front Ports
- USB 3.2 Ports (Front): 1
- RS232 COM Ports (Front): 1
- Physical
- Depth: 109mm
- Depth (Inches): 4.295
- Width: 129mm
- Height: 34mm
- Shipping Box - Depth:
- Shipping Box - Width:
- Shipping Box - Height:
- Shipping Weight:
- Power
- Built-in Chassis Power Supply: 9V - 24V DC In Jack
