SL-PPC-19AW-AH310I-S17 This item is no longer available.
19" HMI Panel PC with 5-Wire Resistive Touch Screen Intel H310 Chipset, 8th and 9th Gen Core i7/i5/i3 (LGA1151), 1x GB (10/100/1000) LAN, WIFI,Up to 32GB RAM, 4x USB 2.0 Ports ( 2 Front, 2 Rear ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), 1366 x 768 resolution, Power Supply AC/DC Power Adapter Included.
19" Widescreen
Type:
- Panel PC
- Screen:
- 19" 5-Wire Resistive, Native Resolution: 1366 x 768, Front Panel Rating: IP65 / NEMA4
- Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out
Motherboard:
- Featuring Intel H310 Chipset and 8th and 9th Gen Core i7/i5/i3 (LGA1151) processor
- No Available Slots
- LAN: 1x Ports (GB (10/100/1000))
- WiFi: Integrated Intel® 802.11ac WiFi Module + Bluetooth 4.2 - Removable Under Networking Section
- Video: DVI-I + HDMI + DisplayPort
- Audio: 8-Channel HD Audio by Realtek® ALC887
- Ports:
4x USB 2.0 Ports ( 2 Front, 2 Rear )
4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: G4900 - 3.1GHz Intel Celeron CPU - Dual Core, 2MB Cache, UHD Graphics 610 (54W) (ERM) - or Better
- Memory: 8GB DDR4 2666MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 90w output, 12v input DC-DC Power Supply - AC Adapter Included
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MiniITX
- Supported CPU
- Number of Processors: 1
- Processor Type: 8th and 9th Gen Core i7/i5/i3 (LGA1151)
- Chipset
- Chipset: Intel H310 Chipset
- Memory
- Memory Type: DDR4 2400MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 32GB
- On Board Audio
- Audio Type: 8-Channel HD Audio by Realtek® ALC887
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: DVI-I + HDMI + DisplayPort
- DVI-I Out: 1
- Display Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: GB (10/100/1000)
- LAN Chipset: Intel® i219V
- Wireless LAN: Integrated Intel® 802.11ac WiFi Module + Bluetooth 4.2 - Removable Under Networking Section
- Drive Interface
- SATA III Ports (6GB): 4
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- M.2 SATA SSD
- 2280 - 22 mm x 80 mm.

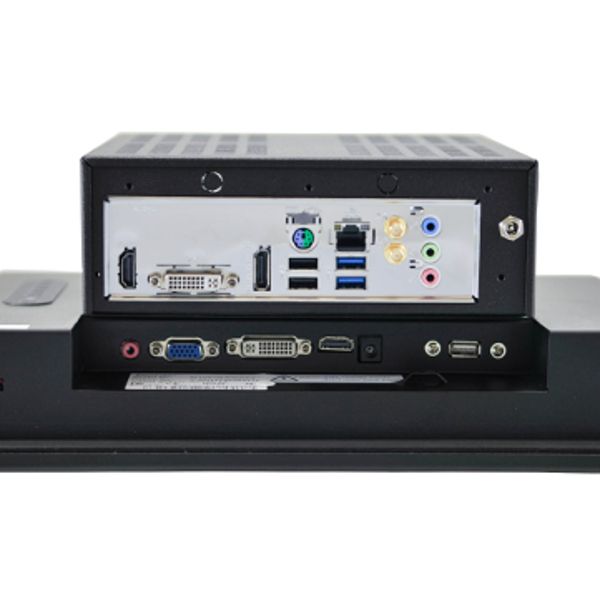

- Rear IO
- PS/2 Combo (Mouse/Keyboard)
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.2 Gen 1 Ports (on Headers): 2
- FAN Connectors: 2
- Audio on Headers
- Chassis Intrusion
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 IoT Value
- Windows 10 IoT Ent
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- LINUX Ubuntu Desktop
- LINUX Ubuntu Workstation
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Other Features: - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)* - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) *Supports NVMe SSD as boot disks 1 x M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s)** *If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
- Motherboard Warranty: 1 Year
Display Specifications
- Display
- Screen Size (inches): 19
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 16:9
- Native Display Resolution: 1366 x 768
- Brightness (nits): 250
- Screen Refresh Rate: 60Hz
- Display Area (H): 409.80mm
- Display Area (V): 230.40mm
- Aspect Ratio: 16:9
- DisplayColors: 16.7 M
- Contrast Ratio: 1000:1
- Backlight: LED
- Viewing Angle(U) : 80
- Viewing Angle(D) : 80
- Viewing Angle(L) : 85
- Viewing Angle(R) : 85
- Connectivity
- VGA Port In: 1
- DVI-I In: 1
- HDMI In: 1
- Touchscreen Interface USB Port (Front): 1
- Mounting Options
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):
- Physical
- Width:
- Height:
- Depth:
- Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
- Unboxed Weight: 14lbs
- Shipping Weight: 40lbs
- Environmental
- MTBF: 30000hours
- Maximum Operating Temperature: 50C
- High Humidity: 90%
- Low Humidity: 8%
- Storage Temp (High): 60C
- Storage Temp (Low): -10C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 8%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 12Watts
- Warranty
- Warranty: 1 year
- Other
- Features:
Industrial Display
- Screen Size: 18.5"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 1366 x 768
- Brightness (nits): 250
Chassis Specifications:
- General
- Form Factor: Micro PC
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Mini ITX
- Expansion
- Internal 2.5" Bays: 1
- Serial Port Punchouts: 2
- Parallel Port Punchouts: 1
- Antennae Punchout: 2
- Front Ports
- USB 2.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 1
- Physical
- Depth: 8.27"
- Depth (Inches): 8.27
- Width: 7.60"
- Height: 2.60"
- Shipping Box - Depth: 13"
- Shipping Box - Width: 9"
- Shipping Box - Height: 5"
- Shipping Weight: 8lbs
- Other Features
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: AC/DC Power Adapter Included
