SL-PPC-22A-N2930-1LAN-AC
22" Fanless HMI Panel PC with InfraRed Touch Screen Long Production Cycle Motherboard (Through Q1 2029) with Intel Celeron SoC, Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W, 1x 1GbE (10/100/1000) LAN, WIFI,Up to 8GB RAM, 2x USB 2.0 Ports ( 2 Rear ), 1x USB 3.2 Gen 1 Port( 1 Front ), 1680 x 1050 resolution, Power Supply 9V - 24V DC In Jack.
Type:
- Fanless Panel PC
- Screen:
- 22" InfraRed, Native Resolution: 1680 x 1050, Front Panel Rating: IP65 / NEMA4
- Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
- Long Production Cycle Motherboard (Through Q1 2029)
- LAN: 1x Ports (1GbE (10/100/1000))
- WiFi: Wireless AC
- Video: HDMI
- Audio: Onboard Audio
- Ports:
2x USB 2.0 Ports ( 2 Rear )
1x USB 3.2 Gen 1 Port( 1 Front )
See specifications for more ports - Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF)
Also Included:
- Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
- Hard Drive: 256GB mSATA SSD SATA 6.0Gb/s, 550/500MB/s read/write (or greater)
- Power Supply: 9V - 24V DC In Jack
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: NUC (101x101 mm)
- Long Production Cycle
- Long Life: YES
- EOL Date: Q1 2029
- Fanless
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
- Chipset
- Chipset: Intel Celeron SoC
- Memory
- Memory Type: SO DIMM DDR3 1333MHz
- Memory Type: Non-ECC
- DIMMS: 1
- Maximum Memory: 8GB
- On Board Audio
- Audio Type: Onboard Audio
- On Board Video
- Video Chipset: Supported by CPU - see Embedded CPU Information
- Video on IO: HDMI
- HDMI Out: 2
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Intel® 82574L
- Wireless LAN: Wireless AC
- Expansion Slots
- mSATA
- half and/or full size mini PCIe card: full size
- M.2 Slot Specs

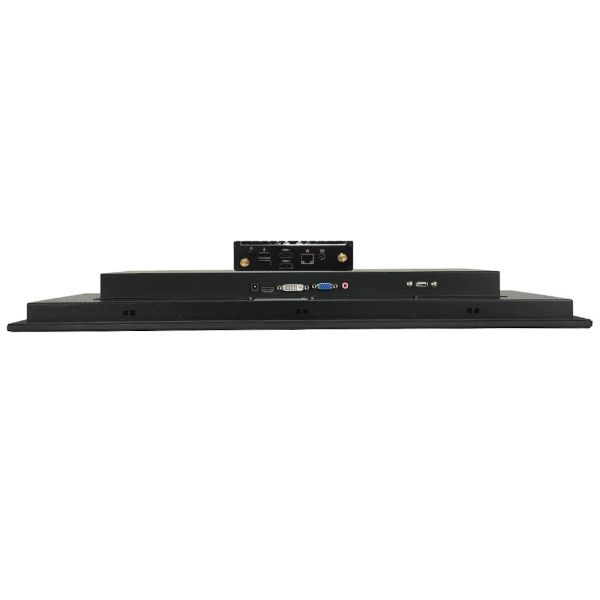

- Rear IO
- USB 2.0 Ports (on IO): 2
- Headers
- USB 3.2 Gen 1 Ports (on Headers): 1
- Environmental
- Operating Temperature: 0ºC to 35ºC (32ºF to 95ºF )
- High Humidity: 95%
- Low Humidity: 10%
- Operating System Support
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- Windows 7 PRO (FES) DGS 32-BIT
- Windows 7 PRO (FES) DGS 64-BIT
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 10 IoT 2021 LTSC Entry
- SL-Windows 11PRO to 10PRO 32bit
- SL-Windows 11PRO to 10PRO 64bit
- LINUX Ubuntu Desktop
- Compliance of Component
- CE
- RoHS
- FCC
- Warranty of Component
- Motherboard Warranty: 1 Year

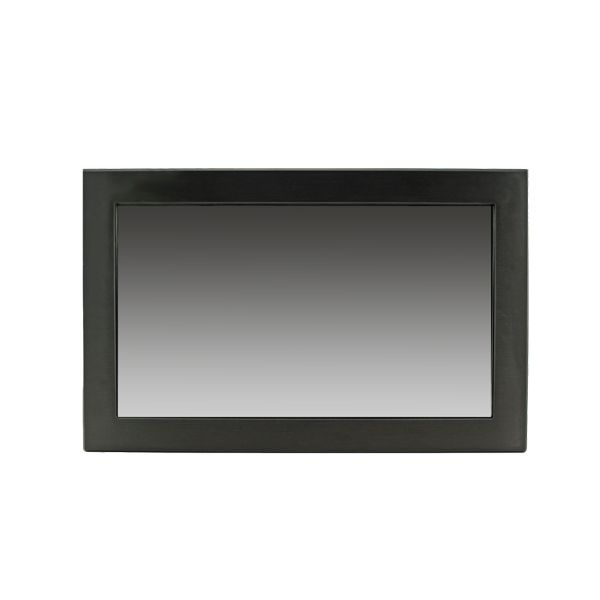

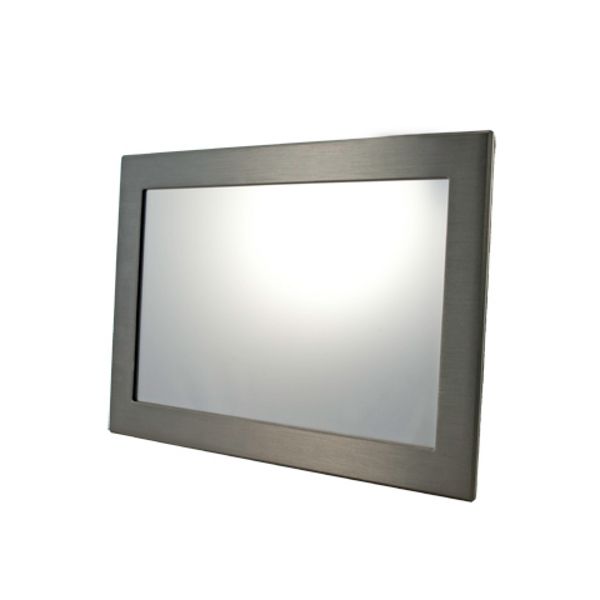

Display Specifications
- Display
- Screen Size (inches): 22
- Touch Type: InfraRed
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 16 : 10
- Native Display Resolution: 1680 x 1050
- Brightness (nits): 300
- Screen Refresh Rate: 60Hz
- Display Area (H): 473.76mm
- Display Area (V): 296.10mm
- Aspect Ratio: 16 : 10
- DisplayColors: 16.7 M
- Contrast Ratio: 1000:1
- Backlight: LED
- Viewing Angle(U) : 85
- Viewing Angle(D) : 85
- Viewing Angle(L) : 80
- Viewing Angle(R) : 80
- Connectivity
- VGA Port In: 1
- DVI-I In: 1
- HDMI In: 1
- Touchscreen Interface USB Port (Front): 1
- Mounting Options
- Mounting Options: Bezel Mounting Hardware Included, Other options sold separately
- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):
- Physical
- Width:
- Height:
- Depth:
- Depth (Inches): Click Available Downloads Tab
- Unboxed Weight: 20lbs
- Shipping Weight: 45lbs
- Environmental
- MTBF: 30000hours
- Maximum Operating Temperature: 50C
- High Humidity: 90%
- Low Humidity: 8%
- Storage Temp (High): 60C
- Storage Temp (Low): -10C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 8%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 19Watts
- Compliance of Component
- CE
- RoHS
- FCC
- Warranty
- Warranty: 1 year
- Other
- Features:
Industrial Display
- Screen Size: 22"
- Touch Type: InfraRed
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 1680 x 1050
- Brightness (nits): 300
Chassis Specifications:
- General
- Form Factor: NUC Box
- Front Facing I/O
- Color: Black
- Material: Steel & Plastic
- Material Thickness: 1mm

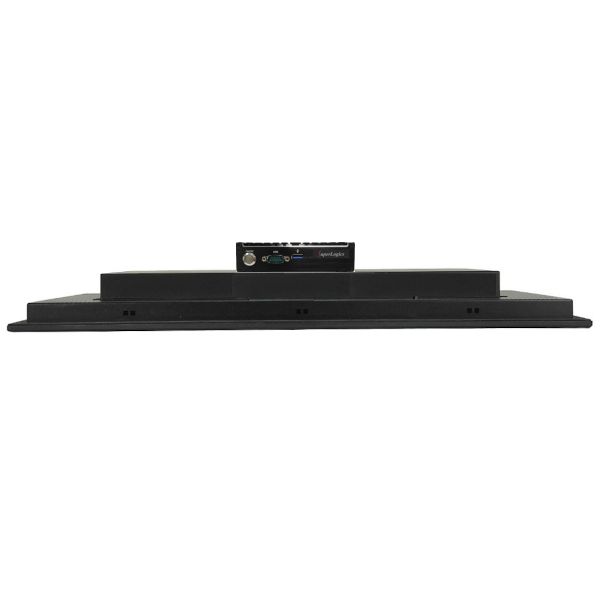

- Front Ports
- USB 3.2 Ports (Front): 1
- RS232 COM Ports (Front): 1
- Physical
- Depth: 109mm
- Depth (Inches): 4.295
- Width: 129mm
- Height: 34mm
- Shipping Box - Depth:
- Shipping Box - Width:
- Shipping Box - Height:
- Shipping Weight:
- Power
- Built-in Chassis Power Supply: 9V - 24V DC In Jack
SL-LCD-22A-IRTOUCH-2
