SL-1U-AB660M-LG

Name: SL-1U-AB660M-LG
SKU: SL-1U-AB660M-LG

1U Rack Mount Industrial PC - Rackmount featuring Intel B660 Chipset, 12th Gen Core, Pentium Gold and Celeron (LGA1700), 1x 1GbE (10/100/1000) LAN, 1x Serial, Up to 64GB RAM, 5x USB 2.0 Ports ( 2 Front, 2 Rear, 1 Internal Headers ), 5x USB 3.2 Gen 1 Ports ( 3 Rear, 2 Internal Headers ), 1x USB 3.2 Gen 1 Type-C Port (Rear), Power Supply 200W ATX12V Power Supply.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

1U Rack Mount Industrial PC
Depth: 14", Max Card Depth: 12.28"

Motherboard:

Featuring Intel B660 Chipset and 12th Gen Core, Pentium Gold and Celeron (LGA1700) processor
Full Height Slots:
LAN: 1x Ports (1GbE (10/100/1000))
Video: VGA + DisplayPort + HDMI
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Ports:
5x USB 2.0 Ports ( 2 Front, 2 Rear, 1 Internal Headers )
5x USB 3.2 Gen 1 Ports ( 3 Rear, 2 Internal Headers )
1x USB 3.2 Gen 1 Type-C Port (Rear)
1x COM Port (RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF)

Also Included:

Processor: G7400- 3.70GHz Intel Pentium Gold CPU - Dual Core, 6MB Cache, UHD Graphics 710 (Base 46W) (ERM)
Memory: 8GB DDR4 3200MHz RAM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: 200W ATX12V Power Supply
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MicroATX
Supported CPU
Number of Processors: 1
Processor Type: 12th Gen Core, Pentium Gold and Celeron (LGA1700)
Chipset
Chipset: Intel B660 Chipset
Memory
Memory Type: DDR4 2666MHz
Memory Type: Non-ECC
DIMMS: 2
Maximum Memory: 64GB
On Board Audio
Audio Type: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: VGA + DisplayPort + HDMI
VGA Port Out: 1
Display Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 1
LAN Type: 1GbE (10/100/1000)
LAN Chipset: Intel® i219V
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 4
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
PCIe Signal
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
M.2 SATA SSD
PCIe Signal
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.

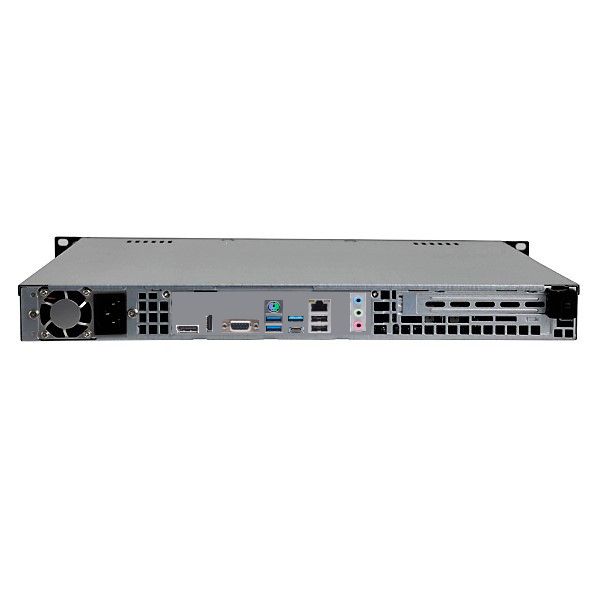

Rear IO
PS/2 Combo (Mouse/Keyboard)
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 1 Type A Ports (on IO): 3
USB 3.2 Gen 1 Type C Ports (on I/O): 1
Audio on IO
Headers
USB 2.0 Ports (on Headers): 3
USB 3.2 Gen 1 Ports (on Headers): 2
Serial (via Headers): 1
FAN Connectors: 4
Audio on Headers
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF )
High Humidity: 90%
Low Humidity: 5%
Operating System Support
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT Value 2019 LTSC
Windows 10 IoT Ent 2019 LTSC
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC Value
Windows 11 IoT 2024 LTSC High End
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
CE
FCC
Other Features
Features:
Note:
- - 1 x PCIe Gen4x16 Slot*
  - 2 x PCIe Gen3x1 Slots
  - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode**
  - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes**
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year
