SL-1U-PD-AH110I-GC This item is no longer available.
1U Rack Mount Industrial PC - Rackmount featuring Intel H110 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 1x 1GbE (10/100/1000) LAN, Up to 32GB RAM, 7x USB 2.0 Ports ( 2 Front, 4 Rear, 1 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), .
Type:
- 1U Rack Mount Industrial PC
- Depth: 11", Max Card Depth: 6.5 inches"
Motherboard:
- Featuring Intel H110 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
- LAN: 1x Ports (1GbE (10/100/1000))
- Video: DVI-D + HDMI
- Audio: 7.1+2 Channel HD Audio by Realtek ALC892
- Ports:
7x USB 2.0 Ports ( 2 Front, 4 Rear, 1 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
- Memory: 8GB DDR4 2666MHz RAM
- Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
- Power Supply: 150W 1U Flex ATX Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

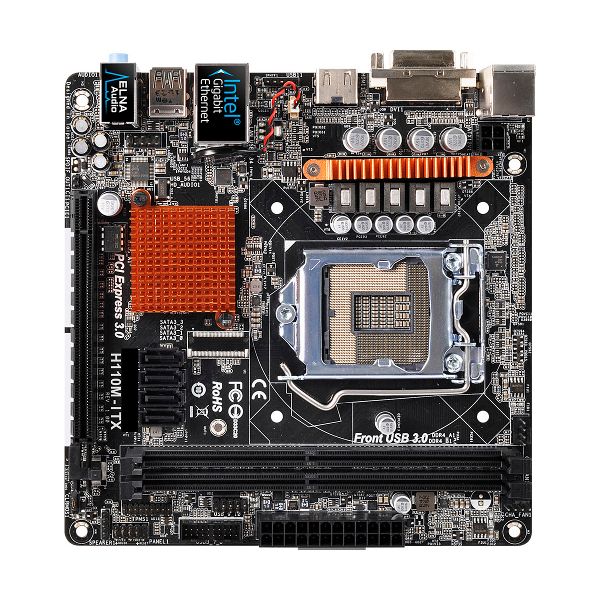

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MiniITX
- Supported CPU
- Number of Processors: 1
- Processor Type: 7th and 6th Gen Core i7/i5/i3 (LGA1151)
- Chipset
- Chipset: Intel H110 Chipset
- Memory
- Memory Type: DDR4 2133MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 32GB
- On Board Audio
- Audio Type: 7.1+2 Channel HD Audio by Realtek ALC892
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: DVI-D + HDMI
- DVI-D Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Intel® i219V
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 4
- Rear IO
- PS/2 Combo (Mouse/Keyboard)
- USB 2.0 Ports (on IO): 4
- USB 3.0 Ports (on IO): 2
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 3
- USB 3.0 Ports (on Headers): 2
- FAN Connectors: 2
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- SL-Windows 10PRO to 7PRO 32-bit
- SL-Windows 10PRO to 7PRO 64-bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (32-bit)
- Windows 8.1 Pro (64-bit)
- Windows Embedded 8 (32-bit)
- Windows Embedded 8 (64-bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Value
- Windows 10 IoT Ent
- LINUX Ubuntu Desktop
- Compliance of Component
- CE
- FCC
- Other Features
- Other Features:
1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 1U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Mini ITX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 1
- Max Card Depth: 6.5 inches"
- Internal 2.5" Bays: 2
- Front Ports
- USB 2.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 2
- Included Fans: 2
- Physical
- Depth: 11"
- Depth (Inches): 11
- Width: 19.10"
- Height: 1.75"
- Shipping Box - Depth: 22"
- Shipping Box - Width: 15"
- Shipping Box - Height: 5"
- Shipping Weight: 15lbs
- Other Features
- Chassis Warranty: 1 Year
