SL-2U-AB660M-GD

A newer version of this item is available: SL-2U-AB760M-GD

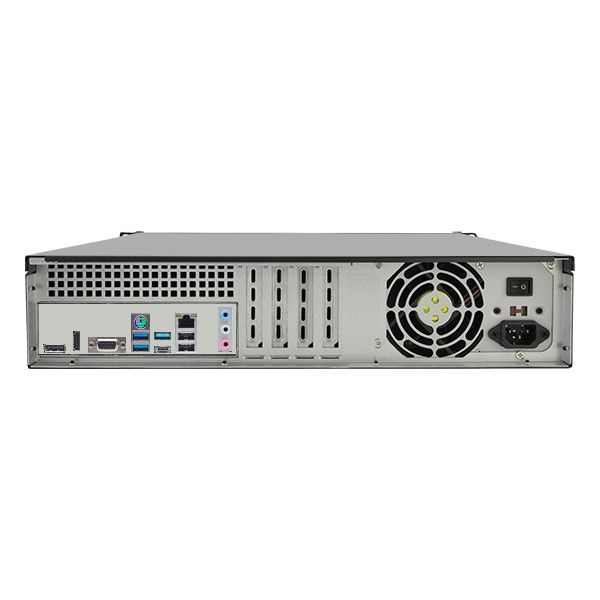

2U Rack Mount Industrial PC - Rackmount featuring Intel B660 Chipset, 12th Gen Core, Pentium Gold and Celeron (LGA1700), 1x 1GbE (10/100/1000) LAN, 1x Serial, Up to 64GB RAM, 5x USB 2.0 Ports ( 2 Front, 2 Rear, 1 Internal Headers ), 5x USB 3.2 Gen 1 Ports ( 3 Rear, 2 Internal Headers ), 1x USB 3.2 Gen 1 Type-C Port (Rear), 3x Expansion Slots.



Type:

  • 2U Rack Mount Industrial PC
  • Depth: 15.35", Max Card Depth: 9.00"

Motherboard:

  • Featuring Intel B660 Chipset and 12th Gen Core, Pentium Gold and Celeron (LGA1700) processor
  • Low Profile Slots:
    1 - PCIe x16
    2 - PCIe x1
  • LAN: 1x Ports (1GbE (10/100/1000))
  • RAID: 0,1,5,10
  • Video: VGA + DisplayPort + HDMI
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Ports:
    5x USB 2.0 Ports ( 2 Front, 2 Rear, 1 Internal Headers )
    5x USB 3.2 Gen 1 Ports ( 3 Rear, 2 Internal Headers )
    1x USB 3.2 Gen 1 Type-C Port (Rear)
    1x COM Port (RS232 Internal Headers)
    See specifications for more ports
  • Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF)

Also Included:

  • Processor: G7400- 3.70GHz Intel Pentium Gold CPU - Dual Core, 6MB Cache, UHD Graphics 710 (Base 46W) (ERM) - Upgradeable
  • Memory: 8GB DDR4 3200MHz RAM - Upgradeable
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980 - Upgradeable
  • Power Supply: 400W Power Supply - Upgradeable
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty - Upgradeable
Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.
