SL-2U-AH370A-DB This item is no longer available.
2U Rack Mount Industrial PC - Rackmount featuring Intel H370 Chipset, 8th and 9th Gen Core i7/i5/i3 (LGA1151), 1x 1GbE (10/100/1000) LAN, 1x Serial, Up to 64GB RAM, 4x USB 2.0 Ports ( 2 Rear, 2 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear, 2 Internal Headers ), 1x USB 3.2 Gen 2 Port ( 1 Rear ), 1x USB 3.2 Gen 1 Type-C Port (Rear), 1x USB 3.2 Gen 2 Type-C Port ( 1 Rear ), .
Type:
- 2U Rack Mount Industrial PC
- Depth: 17", Max Card Depth: 9 inches"
Motherboard:
- Featuring Intel H370 Chipset and 8th and 9th Gen Core i7/i5/i3 (LGA1151) processor
- LAN: 1x Ports (1GbE (10/100/1000))
- RAID: 0,1,5,10
- Video: VGA + DVI-D + HDMI
- Audio: 7.1+2 Channel HD Audio by Realtek ALC892
- Ports:
4x USB 2.0 Ports ( 2 Rear, 2 Internal Headers )
6x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear, 2 Internal Headers )
1x USB 3.2 Gen 2 Port ( 1 Rear )
1x USB 3.2 Gen 1 Type-C Port (Rear)
1x USB 3.2 Gen 2 Type-C Port ( 1 Rear )
1x COM Port (RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: G4900 - 3.1GHz Intel Celeron CPU - Dual Core, 2MB Cache, UHD Graphics 610 (54W) (ERM) - or Better
- Memory: 4GB DDR4 2666MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 400W Full Range Input 1U Power Supply - Active PFC
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: ATX
- Supported CPU
- Number of Processors: 1
- Processor Type: 8th and 9th Gen Core i7/i5/i3 (LGA1151)
- Chipset
- Chipset: Intel H370 Chipset
- Memory
- Memory Type: DDR4 2666MHz
- Memory Type: Non-ECC
- DIMMS: 4
- Maximum Memory: 64GB
- On Board Audio
- Audio Type: 7.1+2 Channel HD Audio by Realtek ALC892
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: VGA + DVI-D + HDMI
- VGA Port Out: 1
- DVI-D Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Intel® i219V
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 6
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 2
- M.2 Slot #1 Specs
- M.2 SATA SSD
- PCIe Signal
- 2230 - 22 mm x 30 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- M.2 Slot #2 Specs
- M.2 SATA SSD
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2230 - 22 mm x 30 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.

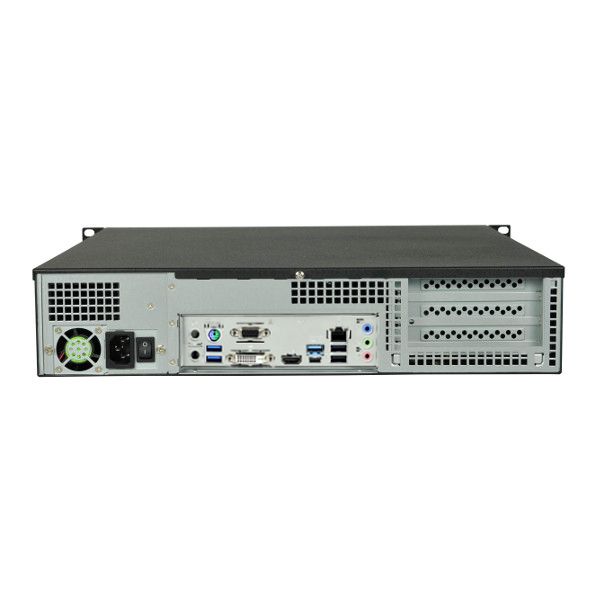

- Rear IO
- PS/2 Combo (Mouse/Keyboard)
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- USB 3.2 Gen 2 Type A Ports (on IO): 1
- USB 3.2 Gen 1 Type C Ports (on I/O): 1
- USB 3.2 Gen 2 Type C Ports (on I/O): 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.2 Gen 1 Ports (on Headers): 4
- Serial (via Headers): 1
- FAN Connectors: 4
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Value
- Windows 10 IoT Ent
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Other Features:
- 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x16 (PCIE2) / x4 (PCIE4))*
- 3 x PCI Express 3.0 x1 Slots (Flexible PCIe)
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT)*If PCIE3 or PCIE5 is occupied, PCIE4 will downgrade to x2 mode.
Supports NVMe SSD as boot disks*If M2_1 is occupied by a SATA-type M.2 device, SATA3_5 will be disabled.
If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
If M2_2 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled.* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 2U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: ATX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 3
- Max Card Depth: 9 inches"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 3
- External 3.5" Bays: 1
- Front Ports
- USB 3.2 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 3
- Included Fans: 3
- Physical
- Depth: 17"
- Depth (Inches): 17
- Width: 19"
- Height: 3.50"
- Shipping Box - Depth: 24"
- Shipping Box - Width: 23"
- Shipping Box - Height: 8"
- Shipping Weight: 31lbs
- Compliance of Component
- RoHS
- Other Features
- Chassis Warranty: 1 Year
