SL-2U-H81M-GD This item is no longer available.

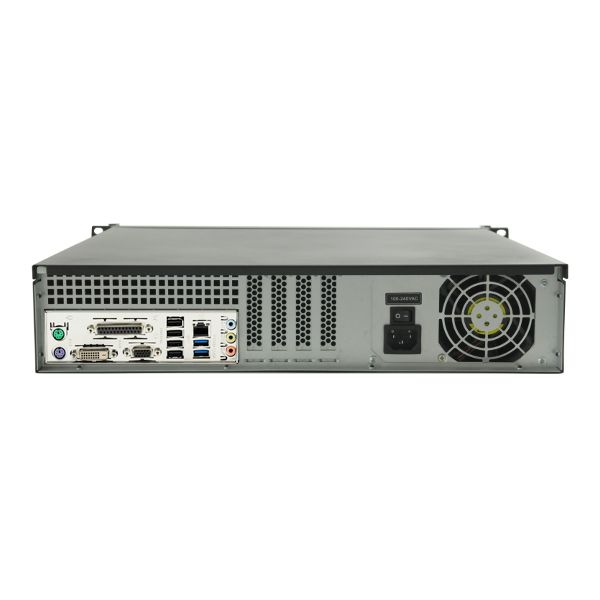

2U Rack Mount Industrial PC - Rackmount featuring Intel H81 Chipset, 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell'), 1x 1GbE (10/100/1000) LAN, 1x Serial, Up to 16GB RAM, 8x USB 2.0 Ports ( 2 Front, 4 Rear, 2 Internal Headers ), 2x USB 3.2 Gen 1 Ports ( 2 Rear ), 4x Expansion Slots.
Type:
- 2U Rack Mount Industrial PC
- Depth: 15.35", Max Card Depth: 9.00"
Motherboard:
- Featuring Intel H81 Chipset and 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell') processor
- Low Profile Slots:
1 - PCIe x16
2 - PCIe x1
1 - PCI - LAN: 1x Ports (1GbE (10/100/1000))
- Video: VGA + DVI-D
- Audio: 7.1 Channel HD Audio by Realtek ALC887-VD2
- Ports:
8x USB 2.0 Ports ( 2 Front, 4 Rear, 2 Internal Headers )
2x USB 3.2 Gen 1 Ports ( 2 Rear )
1x COM Port (RS232 Internal Headers)
1x Parallel Port (Rear)
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM)
- Memory: 4GB DDR3 1600MHz RAM
- Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

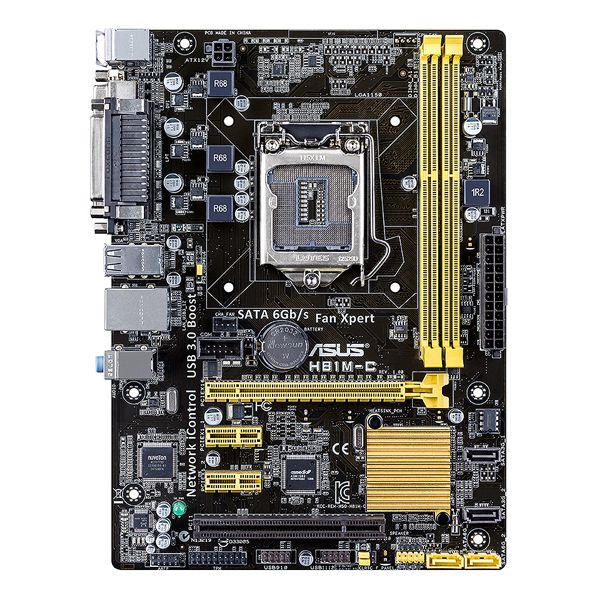

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MicroATX
- Supported CPU
- Number of Processors: 1
- Processor Type: 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell')
- Chipset
- Chipset: Intel H81 Chipset
- Memory
- Memory Type: DDR3 1600MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 16GB
- On Board Audio
- Audio Type: 7.1 Channel HD Audio by Realtek ALC887-VD2
- On Board Video
- Video Chipset: Intel HD Graphics
- Video on IO: VGA + DVI-D
- VGA Port Out: 1
- DVI-D Out: 1
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Realtek® RTL8111G
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA II Ports (3GB): 2
- SATA III Ports (6GB): 2
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- PCI Express x1 Slots On Motherboard: 2
- PCI Slots (Conventional 32-Bit): 1

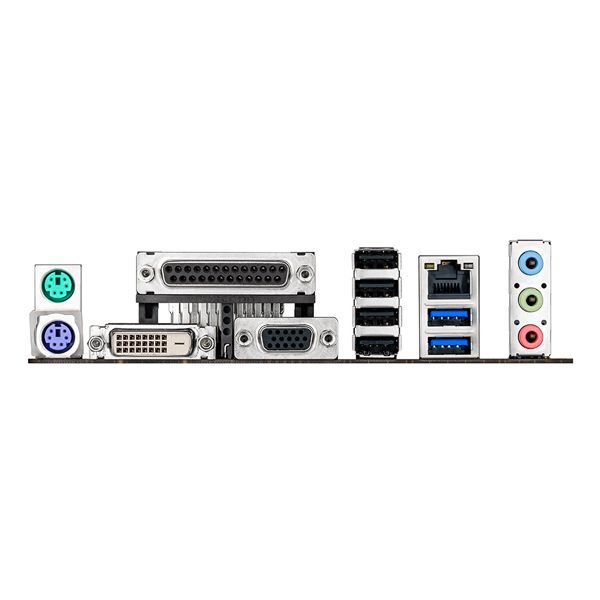

- Rear IO
- PS/2 Mouse on IO
- PS/2 Keyboard on IO
- USB 2.0 Ports (on IO): 4
- USB 3.0 Ports (on IO): 2
- Parallel Ports: 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 4
- Serial (via Headers): 1
- FAN Connectors: 2
- Audio on Headers
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 64-Bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (32-bit)
- Windows 8.1 Pro (64-bit)
- Windows Embedded 8 (32-bit)
- Windows Embedded 8 (64-bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (32 Bit)
- Windows 10 Pro (64-Bit)
- LINUX Ubuntu Desktop
- LINUX Ubuntu Workstation
- Ubuntu Server Edition
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 2U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Micro ATX
- Slide Rails: Optional
- Expansion
- Low Profile Slots: 4
- Max Card Depth: 9.00"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 4
- Front Ports
- USB 2.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 2
- Included Fans: 1
- Physical
- Depth: 15.35"
- Depth (Inches): 15.35
- Width: 19"
- Height: 3.50"
- Shipping Box - Depth: 22"
- Shipping Box - Width: 21"
- Shipping Box - Height: 7"
- Shipping Weight: 25lbs
- Other Features
- Chassis Warranty: 1 Year
