SL-2U-MZ490A-DF This item is no longer available.
2U Rack Mount Industrial PC - Rackmount featuring Intel Z490 Chipset, 10th Gen Core i7/i5/i3 (LGA1200), 1x 2.5GbE (10/100/1000/2500) LAN, 1x Serial, Up to 128GB RAM, 6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear, 2 Internal Headers ), 1x USB 3.2 Gen 2 Port ( 1 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Rear ), 5x Expansion Slots.
Type:
- 2U Rack Mount Industrial PC
- Depth: 17", Max Card Depth: 9 inches"
Motherboard:
- Featuring Intel Z490 Chipset and 10th Gen Core i7/i5/i3 (LGA1200) processor
- Low Profile Slots:
2 - PCIe x16
3 - PCIe x1 - LAN: 1x Ports (2.5GbE (10/100/1000/2500))
- RAID: 0,1,5,10
- Video: DisplayPort + HDMI
- Audio: Realtek® ALC892
- Ports:
6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers )
6x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear, 2 Internal Headers )
1x USB 3.2 Gen 2 Port ( 1 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Rear )
1x COM Port (RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF)
Also Included:
- Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
- Memory: 8GB DDR4 3200MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 400W Full Range Input 1U Power Supply - Active PFC
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: ATX
- Supported CPU
- Number of Processors: 1
- Processor Type: 10th Gen Core i7/i5/i3 (LGA1200)
- Chipset
- Chipset: Intel Z490 Chipset
- Memory
- Memory Type: DDR4 2666MHz
- Memory Type: Non-ECC
- DIMMS: 4
- Maximum Memory: 128GB
- On Board Audio
- Audio Type: Realtek® ALC892
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: DisplayPort + HDMI
- Display Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: 2.5GbE (10/100/1000/2500)
- LAN Chipset: Realtek® RTL8125B
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 6
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 2
- PCI Express x1 Slots On Motherboard: 3
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 2
- M.2 Slot #1 Specs
- M.2 SATA SSD
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- M.2 Slot #2 Specs
- M.2 SATA SSD
- PCIe Signal
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.

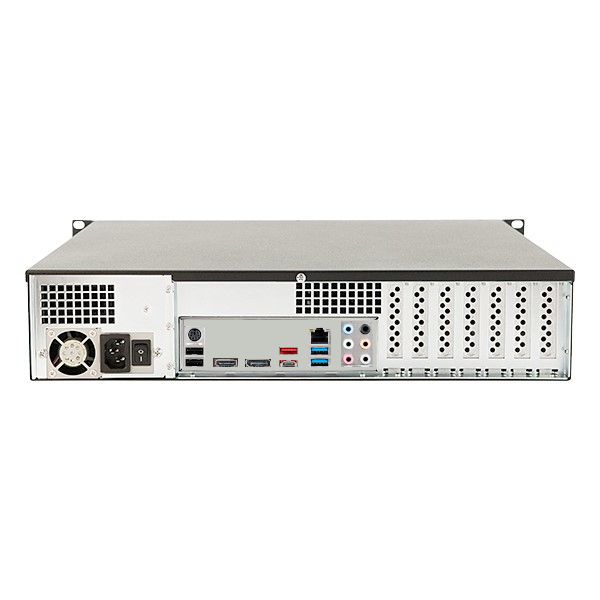

- Rear IO
- PS/2 Combo (Mouse/Keyboard)
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- USB 3.2 Gen 2 Type A Ports (on IO): 1
- USB 3.2 Gen 2 Type C Ports (on I/O): 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 4
- USB 3.2 Gen 1 Ports (on Headers): 4
- Thunderbolt 3 via Header: 1
- Serial (via Headers): 1
- FAN Connectors: 7
- Audio on Headers
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 5ºC to 50ºC (41ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- FCC
- Other Features
- Other Features:
Note:
- 1x PCIe 3.0 x16 slot (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU - 1x PCIe 3.0 x16 slot (from chipset, supports x4 mode)
- 3x PCIe x1 slots (from chipset)
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- 1x PCIe 3.0 x16 slot (from CPU)
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 2U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: ATX
- Slide Rails: Optional
- Expansion
- Low Profile Slots: 7
- Max Card Depth: 9 inches"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 3
- External 3.5" Bays: 1
- Front Ports
- USB 3.2 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 3
- Included Fans: 3
- Physical
- Depth: 17"
- Depth (Inches): 17
- Width: 19"
- Height: 3.50"
- Shipping Box - Depth: 24"
- Shipping Box - Width: 23"
- Shipping Box - Height: 8"
- Shipping Weight: 28lbs
- Compliance of Component
- RoHS
- Other Features
- Chassis Warranty: 1 Year
