SL-3U-PD-C7H170M-GK This item is no longer available.
3U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q3 2022) with Intel H170 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 1x GB (10/100/1000) LAN, 1x Serial, Up to 64GB RAM, 4x USB 2.0 Ports ( 2 Front, 2 Rear ), 6x USB 3.2 Gen 1 Ports ( 4 Rear, 2 Internal Headers ), 3x Expansion Slots.
Type:
- 3U Rack Mount Industrial PC
- Depth: 15.35", Max Card Depth: 8.5"
Motherboard:
- Featuring Intel H170 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
- Long Production Cycle Motherboard (Through Q3 2022)
- Full Height Slots:
1 - PCIe x16
1 - PCIe x4
1 - PCIe x1 - LAN: 1x Ports (GB (10/100/1000))
- RAID: 0,1,5,10
- Video: DVI-D + HDMI + DisplyPort
- Audio: Realtek® ALC1150
- Ports:
4x USB 2.0 Ports ( 2 Front, 2 Rear )
6x USB 3.2 Gen 1 Ports ( 4 Rear, 2 Internal Headers )
1x COM Port (RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
- Memory: 8GB DDR4 2666MHz RAM
- Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MicroATX
- Long Production Cycle
- Long Life: YES
- EOL Date: Q3 2022
- Supported CPU
- Number of Processors: 1
- Processor Type: 7th and 6th Gen Core i7/i5/i3 (LGA1151)
- Chipset
- Chipset: Intel H170 Chipset
- Memory
- Memory Type: DDR4 2133MHz
- Memory Type: Non-ECC
- DIMMS: 4
- Maximum Memory: 64GB
- On Board Audio
- Audio Type: Realtek® ALC1150
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: DVI-D + HDMI + DisplyPort
- DVI-D Out: 1
- Display Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: GB (10/100/1000)
- LAN Chipset: Intel® i219V
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 6
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- PCI Express x4 Slots On Motherboard: 1
- PCI Express x1 Slots On Motherboard: 1
- Mini PCIe
- half and/or full size mini PCIe card: full size
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.

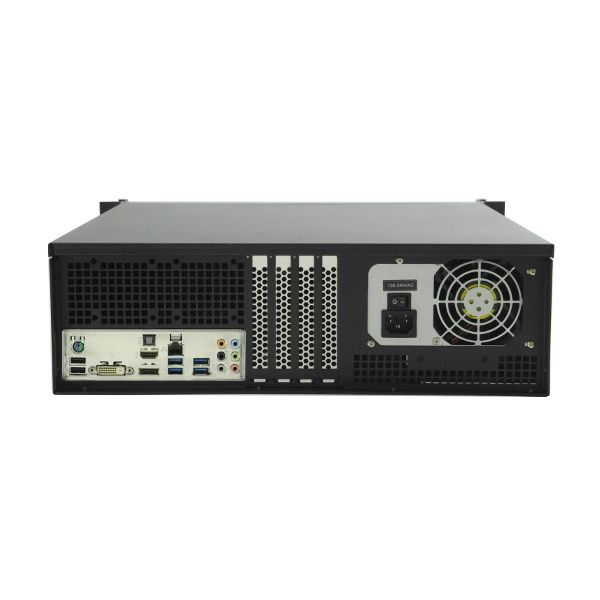

- Rear IO
- USB 2.0 Ports (on IO): 2
- USB 3.0 Ports (on IO): 4
- SPDIF Connector: 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.0 Ports (on Headers): 2
- Serial (via Headers): 1
- Chassis Intrusion
- TPM Support: Via 1.2 Header
- Management Features
- Watch Dog
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- SL-Windows 10PRO to 7PRO 32-bit
- SL-Windows 10PRO to 7PRO 64-bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (64-bit)
- Windows Embedded 8 (64-bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Value
- Windows 10 IoT Ent
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- CCC
- Other Features
- Other Features:
- 1 PCI-E 3.0 x16 Slot x16 Mode,
- 1 PCI-E 3.0 x4 Slot x4 Mode,
- 1 PCI-E 3.0 x1 Slot
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 3U Rackmount
- Color: Black
- Material: Metal/Aluminum
- Material Thickness: 1mm
- Motherboard Compatibility: Micro ATX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 4
- Max Card Depth: 8.5"
- External 5.25" Bays: 2
- Internal 3.5" Bays: 4
- External 3.5" Bays: 1
- Internal 2.5" Bays: 2
- Front Ports
- USB 2.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 4
- Included Fans: 2
- Physical
- Depth: 15.35"
- Depth (Inches): 15.35
- Width: 19.10"
- Height: 5.25"
- Shipping Box - Depth: 22"
- Shipping Box - Width: 21"
- Shipping Box - Height: 9"
- Shipping Weight: 35lbs
- Other Features
- Chassis Warranty: 1 Year
